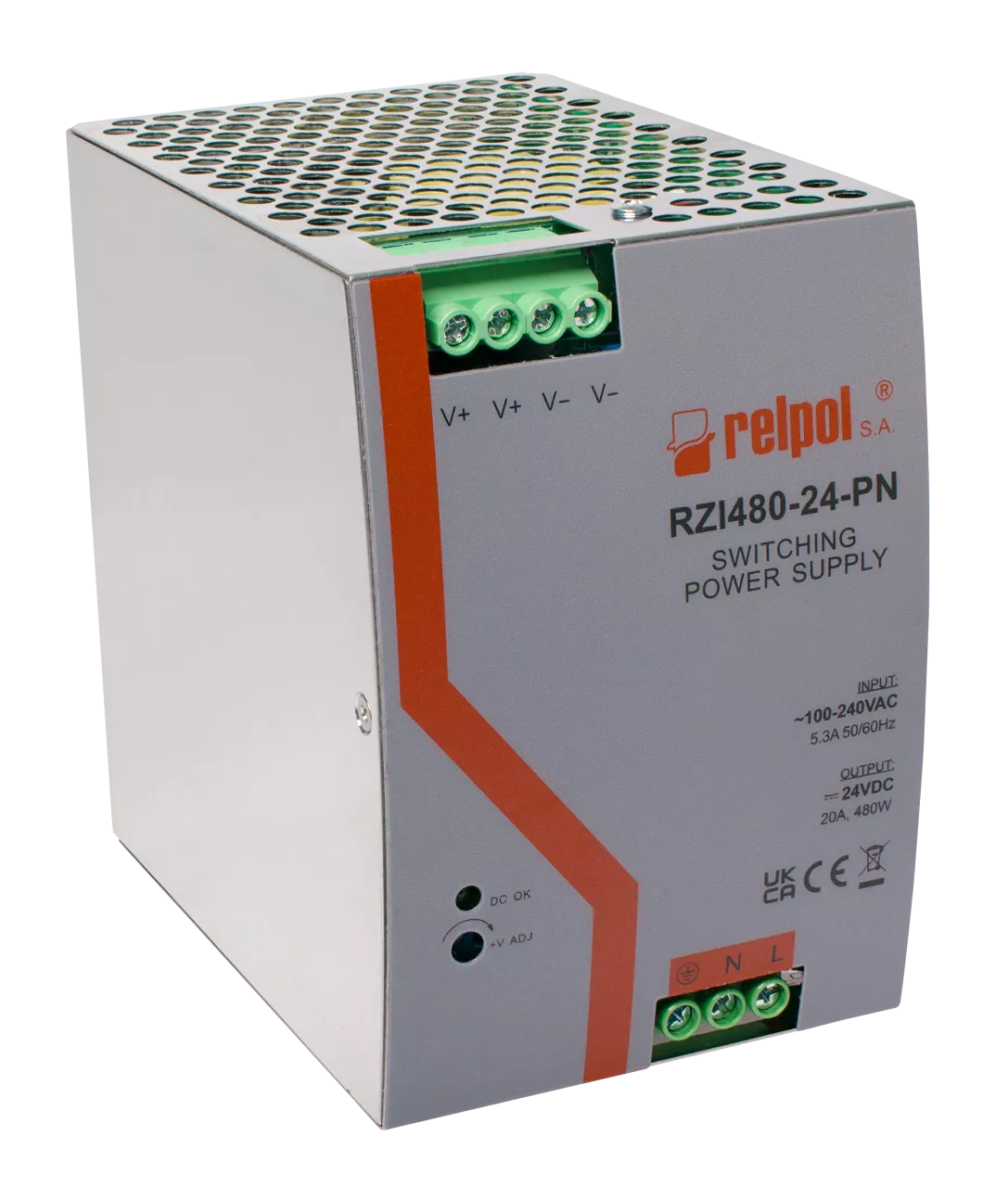

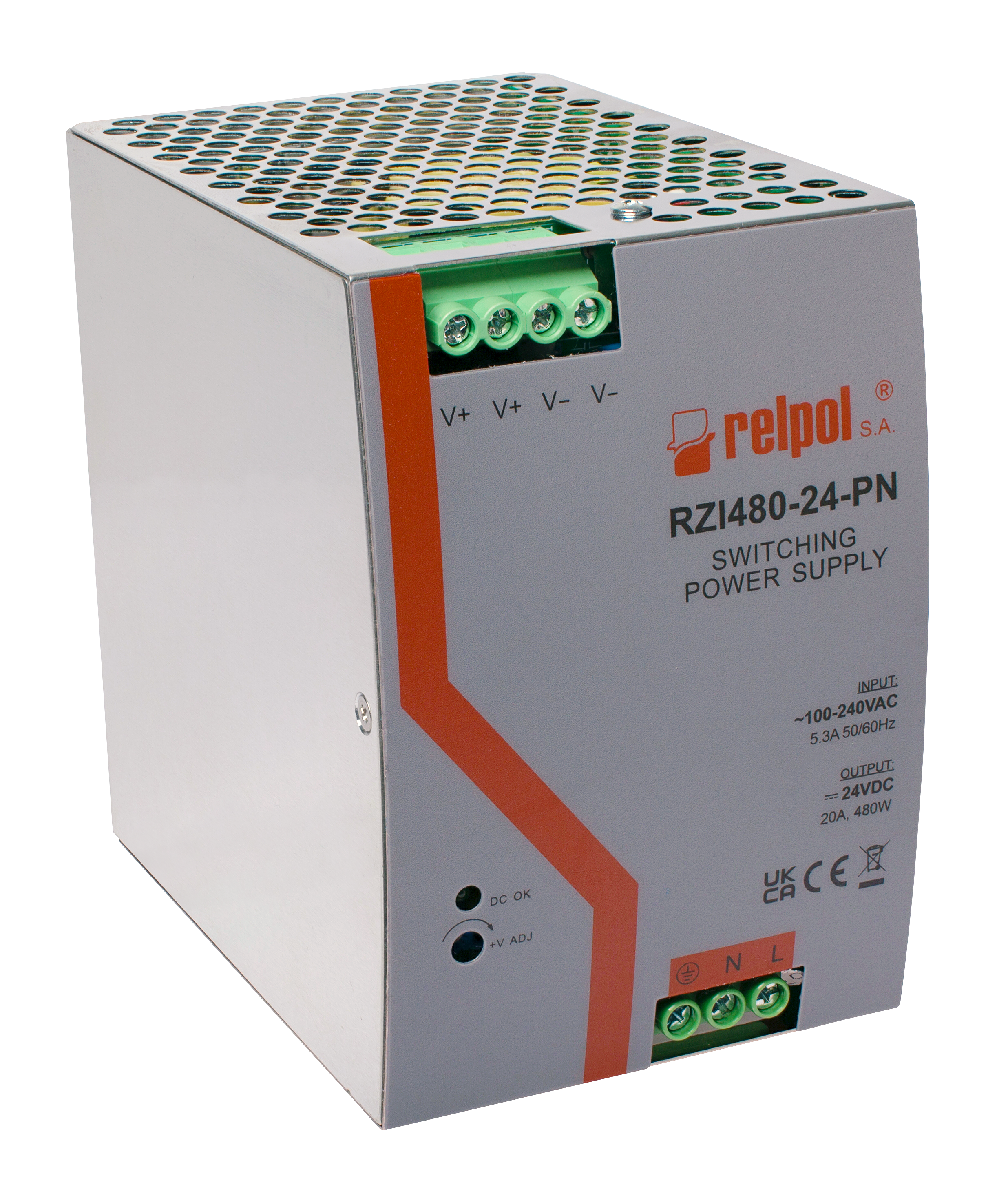

Zasilacz impulsowy RZI480-24-PN
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2616915 |
| GTIN(EAN) | 5900005291517 |
| Price unit | piece |
| Catalog price | 1 060,72 zł (862,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przemysłowy zasilacz impulsowy w kompaktowej metalowej obudowie, bezpośredni montaż na szynie 35mm. Wysoka sprawność >88%. Uniwersalne napięcie zasilania : 90-264VAC (120-375 VDC). Obwód wyjściowy: 24VDC; 20A; Moc 480W. Zabezpieczenia: przepięciowe, przeciążeniowe, temperaturowe. Szerokość: 85,5mm.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,5 kg |
| ETIM class: | AC/DC-power supply |
| 1st secondary output voltage DC: | 24 - 28 V |
| Max. output current 1: | 20 A |
| Secondary voltage adjustable: | yes |
| Rated supply voltage AC 50 Hz: | 100 - 240 V |
| Rated supply voltage DC: | 125 - 250 V |
| Power output: | 480 W |
| Rail mounting possible: | yes |
| Modular version: | yes |
| Width: | 85.5 mm |
| Height: | 129 mm |
| Depth: | 125 mm |
| Degree of protection (IP): | IP20 |
