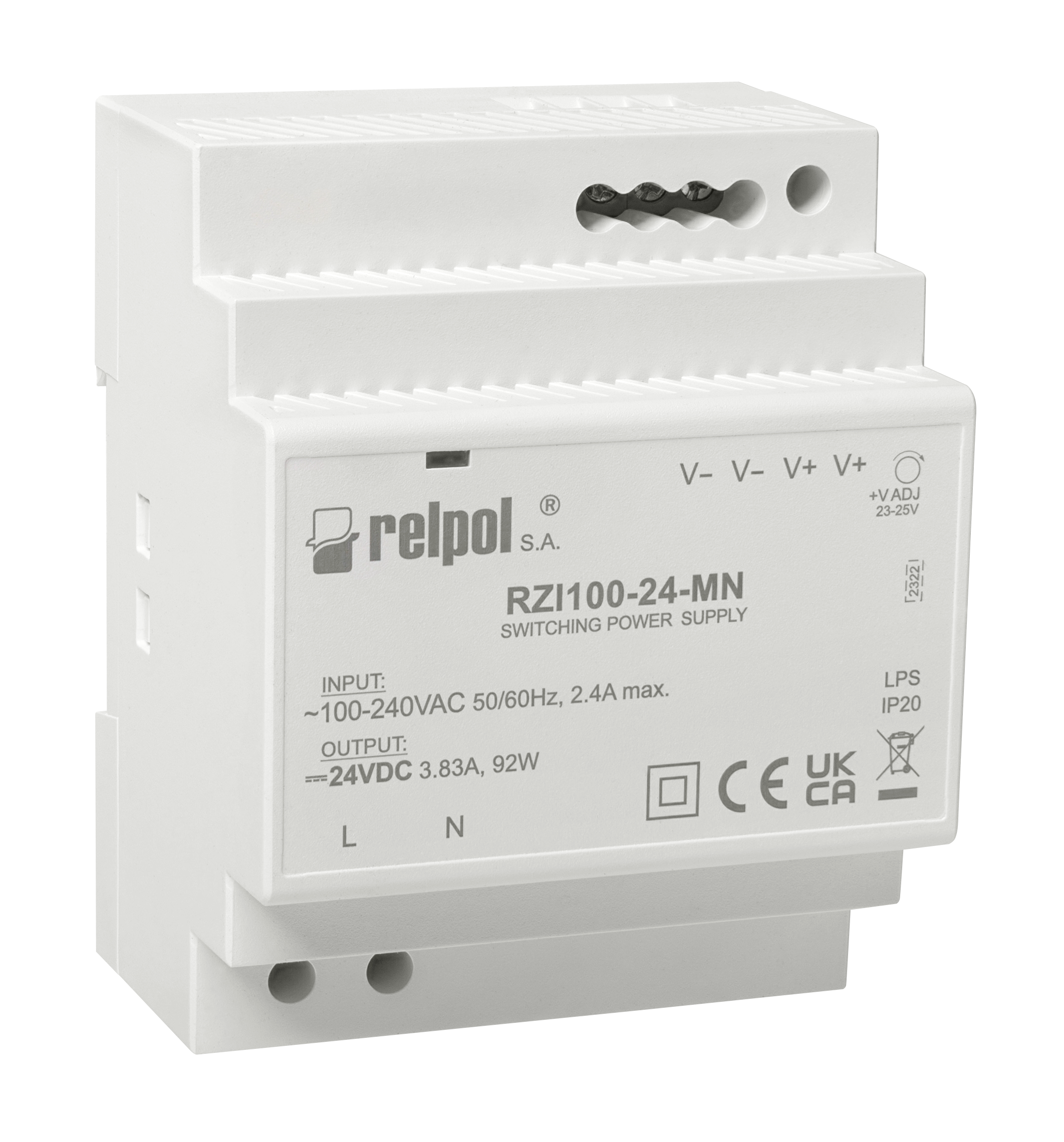

Zasilacz impulsowy RZI100-24-MN
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 2617010 |
GTIN(EAN) | 5900005291210 |
Price unit | piece |
Catalog price | 188,34 zł (153,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zasilacz impulsowy w plastikowej obudowie modułowej, bezpośredni montaż na szynie 35mm. Uniwersalne napięcie zasilania 90-264VAC (125-375VDC). Obwód wyjściowy : 24VDC; 3,83A; Moc 92W. II klasa ochronności. Zabezpieczenia: przepięciowe, przeciążeniowe, temperaturowe. Szerokość: 70,2mm
Additional features:
Information | Value |
---|---|
Net weight: | 270 g |
ETIM class: | AC/DC-power supply |
1st secondary output voltage DC: | 23 - 25 V |
Max. output current 1: | 3.83 A |
Secondary voltage adjustable: | yes |
Rated supply voltage AC 50 Hz: | 100 - 240 V |
Rated supply voltage DC: | 125 - 375 V |
Power output: | 92 W |
Rail mounting possible: | yes |
Modular version: | yes |
Width: | 70.2 mm |
Height: | 58.4 mm |
Depth: | 90 mm |
Degree of protection (IP): | IP20 |
