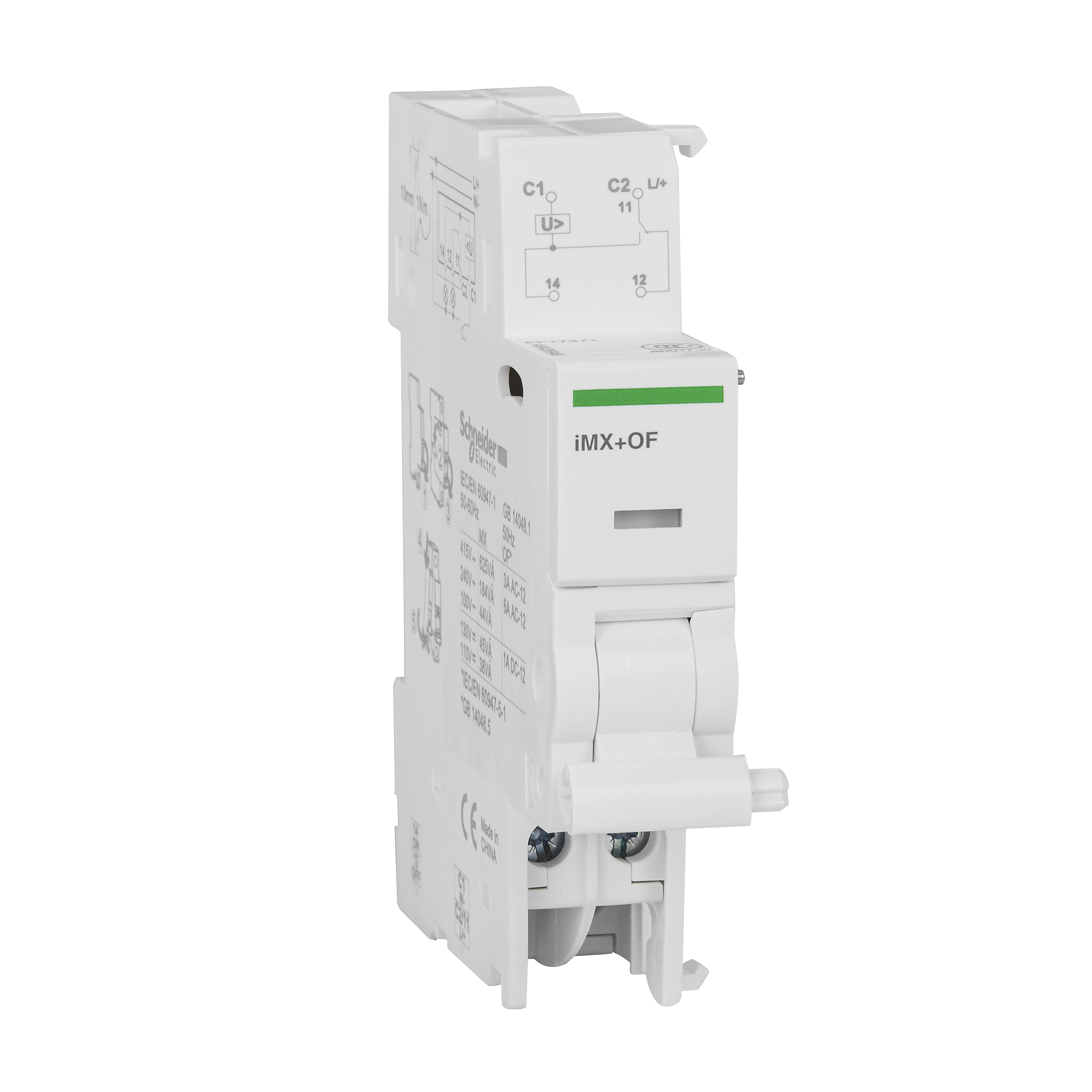

Wyzwalacz wzrostowy Acti9 ze stykiem iMX+OF-230/400 1CO 100…415 VAC, 110…130 VDC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9A26946 |
GTIN(EAN) | 3606480088049 |
Price unit | piece |
Catalog price | 333,33 zł (271,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
This Acti 9 MX+OF electrical tripping auxiliary for is a shunt trip release. It is dedicated to Acti9 iC60, iID, iC40, iC40 XA, iCV40, iID40, iCV40 XA, iDPN Vigi, iSW-NA, iKQE, iC60 RCBO. This product complies with IEC/EN 60947-5-1 standard and EN 62019-2 standard only for C120.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 9 |
Gross weight: | 77 g |
ETIM class: | Auxiliary device for distribution board devices |
Device fitting: | Miniature circuit breaker (MCB) |
Number of fault-signal switches: | 0 |
Rated switch current: | 6 A |
Rated voltage: | 415 V |
Suitable for max. number of poles main contact unit (total): | 4 |
Width in number of modular spacings: | 1 |
Suitable for max. current main contact unit: | 63 A |
Number of contacts as change-over contact: | 1 |
Number of contacts as normally open contact: | 0 |
Number of contacts as normally closed contact: | 0 |
With auto test for earth leakage function: | no |
Additional equipment: | Shunt release (for power circuit breaker) |
Installed at the factory: | no |
Voltage type for actuating: | AC |
