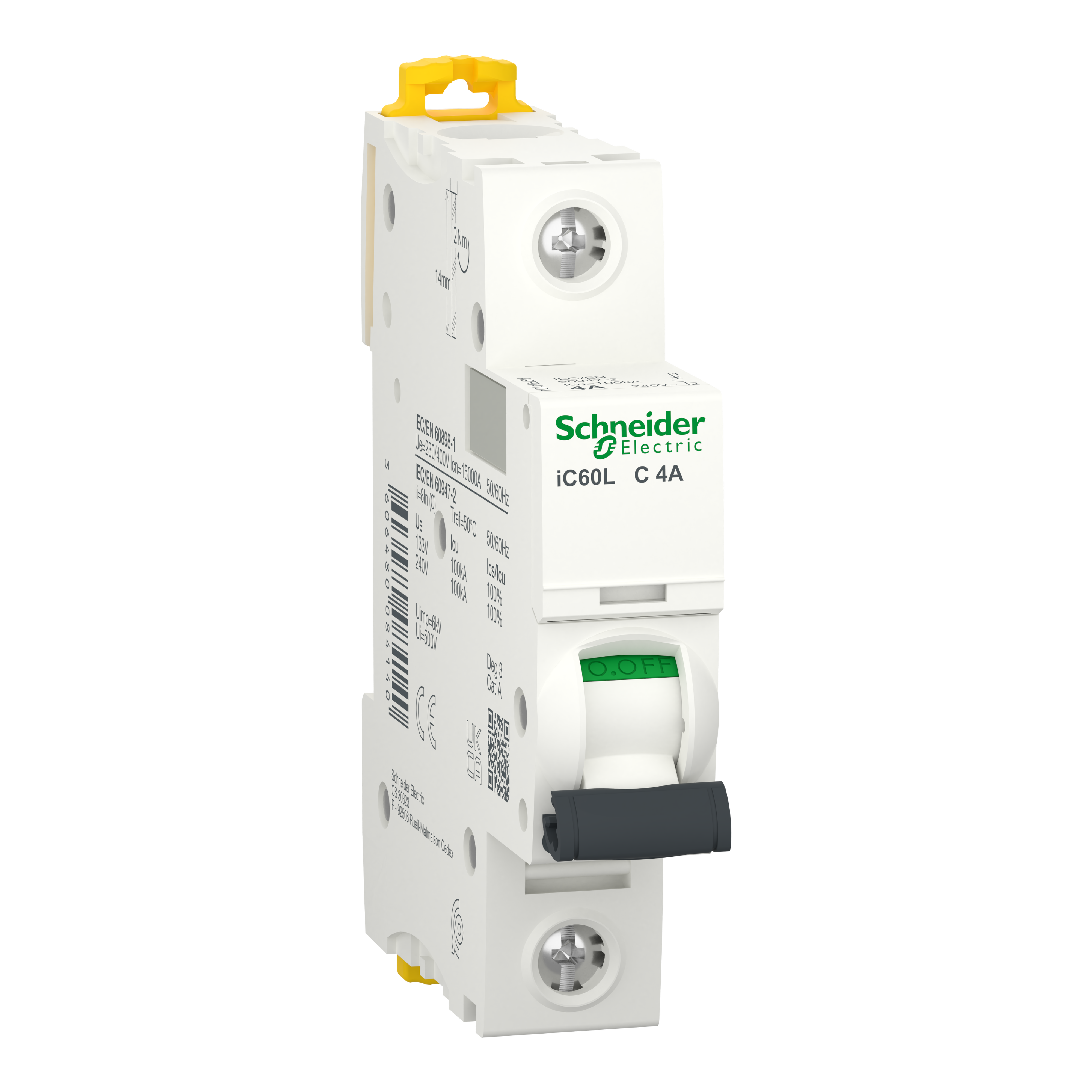

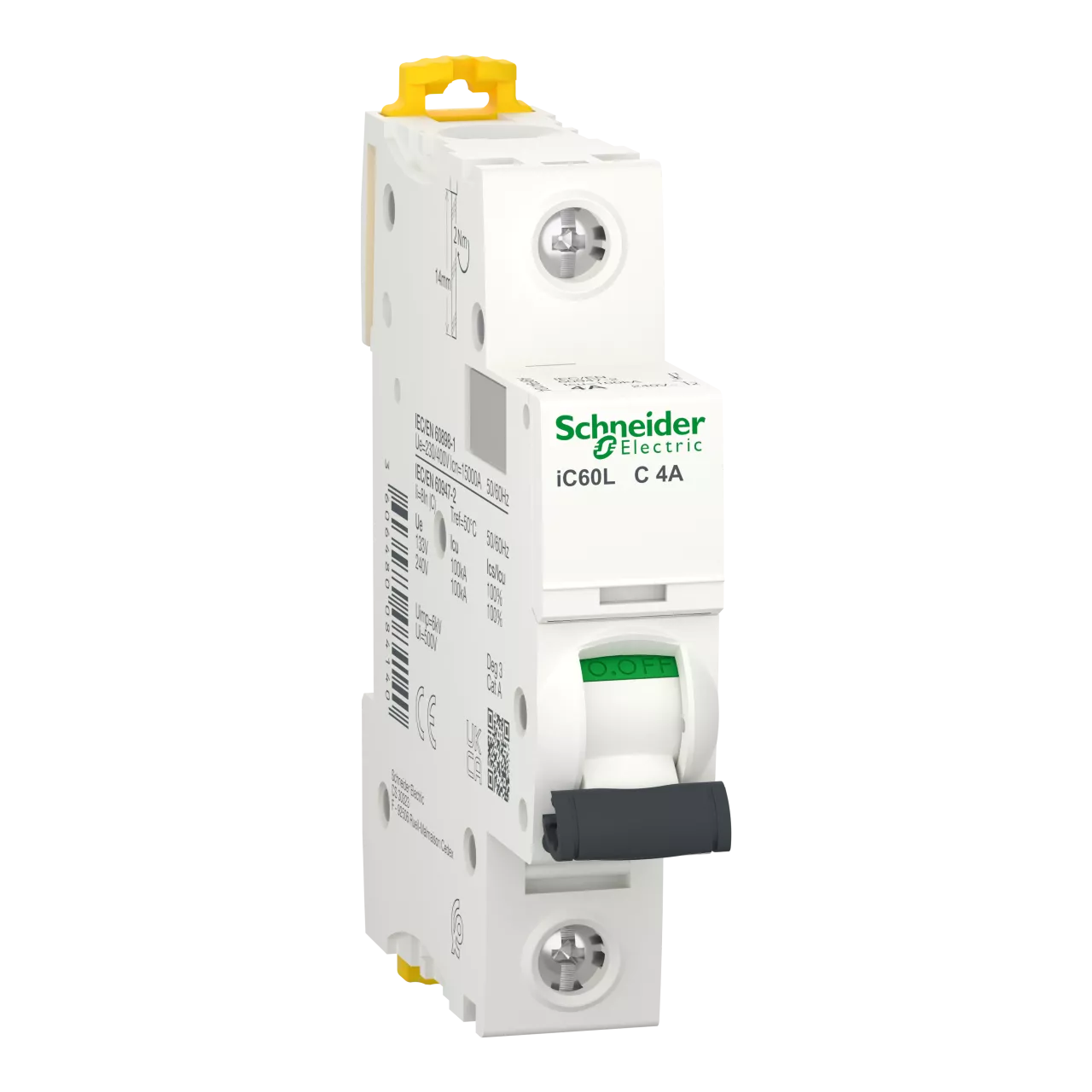

Wyłącznik nadprądowy Acti9 iC60L-C4-1 C 4A 1-biegunowy
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | A9F94104 |
GTIN(EAN) | 3606480084140 |
Price unit | piece |
Catalog price | 369,00 zł (300,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik nadprądowy iC60L-C4-1 C 4A 1-biegunowy ,o numerze A9F94104. Możliwość bezpośredniego podłączenia dwóch przewodów o różnych przekrojach. Opt yczny wskaźnik Visi-Trip wyzwolenia elektrycznego, biało-czerwony. Możliwość demontażu pojedynczego aparatu bez potrzeby zdejmowania szyny łączeniowej. Zdjemowanie z szyny DIN bez użycia narzędzi.
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 11 |
Gross weight: | 110 g |
ETIM class: | Miniature circuit breaker (MCB) |
Frequency: | 50 - 60 Hz |
Number of poles (total): | 1 |
Built-in depth: | 44.5 mm |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Explosion-proof: | no |
Additional equipment possible: | yes |
Voltage type: | AC/DC |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 15 kA |
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 100 kA |
Concurrently switching neutral conductor: | no |
Degree of protection (IP): | IP20 |
Rated impulse withstand voltage Uimp: | 6 kV |
Release characteristic: | C |
Width in number of modular spacings: | 1 |
Number of protected poles: | 1 |
Flush-mounted installation: | no |
Ambient temperature during operating: | -35 - 70 °C |
Over voltage category: | 4 |
Current limiting class: | 3 |
Rated current: | 4 A |
Rated voltage: | 230 V |
Rated insulation voltage Ui: | 500 V |
Connectable conductor cross section multi-wired: | 1 - 16 mm² |
Pollution degree: | 3 |
