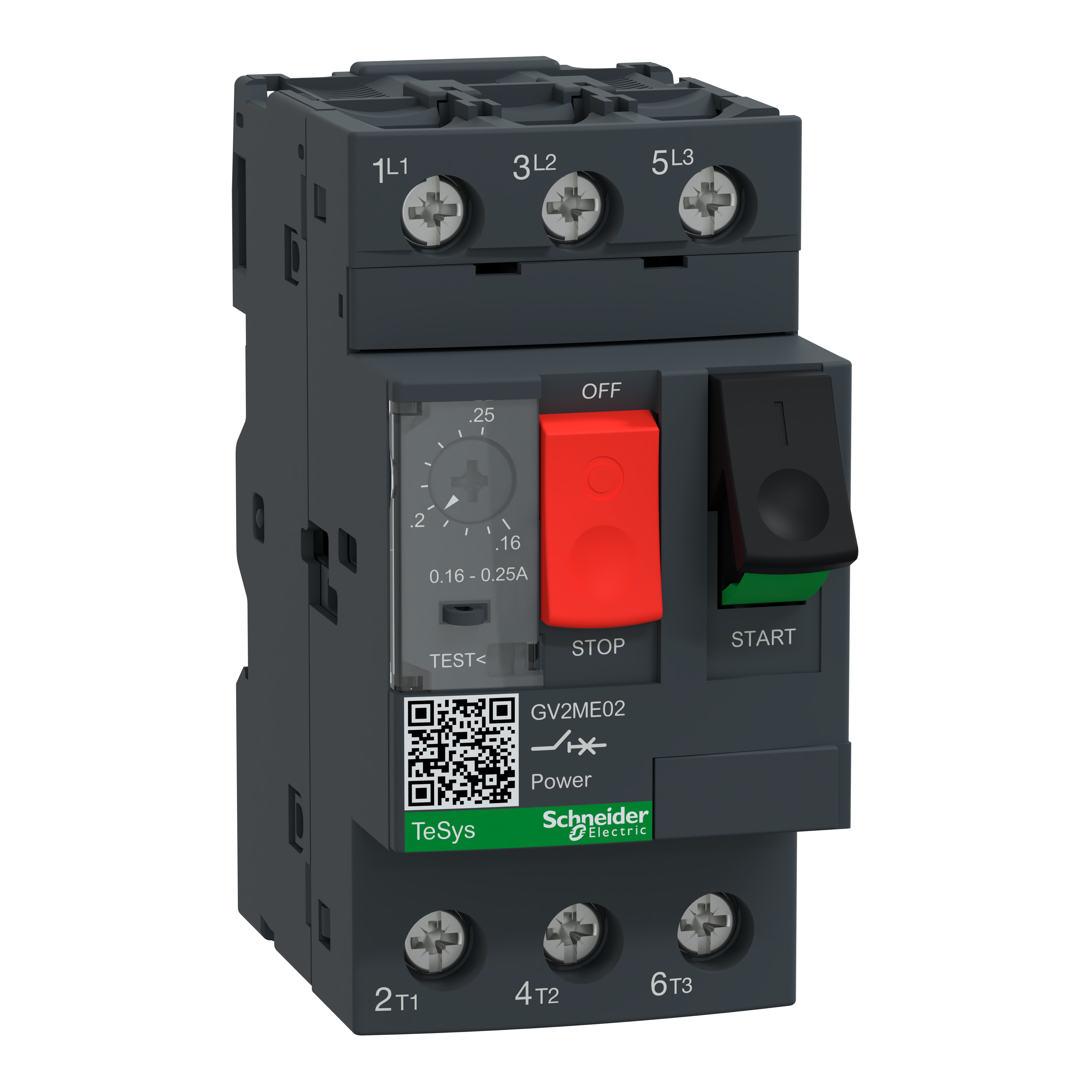

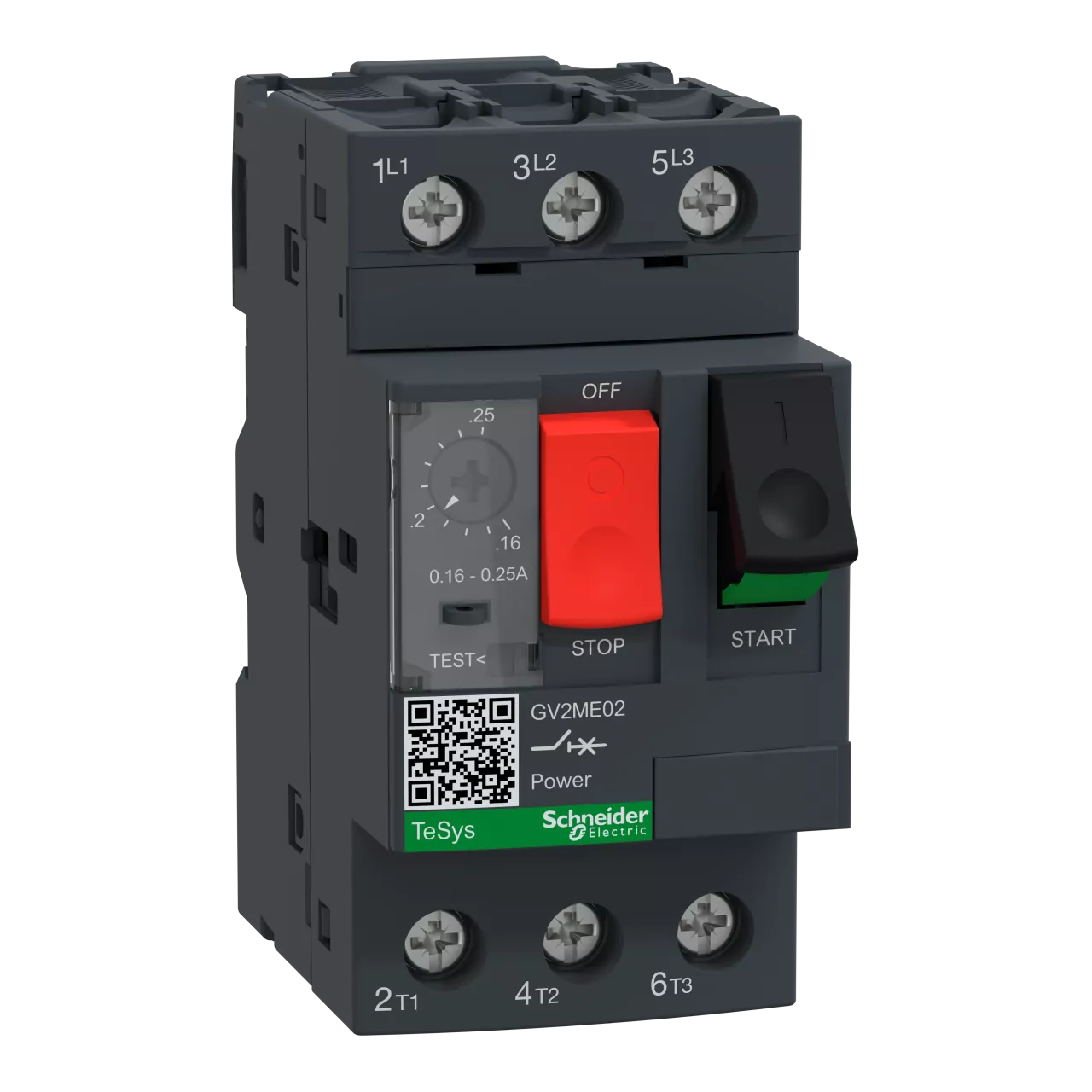

Wyłącznik silnikowy GV2ME z napędem przyciskowym I=0,16-0,25A PL zac skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GV2ME02AP |
GTIN(EAN) | 3606489607609 |
Price unit | piece |
Catalog price | 282,15 zł (229,39 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
punkty elektroklub: | 20 |
Gross weight: | 232 g |
ETIM class: | Motor protection circuit-breaker |
Type of electrical connection of main circuit: | Screw connection |
Adjustment range undelayed short-circuit release: | 2.4 - 2.4 A |
Device construction: | Complete device in housing |
With integrated under voltage release: | no |
Number of poles: | 3 |
Degree of protection (IP): | IP20 |
Height: | 89 mm |
Rated operating voltage: | 230 - 690 V |
Depth: | 78.2 mm |
Width: | 45 mm |
Switch off technique: | Thermomagnetic |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
Rated operation power at AC-3, 400 V: | 0.06 kW |
Phase failure sensitive: | yes |
With integrated auxiliary switch: | no |
Type of control element: | Push button |
Rated permanent current Iu: | 0.25 A |
Overload release current setting: | 0.16 - 0.25 A |
With thermal overload protection: | yes |
