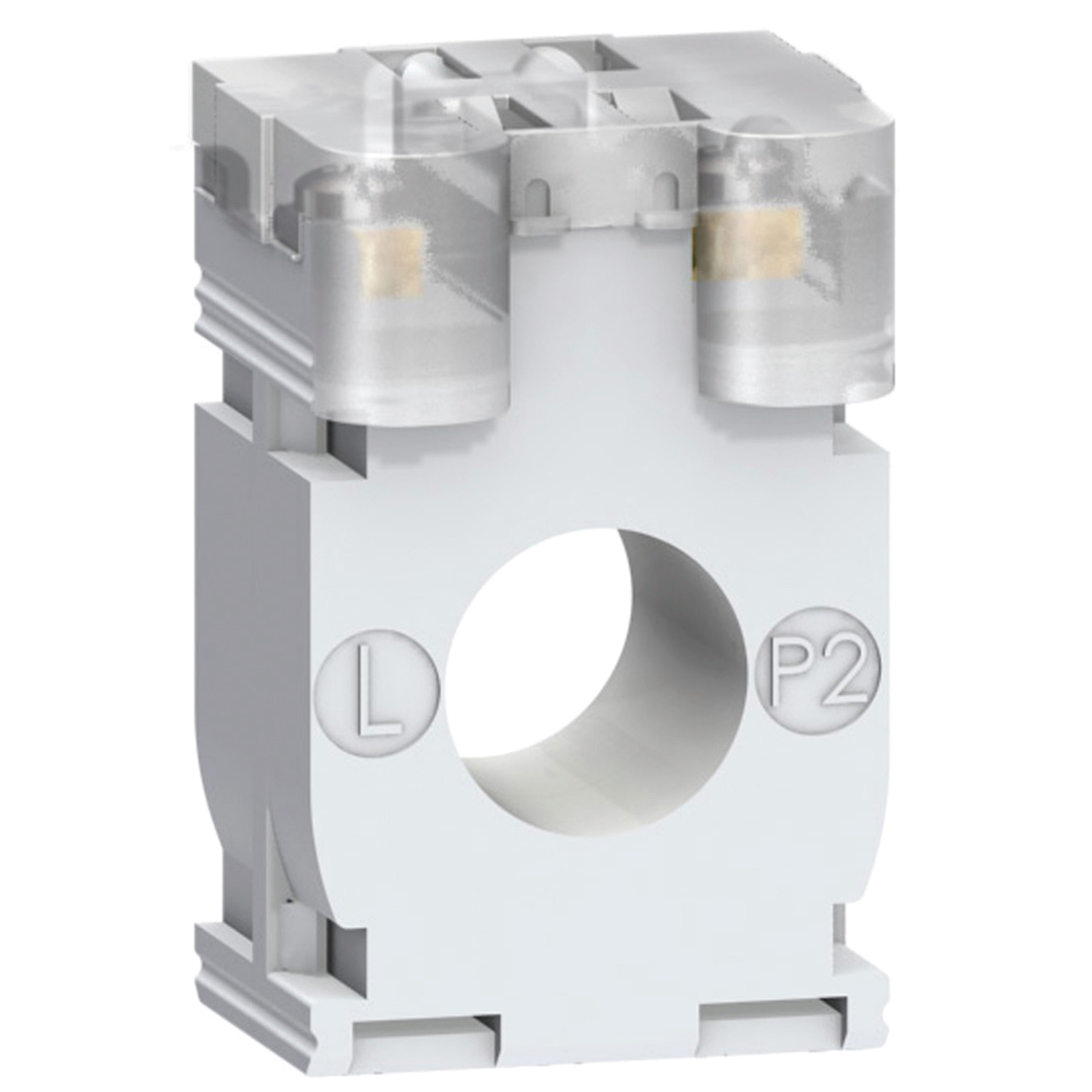

PowerLogic Przekładnik prądowy DIN 100/5 kabel śr21
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | METSECT5CC010 |
| GTIN(EAN) | 3303431123438 |
| Price unit | piece |
| Catalog price | 241,08 zł (196,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten transformator prądowy, tropikalizowany dla kabli, ma prąd znamionowy linii 100 A i prąd wtórny 5 A. Ten przekładnik prądowy umożliwia uzyskanie maksymalnej średnicy zewnętrznej kabla wynoszącej 21 mm. Klasa obciążenia i dokładności: klasa 0.5 moc maksymalna: 2 VA, maksymalna moc klasy 1: 2,5 VA, klasa 3 maksymalna moc: 3,5 VA.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 192 g |
| ETIM class: | Current transformer |
| Overcurrent limiting factor: | FS 5 |
| Width opening: | 0 - 0 mm |
| Height opening: | 0 - 0 mm |
| Accuracy class: | 0.5 |
| With shock protection: | no |
| Rated secondary current: | 5 A |
| Rated secondary apparent power: | 3,5 VA |
| Opening diameter: | 21 mm |
| With copper rail: | no |
| Number of primary inputs: | 1 |
| Calibrated: | no |
| Secondary connection: | Screw connection |
| Model: | Through-feed current converter |
| Rated primary current: | 100 A |
| Snap mounting: | no |
