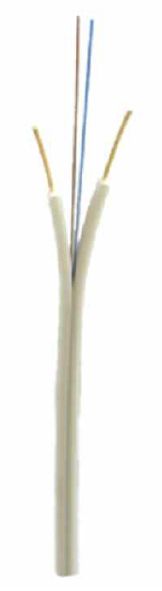

Kabel światłowodowy wew. MDIC 4J
Information | Value |
---|---|
Supplier | C&C Partners Sp. z o.o. (securityNET) |
Symbol | 8006 9 278-00 |
GTIN(EAN) | 8713182102302 |
Price unit | kilometer |
Catalog price | 275,00 EUR = 1 458,34 zł 1 (1 185,64 zł 1+ 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

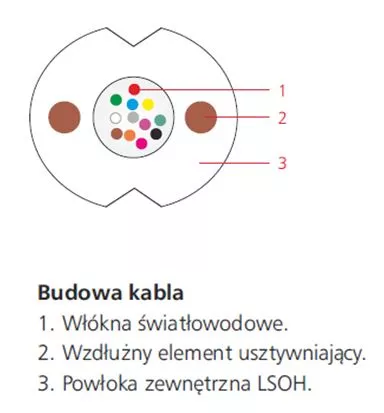

Kabel MDIC (ang. Micro Drop Installation Cable) – rozwiązanie wewnętrznego kabla instalacyjnego o pojemności 4J i przekroju okrągłym. Włókna prowadzone są beztubowo. Kabel posiada wzmocnioną konstrukcję zapewniającą odporność na ewentualne uszkodzenia czy odkształcenia w trudnych warunkach instalacji. Właściwy poziom elastyczności kabla zapewniają wzdłuż przebiegające elementy usztywniające. Kabel przeznaczony do projektów typu FTTH jako rozwiązanie dostępowe dla różnorodnych warunków instalacyjnych, do montażu w wersji natynkowej oraz podtynkowej.
Additional features:
Information | Value |
---|---|
Net weight: | 20 kg |
ETIM class: | Fibre optic cable |
Number of fibres: | 4 |
Type of tube: | Other |
Number of fibres per tube: | 4 |
Fibre type: | Single mode 9/125 |
Category: | OS2 |
With strain relief: | yes |
With rodent protection: | no |
Material outer sheath: | Other |
Specification material outer sheath: | Other |
Colour outer sheath: | White |
Longitudinal water blocking cable: | no |
Radial water blocking cable: | no |
Cable metal free: | yes |
Reaction-to-fire according to EN 13501-6: Class: | Dca |
Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d2 |
Reaction-to-fire according to EN 13501-6: Acidity: | a1 |
Oil resistant according to EN IEC 60811-404: | no |
Resistant to chemicals: | no |
UV resistant: | yes |
Outer diameter approx.: | 3.7 mm |
Min. permitted bending radius, stationary application/permanent installation: | 37 mm |
Max. tensile strength during installation: | 0.15 kN |
Suitable for underground installation: | no |
Blow in: | no |
Cable geometry: | Round |
Weight: | 16 kg/km |
