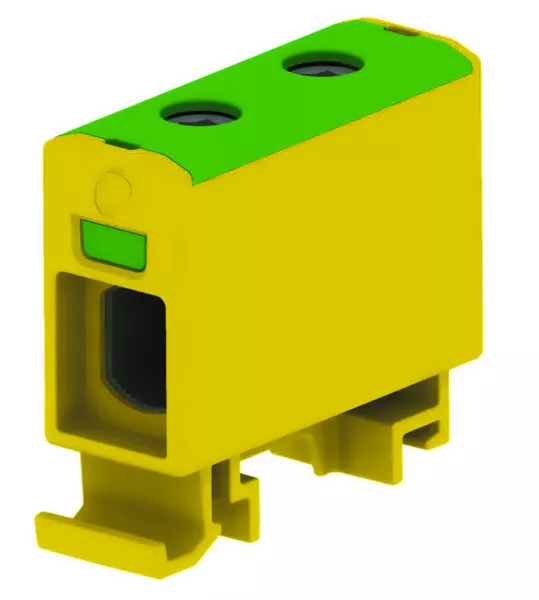

Złączka szynowa gwintowa AL/CU MAA1050Y10 żółto-zielony
Information | Value |
---|---|
Supplier | SIMET S.A. |
Symbol | 89706009 |
GTIN(EAN) | 5907813226939 |
Price unit | piece |
Catalog price | 32,44 zł (26,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Zachowaj Spokój
Przy zakupach produktów SIMET na kwotę 2000 zł brutto prezent w postaci Alkomatu Xblitz UNLIMITED.
-
Simet Combo 3
Za zakup asortymentu firmy Simet, odbierz nagrodę: zestaw szybkozłączek Idealna Combo 3
Description:
MAA1050Y10 żółto-zielony_Złączka szynowa gwintowa AL/CU/ 1,5 - 50 mm2 / TS 35/ 1 tor, 2 otwory zaciskowe, OTL50
Additional features:
Information | Value |
---|---|
Net weight: | 30 g |
ETIM class: | Feed-through terminal block |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 4 - 50 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 4 - 50 mm² |
Connectable conductor cross section multi-wired: | 4 - 50 mm² |
Rated current In: | 145 A |
Rated voltage: | 1000 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of poles: | 1 |
Number of clamp positions per pole: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Width/grid dimension: | 18 mm |
Length: | 50 mm |
Closing plate required: | no |
Colour: | Green/yellow |
Transparent: | no |
Internally connected stages: | yes |
Number of levels: | 1 |
Number of clamp positions per level: | 2 |
