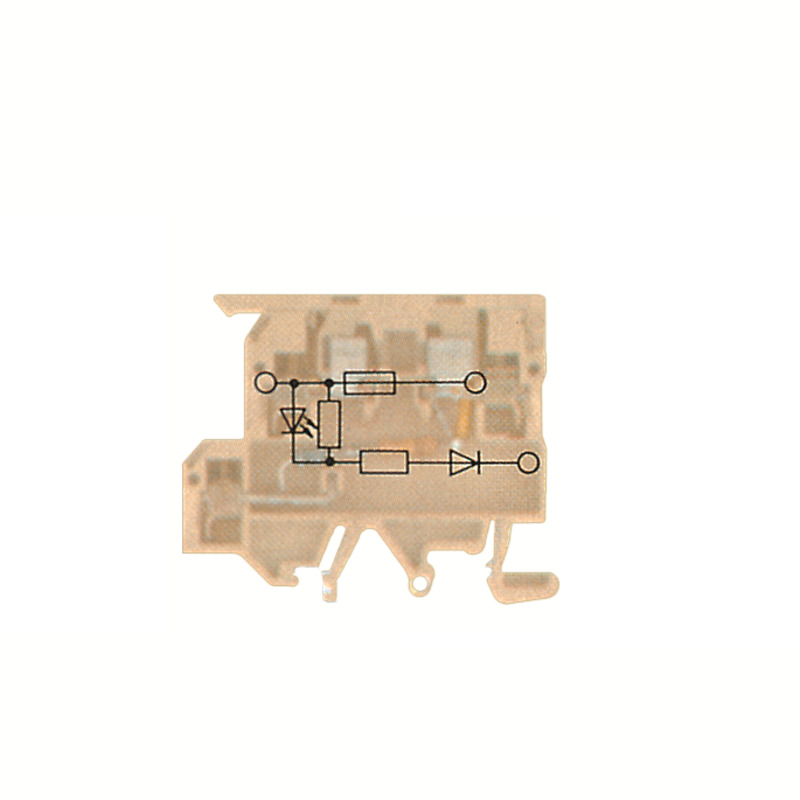

KDKS1/EN LD 24VDC Złączka szynowa z bezpiecznikiem, nr.katalogowy 8146450000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 8146450000 |
| GTIN(EAN) | 4008190171902 |
| Price unit | piece |
| Catalog price | 88,18 zł (71,69 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący do podłączenia lub łączenia przewodników ze stale zabezpieczonym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo. Z wyciąganym nośnikiem na bezpiecznik.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Fuse terminal block |
| Type of fuse insert: | G-fuse 5x20 mm |
| Type of fuse holder: | Swivelling |
| Type of indication element for defect indication: | LED |
| Supply voltage for defect-indication: | 24 - 24 V |
| Voltage type for defect indication: | DC |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
| Rated current In: | 6.3 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Screw connection |
| Number of levels: | 2 |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 100 °C |
| Inflammability class of insulation material according to with UL94: | V2 |
| Width/grid dimension: | 8 mm |
| Length: | 62.75 mm |
| Closing plate required: | yes |
| Colour: | Multi-coloured |
