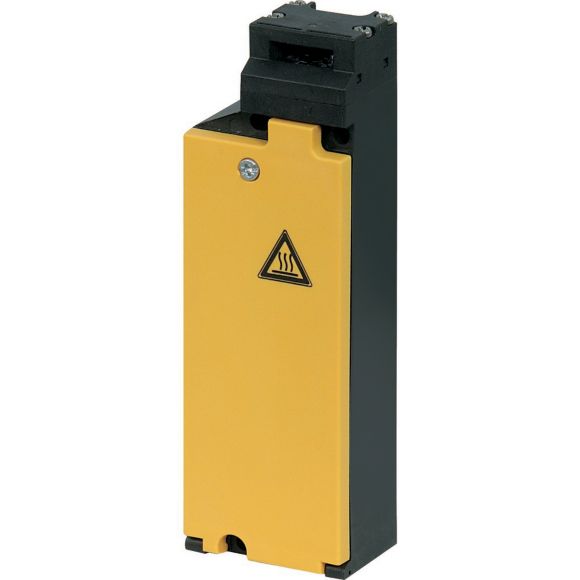

LS-S02-24DFT-ZBZ/X Łącznik krańcowy bezpieczeństwa
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 106823 |
| GTIN(EAN) | 4015081065837 |
| Price unit | piece |
| Catalog price | 1 892,97 zł (1 539,00 zł + 23% VAT) |
| Sale price | from 853,01 zł / szt. (693,50 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Łącznik krańcowy, Funkcja podstawowa: Łączniki krańcowe, Krańcowe łączniki bezpieczeństwa, Odniesienie grupy części LS…ZBZ/X, Zacisk śrubowy: Urządzenia podstawowe z blokadą sprężynową (zasada zamkniętego obwodu), Stopień ochrony: IP65, Charakterystyka: Moduł podstawowy, możliwość rozbudowy, Temperatura otoczenia: od -25 do +40°C, Opis: Z monitorowaniem blokady, z pomocniczym mechanizmem zwalniającym, Nadzorowanie położenia drzwi: ciągły, Zestyki R = rozwierne: 2 R, Uwagi: = funkcja bezpieczeństwa, przez wymuszone otwarcie do IEC/EN 60947-5-1, Znamionowe napięcie sterujące napędu magnetycznego: Us = 24 V DC V, Obudowa: Materiał izolowany, Typ połączenia: Zaciski śrubowe
Additional features:
| Information | Value |
|---|---|
| Net weight: | 430 g |
| Country of origin | Niemcy |
| ETIM class: | End switch |
| Switching function: | Slow-action switch |
| Rated operation current Ie at AC-15, 230 V: | 6 A |
| Rated operation current Ie at DC-13, 230 V: | 0,3 A |
| Housing material: | Plastic |
| Suitable for safety functions: | yes |
| Coating housing: | Other |
| With status indication: | no |
| Type of interface for safety communication: | None |
| Type of electric connection: | Cable entry metrical |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Construction type housing: | Cuboid |
| Degree of protection (IP): | IP65 |
| Forced opening: | yes |
| Number of safety auxiliary contacts: | 2 |
| Type of control element: | None |
| Type of interface: | None |
| Output electronic: | no |
| Rated operation current Ie at AC-15, 125 V: | 6 A |
| Rated operation current Ie at AC-15, 24 V: | 6 A |
| Rated operation current Ie at DC-13, 125 V: | 0,8 A |
| Rated operation current Ie at DC-13, 24 V: | 3 A |
| Width sensor: | 60 mm |
| Diameter sensor: | 0 mm |
| Height of sensor: | 173 mm |
| Length of sensor: | 39 mm |
| Switching function latching: | no |
| Ambient temperature during operating: | -25 - 70 °C |
| Number of contacts as normally closed contact: | 2 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Alignment of the control element: | Other |
| Degree of protection (NEMA): | Other |
