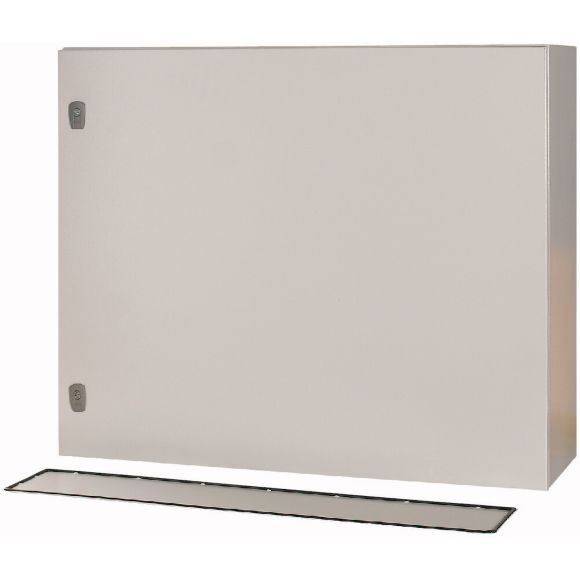

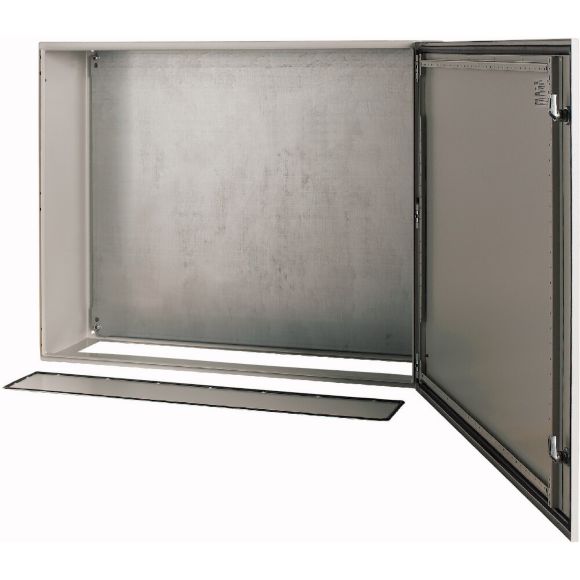

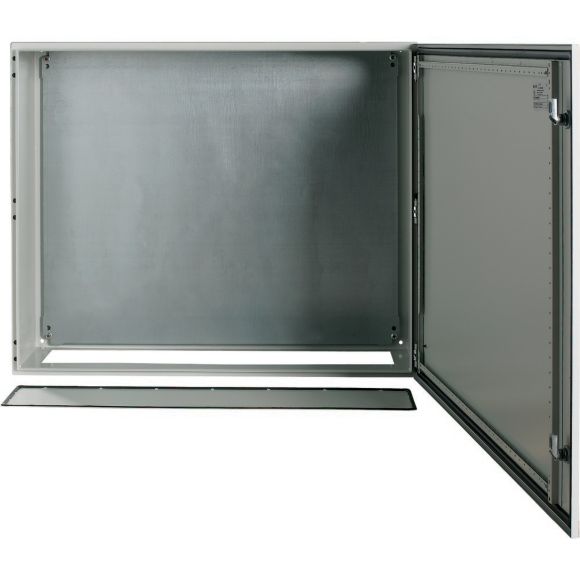

CS-810/300 Obudowa z płytą montaż. (800x1000x300)
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 111711 |
| GTIN(EAN) | 4015081112708 |
| Price unit | piece |
| Catalog price | 5 402,16 zł (4 392,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wandaufbaugehäuse CS, Tür mit umlaufender Polyurethanschaumdichtung , Stoßfestigkeit IK10 nach EN 62262, eintürig, Türanschlag rechts, Öffnungswinkel 120°, Scharnierachsen mit Schnellwechseltechnik, Türprofilleiste mit Lochung im Abstand von 25 mm zur Befestigung von DIN-Tragschienen oder zur Befestigung von Kabelkanälen und -leitungen, genormtes Schließsystem mit Vorreiber, komplett aus Metall, mit Montageplatte aus Stahlblech, Lieferumfang: Schloss, 3 mm-Doppelstabschlüssel. Optionales Zubehör z.B. Drehkomfortgriff PHZ-A-ADD-ON mit Zylinderschloss PHZ-E10/30-GS. Ausgelegt gemäß IEC/EN 62208
Additional features:
| Information | Value |
|---|---|
| Net weight: | 54,4 kg |
| Country of origin | Hiszpania |
| ETIM class: | Enclosure/cabinet (empty) |
| Colour: | Grey |
| Width: | 1 000 mm |
| Height: | 800 mm |
| Depth: | 300 mm |
| RAL-number: | 7 035 |
| With mounting plate: | yes |
| Number of doors: | 1 |
| Number of locks: | 2 |
| Suitable for wall mounting: | yes |
| Pre-stamping: | no |
| EMC-version: | no |
| With glazed door: | no |
| Couplable: | no |
| Material quality: | Other |
| Material: | Steel |
| Impact strength: | IK10 |
| Degree of protection (IP): | IP66 |
| Number of connector holes: | 0 |
| Suitable for outdoor set-up: | no |
| Suitable for metrical mounting: | yes |
| Mounting plate depth-adjustable: | no |
| With ventilation door: | no |
| Surface finishing: | Powder coating |
| With rear door: | no |
| Suitable for wall built-in: | yes |
| With cover: | yes |
| With door: | yes |
| Pitched roof: | no |
| Pole fastening: | yes |
| Transparent cover: | no |
| Degree of protection (NEMA): | 12 |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890: | 120 W |
| Max. permissible load of the enclosure according to IEC 62208: | 3 250 N |
| Max. permissible load of the door(s) according to IEC 62208: | 250 N |
| Max. permissible load of the mounting plate according to IEC 62208: | 3 000 N |
| Floor standing wall model: | yes |
| Freestanding: | no |
| Corner model: | no |
| Intermediate mounting: | yes |
