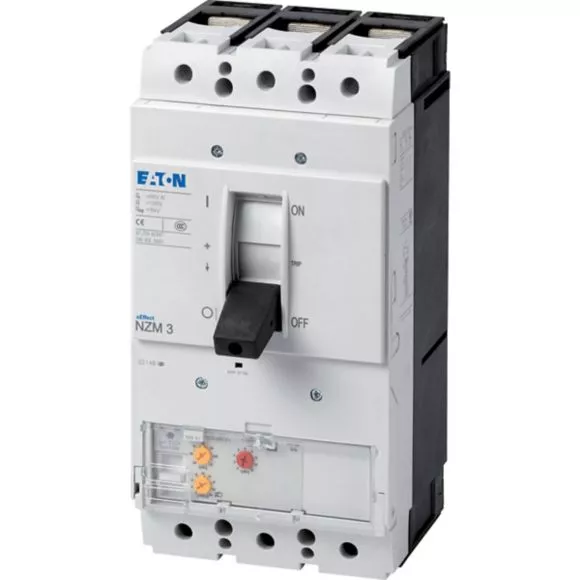

NZMH3-ME450-S1 Wyłącznik mocy 3-bieg. 450A 1000V AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 119366 |
| GTIN(EAN) | 4015081175024 |
| Price unit | piece |
| Catalog price | 13 066,31 zł (10 623,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Die Leistungsschalter der Serie NZM..-ME decken mit nur vier kompakten Baugrößen alle Anwendungsfälle ab und sind für den IEC-Markt geeignet. Modulare Funktionsgruppen gestalten die Montage immer flexibel. Mit elektronischer Freigabe zum Motorschutz mit Phasenausfallempfindlichkeit. Anmerkung: Effektivwertmessung und „thermisches Gedächtnis“, einstellbare Trägheitsgradeinstellung zur Überwindung von Stromspitzen tr: 2 bis 20 s bei 6 x Ir sowie unendlich (ohne Überlastauslöser) NZM...S1 Klemmentyp: NZM...XKSA Abdeckung erforderlich, NZM4...S1 Klemmentyp: Isolierter Sammelschienenanschluss (NZM4-XKS Schraubverbindung)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 6,34 kg |
| Country of origin | Rumunia |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 225 - 450 A |
| Adjustment range undelayed short-circuit release: | 450 - 6 300 A |
| With thermal overload protection: | yes |
| Phase failure sensitive: | yes |
| Switch off technique: | Electronic |
| Rated operating voltage: | 1 000 - 1 000 V |
| Rated permanent current Iu: | 450 A |
| Rated operation power at AC-3, 230 V: | 132 kW |
| Rated operation power at AC-3, 400 V: | 250 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 130 kA |
| Degree of protection (IP): | IP20 |
| Height: | 275 mm |
| Width: | 140 mm |
| Depth: | 166 mm |
