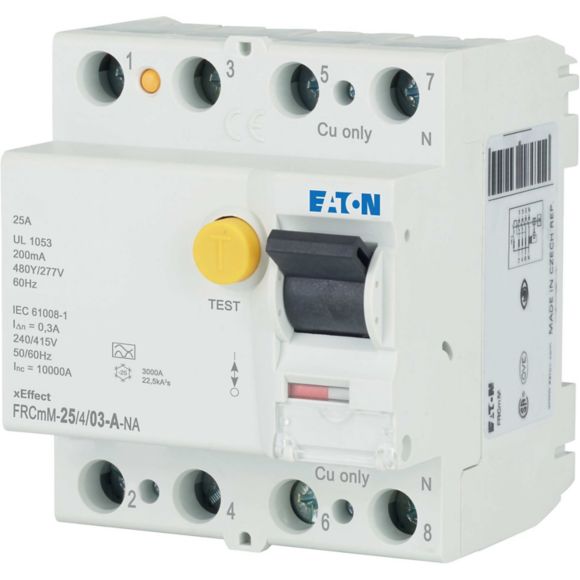

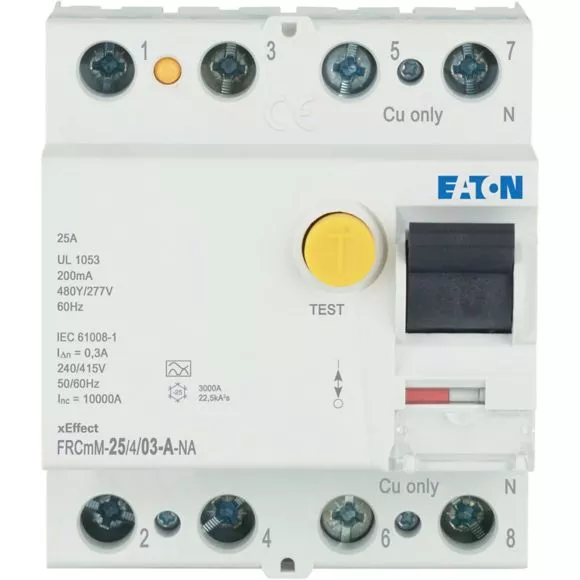

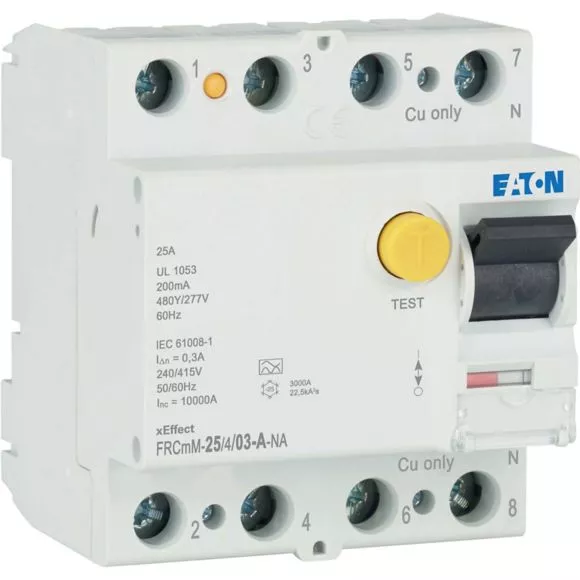

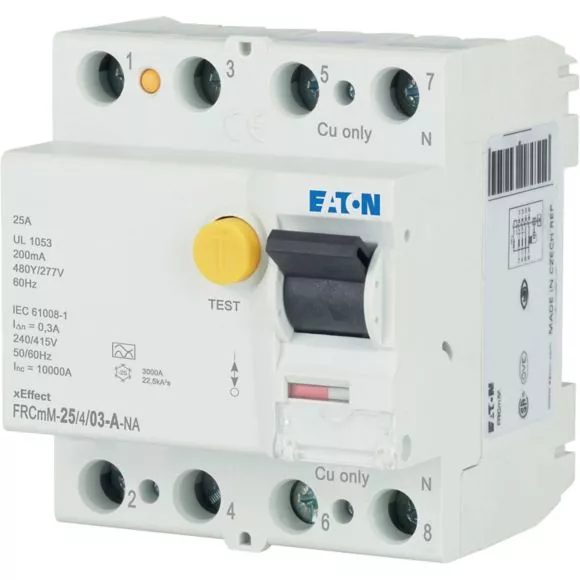

FRCMM-25/4/03-A-NA Wyłącznik różnicowoprądowy 10kA, In=25A, IΔN=0,3A, Typ A, 4-bieg. Seria FRCMM NA
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 167104 |
| GTIN(EAN) | 4015081636044 |
| Price unit | piece |
| Catalog price | 2 391,12 zł (1 944,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Aardlekschakelaar FRCmM-NA, 4-polig, Nominale stroom In: 25 A, Nominale kortsluitvastheid Icn: 10 met reservezekering kA, Nominale foutstroom IΔN: 0,3 A, Schakelapparatuur voor export naar Noord-Amerika (UL-gecertificeerd)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 320 g |
| Country of origin | Serbia |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 4 |
| Rated voltage: | 480 V |
| Rated current: | 25 A |
| Rated fault current: | 0,3 A |
| Rated insulation voltage Ui: | 440 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Leakage current type: | A |
| Selective protection: | no |
| Short-time delayed tripping: | no |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Surge current capacity: | 0,25 kA |
| Voltage type: | AC |
| With interlocking device: | yes |
| Frequency: | 50/60 Hz |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 4 |
| Built-in depth: | 70,5 mm |
| Ambient temperature during operating: | -25 - 40 °C |
| Pollution degree: | 2 |
| Connectable conductor cross section multi-wired: | 1,5 - 16 mm² |
| Connectable conductor cross section solid-core: | 1,5 - 35 mm² |
| Explosion-proof: | no |
| RAL-number (similar): | 7 035 |
