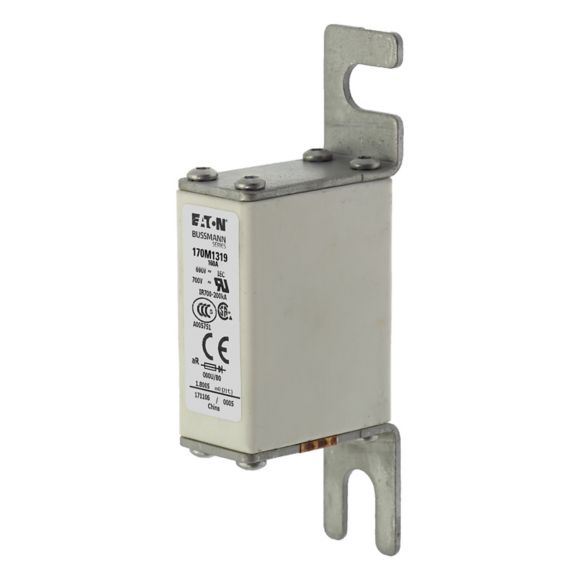

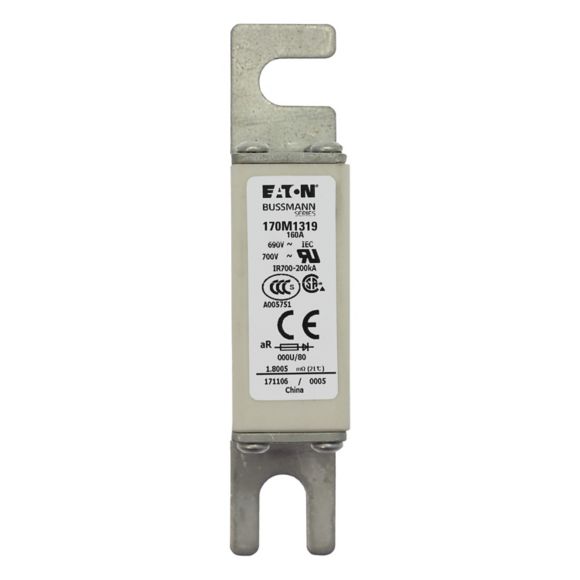

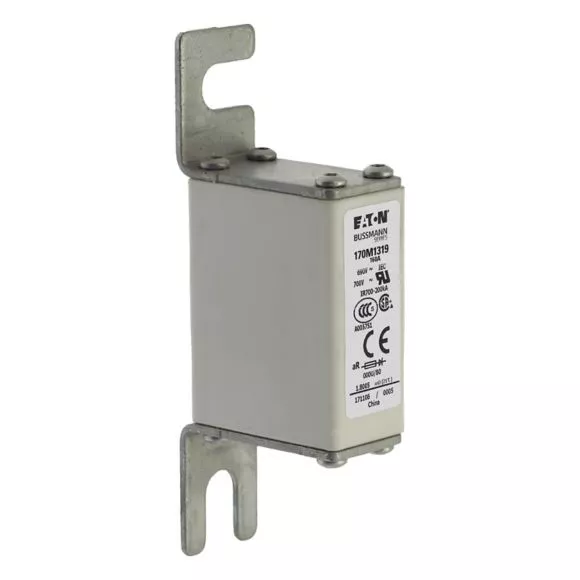

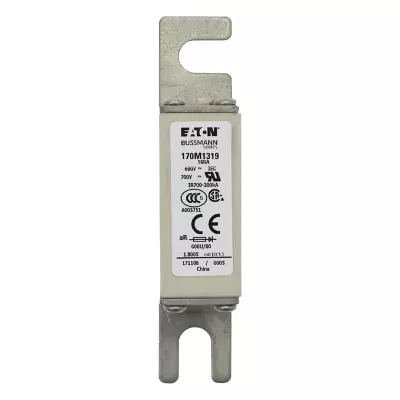

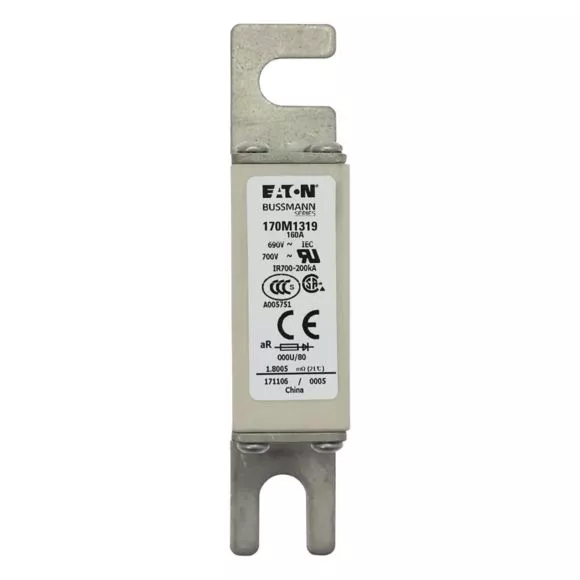

170M1319 Wkładka szybka, 160 A, AC 690 V, DIN 000, 21 x 40 x 100 mm, aR, DIN, IEC
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 170M1319 |
GTIN(EAN) | 5027590440752 |
Price unit | piece |
Catalog price | 334,81 zł (272,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 131 g |
ETIM class: | HRC fuse |
Fuse construction type according to IEC 60269: | 0 |
Type of current: | AC |
Rated voltage AC: | 690 V |
Rated current: | 160 A |
Utilization category: | aR (accompanied semiconductor protection) |
Breaking capacity: | 200 kA |
Colour code: | None |
Type of fuse status indicator: | None |
Power loss at rated current: | 32 W |
Mounting holes: | M8 |
Centre-to-centre distance of connections: | 76.7 mm |
