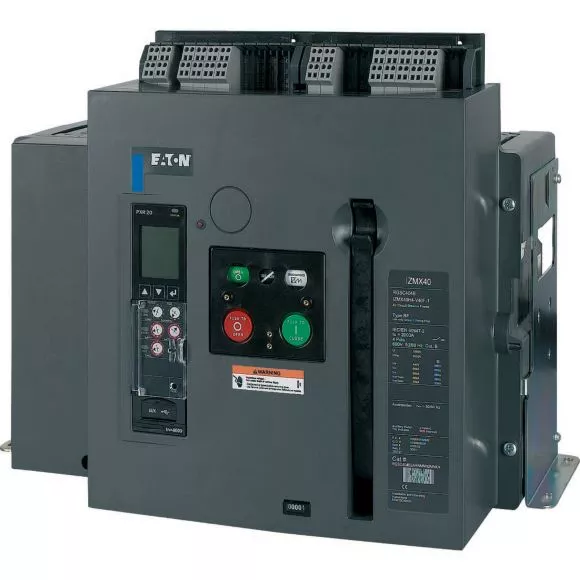

IZMX40B4-V08F-1 Wyłącznik IZMX40H, 4-bieg., 800 A, stacjonarny, PXRP
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 183894 |
| GTIN(EAN) | 4015081790388 |
| Price unit | piece |
| Catalog price | 46 675,38 zł (37 947,46 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Leistungsschalter IZMX40 (Offene Leistungsschalter/Trennschalter), 4-polig, Strombereich: Bis zu 4000 A, Bemessungsstrom = Bemessungsdauerstrom (In = Iu): 800 A, bis 440 V 50/60 Hz (Icu): 66 kA, bis 440 V 50/60 Hz (Ics): 66 kA, Überlastauslöser, min. (Ir): 320 A, Überlastauslöser, max. (Ir): 800 A, Installationsart: Festeinbau, Standard/Genehmigung: IEC, Schutzfunktion: Selektivschutz
Additional features:
| Information | Value |
|---|---|
| Net weight: | 56 kg |
| Country of origin | Stany Zjednoczone |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 800 A |
| Rated voltage: | 690 - 690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 66 kA |
| Overload release current setting: | 320 - 800 A |
| Adjustment range short-term delayed short-circuit release: | 480 - 8 000 A |
| Adjustment range undelayed short-circuit release: | 1 600 - 12 000 A |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Rail connection |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 2 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 4 |
| Position of connection for main current circuit: | Back side |
| Type of control element: | Push button |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP31 |
| Power loss: | 35 W |
