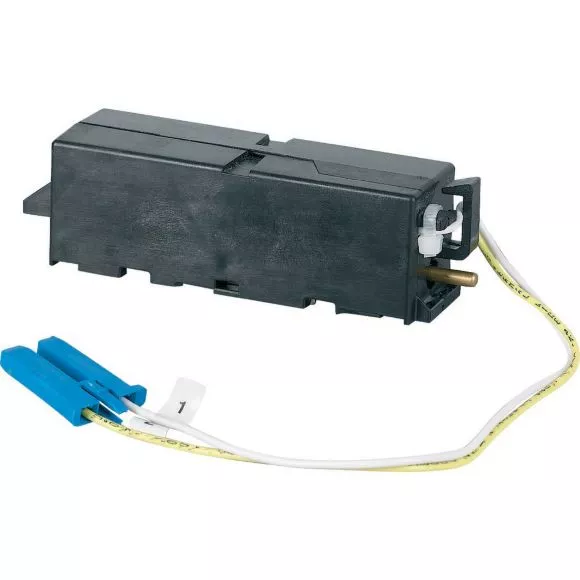

+IZMX-STS110AD-1 Drugi wyzwalacz wzrostowy do IZMX16/40 110 VAC/DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184278 |
| GTIN(EAN) | 4015081797066 |
| Price unit | piece |
| Catalog price | 2 299,99 zł (1 869,91 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zusatzausrüstung, 2. Arbeitsstromauslöser, Nur in Verbindung mit einem zerstenz Arbeitsstromauslöser, Nicht mit einem Unterspannungsauslöser kombinierbar, Maximale Schalthäufigkeit Schaltspiele/Minute 3, Aufgrund des hohen Anzugsstroms für 35 ms. auf 3/min begrenzt, Bitte beachten - Schaltfrequenz des Leistungsschalters = 60/h, Bemessungssteuerspeisespannung Us 110–127 V AC 50/60 Hz, 110–125 V DC V, Arbeitsbereich x US 0,7 - 1,1 Faktor, max. Haltestrom ln 0,071 A, max. Anzugsstrom (35 ms) In 5,54 A, max. Dauerleistung AC/DC 10 VA/W, max. Einzugsleistung (35ms) AC/DC 540 VA/W, Gesamtschaltzeit des Leistungsschalters @ US=100% 30 (IZMX16..., INX16...), 35 (IZMX40...)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 113 g |
| Country of origin | Stany Zjednoczone |
| ETIM class: | Shunt release (for power circuit breaker) |
| Rated control supply voltage AC 50 Hz: | 110 - 127 V |
| Rated control supply voltage AC 60 Hz: | 110 - 127 V |
| Rated control supply voltage DC: | 110 - 125 V |
| Voltage type for actuating: | AC/DC |
| Initial value of the undelayed short-circuit release - setting range: | 0 A |
| End value adjustment range undelayed short-circuit release: | 0 A |
| Type of electric connection: | Flat plug-in connection |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Suitable for power circuit breaker: | yes |
| Suitable for off-load switch: | yes |
| Suitable for motor safety switch: | no |
| Suitable for overload relay: | no |
| Power consumption: | 10 W |
