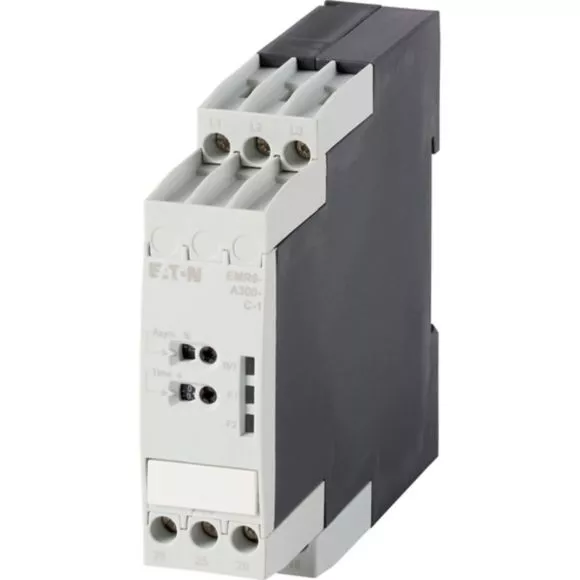

EMR6-A300-C-1 Przekaźnik monitorujący asymetrię faz, 160 - 300 V AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184761 |
| GTIN(EAN) | 4015081787975 |
| Price unit | piece |
| Catalog price | 1 870,83 zł (1 521,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Fase-onbalans bewakingsrelais, Productassortiment: EMR meet- en bewakingsrelais, Voeding vanuit het meetcircuit, Schakelvertraging: geen = 0 of instelbaar van 0,1 tot 30 s, Onbalansdrempelwaarden instelbaar 2 - 25 % van gemiddelde waarde van fasespanningen, Monitoring voltage per fase: UN= 160 - 300 V AC, 50/60 Hz V AC, Bewaking van: Fasevolgorde, Fase-uitval, onbalans, Aanpasbare drempelwaardes: Asymmetrie, Voedingsspanning: 160 - 300 V AC, 50/60 Hz, Montagepositie: zoals vereist, Bevestiging: Klikbevestiging, DIN-rail IEC/EN 60715, Breedte: 22,5 mm, Normen: IEC/EN 60255-6, IEC255-6, UL, CE
Additional features:
| Information | Value |
|---|---|
| Net weight: | 160 g |
| Country of origin | Niemcy |
| ETIM class: | Phase monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Phase sequence monitoring: | yes |
| Phase failure detection: | yes |
| Function under voltage detection: | no |
| Function over voltage detection: | no |
| Phase imbalance monitoring: | yes |
| Voltage measuring range: | 160 - 300 V |
| Min. adjustable delay-on energization time: | 0,1 s |
| Max. permitted delay-on energization time: | 30 s |
| Min. adjustable off-delay time: | 0 s |
| Max. permitted off-delay time: | 0 s |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Width: | 22,5 mm |
| Height: | 85,6 mm |
| Depth: | 103,7 mm |
| External power supply required: | no |
| Voltage type (supply voltage): | AC |
| Supply voltage AC 50 Hz: | 160 - 300 V |
| Supply voltage AC 60 Hz: | 160 - 300 V |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 160 - 300 V |
| Operating voltage AC 60 Hz: | 160 - 300 V |
| Rated switch current: | 4 A |
