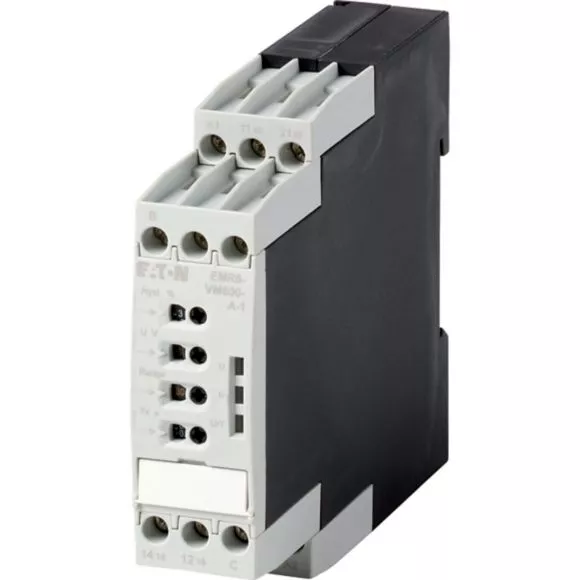

EMR6-VM600-A-1 Przekaźnik monitorujący napięcie, 24 - 240 V AC/DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184784 |
| GTIN(EAN) | 4015081788200 |
| Price unit | piece |
| Catalog price | 2 260,74 zł (1 838,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Spanningsbewaking, Productassortiment: EMR meet- en bewakingsrelais, Bewaking van: overspanning, onderspanning, Spanningsmeetbereik: 3 - 30, 5 - 60, 30 - 300, 60 - 600 V, Voedingsspanning: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC, Montagepositie: zoals vereist, Bevestiging: Klikbevestiging, DIN-rail IEC/EN 60715, Breedte: 22,5 mm, Normen: UL508, CAN/CSA-C22.2 No. 14, GL, EAC, CCC, RMRS, RCM
Additional features:
| Information | Value |
|---|---|
| Net weight: | 154 g |
| Country of origin | Niemcy |
| ETIM class: | Voltage monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Single-phase under voltage possible: | yes |
| Three-phase under voltage possible: | no |
| Single-phase over voltage possible: | yes |
| Three-phase over voltage possible: | no |
| Single-phase hysteresis possible: | no |
| Three-phase hysteresis possible: | no |
| Contains function DC-under voltage: | yes |
| Contains function DC-over voltage: | yes |
| Contains function DC-voltage hysteresis: | no |
| Voltage measuring range 1: | 3 - 600 V |
| Voltage measuring range 2: | 0 - 0 V |
| Type of voltage measuring range: | AC/DC |
| Response value voltage: | 3 - 600 V |
| Min. adjustable delay-on energization time: | 0,1 s |
| Max. permitted delay-on energization time: | 30 s |
| Min. adjustable off-delay time: | 0 s |
| Max. permitted off-delay time: | 0 s |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Width: | 22,5 mm |
| Height: | 85,6 mm |
| Depth: | 103,7 mm |
| External power supply required: | no |
| Voltage type (supply voltage): | AC/DC |
| Supply voltage AC 50 Hz: | 24 - 240 V |
| Supply voltage AC 60 Hz: | 24 - 240 V |
| Supply voltage DC: | 24 - 240 V |
| Voltage type (operating voltage): | AC/DC |
| Operating voltage AC 50 Hz: | 24 - 240 V |
| Operating voltage AC 60 Hz: | 24 - 240 V |
| Operating voltage DC: | 24 - 240 V |
| Rated switch current: | 4 A |
