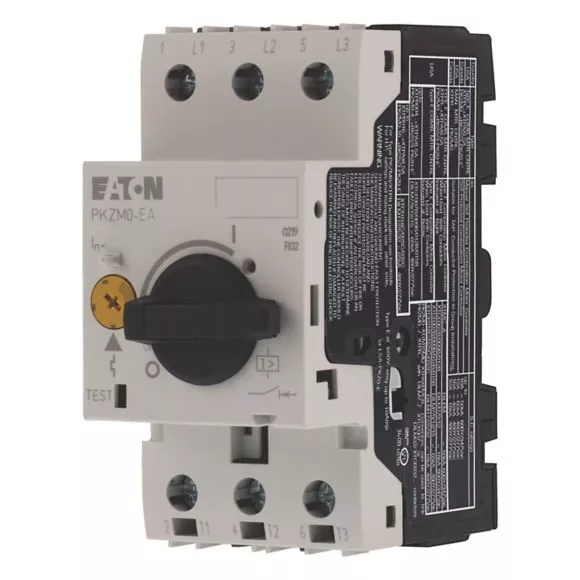

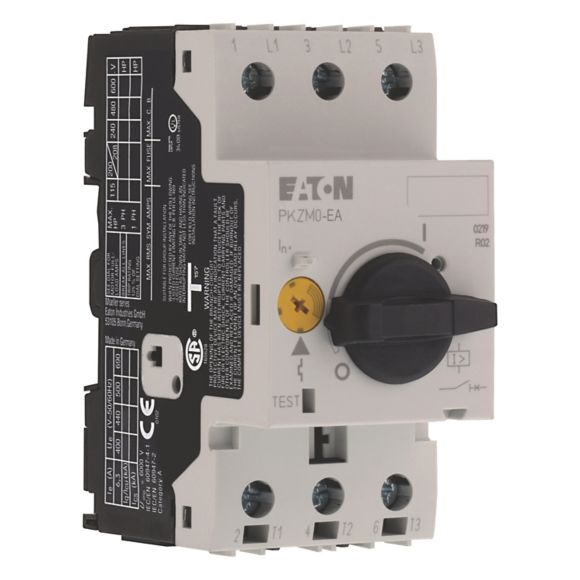

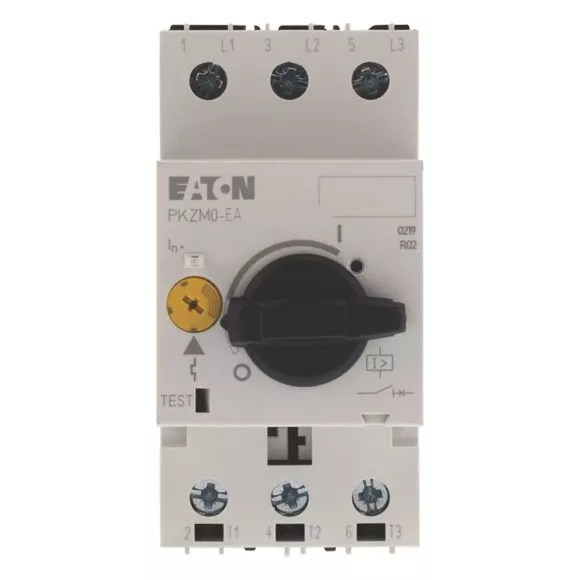

PKZM0-4-EA Wyłącznik silnikowy PKZM0, Ir=2,5-4A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 189901 |
| GTIN(EAN) | 4015081878970 |
| Price unit | piece |
| Catalog price | 303,81 zł (247,00 zł + 23% VAT) |
| Sale price | from 129,32 zł / szt. (105,14 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Motorschutzschalter nach IEC/EN 60947, 3-polig PKZM0 Baugröße, mit einstellbarem Überlastauslöser und unverzögertem Kurzschlussauslöser, phasenausfallempfindlich, Schraub und Schnappmontage, mit Schraubklemmen, Kappeneinbaumaß 45 mm, Bemessungsbetriebsspannung Ue 690 V, Schutzart IP20, fingersicher nach VDE 0106 T. 100, verfügbares Zubehör: Hilfsschalter Modul, Spannungsauslöser, Schalter Modul, Clipsplatte
Additional features:
| Information | Value |
|---|---|
| Net weight: | 284 g |
| Country of origin | Niemcy |
| ETIM class: | Motor protection circuit-breaker |
| With thermal overload protection: | no |
| Phase failure sensitive: | yes |
| Switch off technique: | Thermomagnetic |
| Rated permanent current Iu: | 4 A |
| Rated operation power at AC-3, 230 V: | 0,75 kW |
| Rated operation power at AC-3, 400 V: | 1,5 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Turn button |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
| Degree of protection (IP): | IP20 |
| Height: | 93 mm |
| Width: | 45 mm |
| Depth: | 76 mm |
| Power loss: | 5,33 W |
