M22-D-R-X0/K01 przycisk płaski komplet
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 216510 |
| GTIN(EAN) | 4015082165109 |
| Price unit | piece |
| Catalog price | 79,83 zł (64,90 zł + 23% VAT) |
| Sale price | from 25,88 zł / szt. (21,04 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

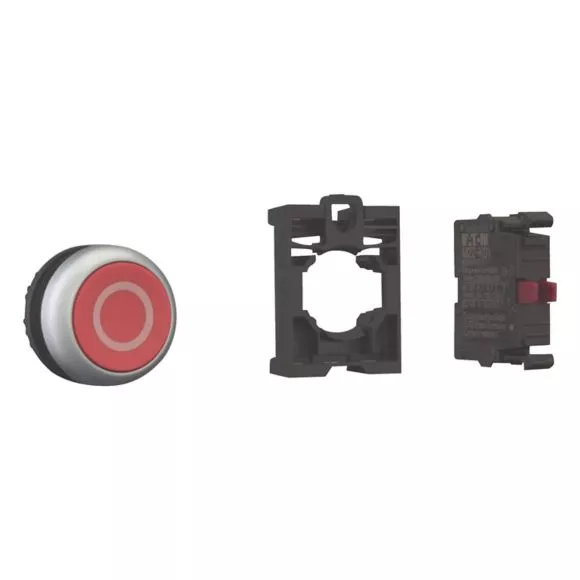

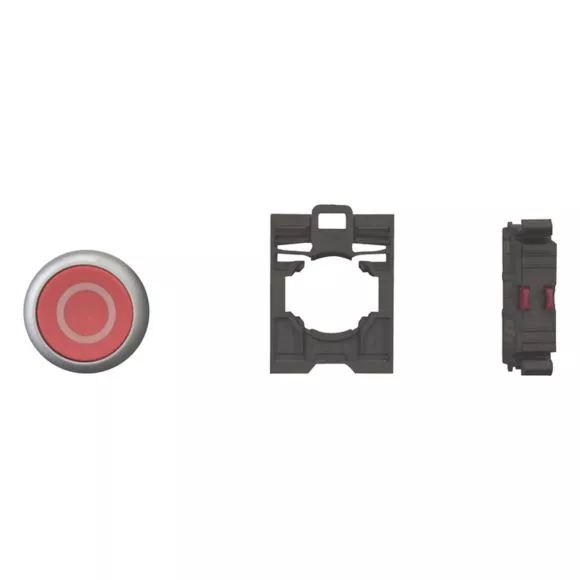

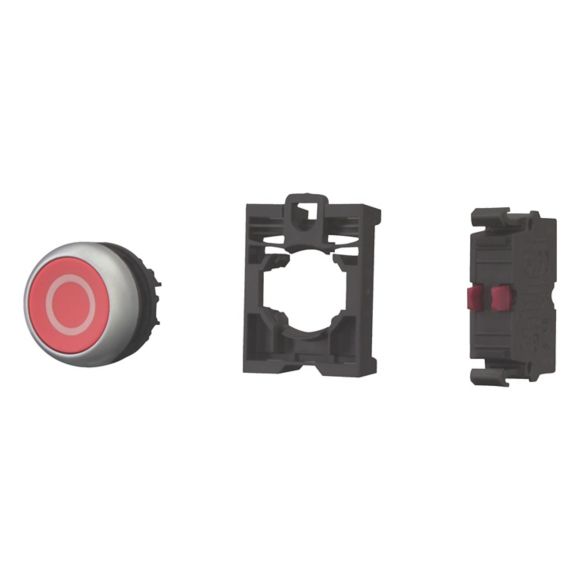

Przycisk, RMQ-Titan, Kompletna jednostka, Projekt: Płaski, z samopowrotem, Typ połączenia: Podłączenie na śrubę, wkładka przycisku: czerwony, Wkładka przycisku podpisana, Stopień ochrony: IP66, IP67, IP69K, Pierścień czołowy: tytan, Podłączanie do SmartWire-DT: nie, Zestyki R = rozwierne: 1 R, Zestyki Uwagi: = funkcja bezpieczeństwa, przez wymuszone otwarcie do IEC/EN 60947-5-1, Skok elementu uruchamiającego i siła załączania zgodnie z DIN EN 60947-5-1, K.5.4.1: mm 4,8, Maksymalny skok: mm 5,7, Minimalna siła do wymuszonego otwarcia: 15 N, Wymuszone otwarcie (ZW): tak, Wymiary przedniej części: 22 x 22, Normy: IEC/EN 60947, VDE 0660
Additional features:
| Information | Value |
|---|---|
| Net weight: | 26 g |
| Country of origin | Niemcy |
| ETIM class: | Push button, complete |
| Hole diameter: | 22,5 mm |
| Colour button: | Red |
| Suitable for illumination: | no |
| Number of command positions: | 1 |
| Spring-return: | yes |
| Type of button: | Flat |
| Colour front ring: | Chrome |
| Type of electric connection: | Screw connection |
| Width opening: | 0 mm |
| Height opening: | 0 mm |
| Degree of protection (IP): | IP67/IP69K |
| Material front ring: | Plastic |
| With front ring: | yes |
| Transparent: | no |
| Construction type lens: | Round |
| Supply voltage lamp: | 0 V |
| Switching function latching: | no |

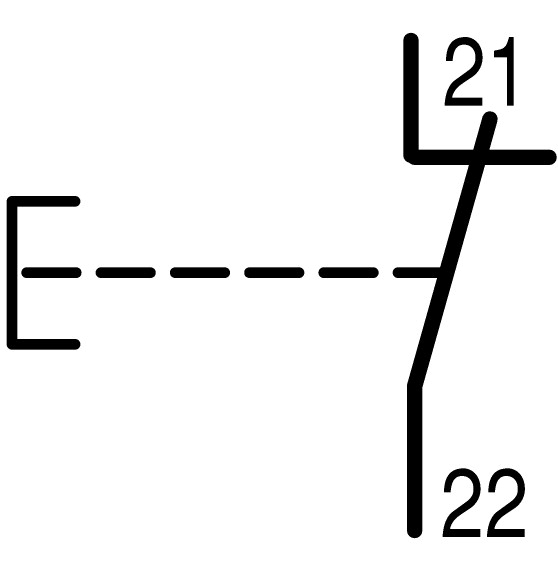

| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Degree of protection (NEMA): | 4X, 13 |
