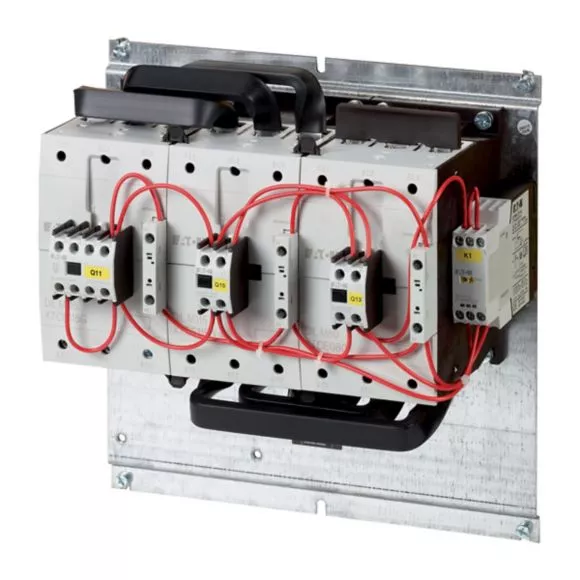

SDAINLM140(230V50HZ,240V60HZ) Zestaw gwiazda-trójkąt I=140A 75kW
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 240009 |
| GTIN(EAN) | 4015082400095 |
| Price unit | piece |
| Catalog price | 10 498,05 zł (8 535,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kombinacja styczników trójkąt-gwiazda, Zastosowanie: Kombinacje styczników do uruchamiania silnika w układzie trójkąt-gwiazda, Częstotliwość pracy: maks. 30 załączeń na godzinę, Akcesoria: Rozruszniki gwiazda-trójkąt SDAINL, Kategoria użytkowa: NAC-3: Standardowe silniki indukcyjne AC: rozruch, wyłączanie w trakcie pracy, Znamionowy prąd roboczy AC-3, 380 V 400 V: Ie= 140 A, Maks. moc znamionowa dla trójfazowych silników, 50 - 60 Hz AC-3 220 V 230 V: P= 37 kW, 380 V 400 V: P = 75 kW, 500 V: P= 90 kW, 660 V 690 V: P = 90 kW, Maks. czas przełączenia: 20 s, Napięcie sterujące: 230 V 50 Hz, 240 V 60 Hz, Napięcie AC/DC: Sterowanie AC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 10,01 kg |
| Country of origin | Rumunia |
| ETIM class: | Combination of contactors |
| Width: | 258 mm |
| Function: | Star-delta contactor |
| Height: | 170 mm |
| Depth: | 174 mm |
| Rated operation power at AC-3, 400 V: | 75 kW |
| Number of normally open contacts as main contact: | 9 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Rated operation current Ie at AC-3, 400 V: | 140 A |
| Rated operation current Ie at AC-1, 400 V: | 140 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rail mounting possible: | no |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type (operating voltage): | AC |
| Degree of protection (IP): | IP00 |
| Type of electrical connection of main circuit: | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Operating voltage AC 50 Hz: | 230 - 690 V |
| Operating voltage AC 60 Hz: | 230 - 690 V |
| Operating voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Degree of protection (NEMA): | Other |
| Rated operation power NEMA: | 0 kW |
