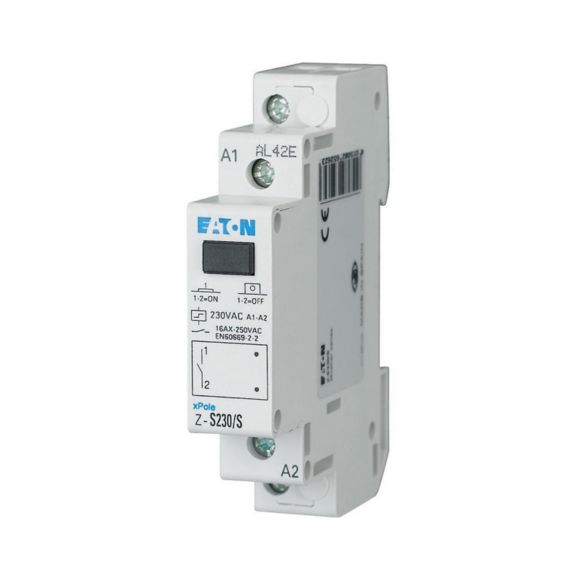

Z-S230/S Przekaźnik impulsowy
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 265262 |
| GTIN(EAN) | 4015082652623 |
| Price unit | piece |
| Catalog price | 211,56 zł (172,00 zł + 23% VAT) |
| Sale price | from 63,66 zł / szt. (51,76 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stromstoßschalter, Steuerspannung 230 V 50 Hz, Funktion: 1 S, Bemessungsbetriebsstrom bei 250 V AC gemäß IEC/EN 60669-2-2: 16 A, Kappenmaß 45 mm, Montagebreite 1 SU (17,5 mm), Hutschienenmontage, Klemmenquerschnitt 0,5 bis 10 mm² eindrähtig und flexibel/0,5 bis 6 mm² flexibel mit Aderendhülse
Additional features:
| Information | Value |
|---|---|
| Net weight: | 131 g |
| Country of origin | Rumunia |
| ETIM class: | Latching relay |
| Function: | Mechanical switch |
| Mounting method: | DIN rail |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 60 mm |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Control voltage 1: | 230 - 230 V |
| Type of control voltage 1: | AC |
| Frequency control voltage 1: | 50 - 50 Hz |
| Control voltage 2: | 0 - 0 V |
| Type of control voltage 2: | AC |
| Frequency control voltage 2: | 0 - 0 Hz |
| Rated switch current: | 16 A |
| Supply voltage: | 24 - 250 V |
| Voltage type (supply voltage): | AC |
| Max. incandescent lamp load: | 1 980 W |
| Max. load fluorescent lamp: | 1 020 VA |
| Max. load fluorescent lamp (Duo circuit): | 1 820 VA |
| Max. load fluorescent lamp (parallel compensated): | 1 105 VA |
| Max. switching current (cos phi = 0.6): | 24 A |
| Suitable for manual operation: | yes |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
ELEKTRO-HURT Gniezno/magazyn centralny/
Gniezno, Słoneczna 40a magazyn centralny
Gniezno, Słoneczna 40a magazyn centralny
Distance:
3 sztuki
63,66 zł/szt.
ELEKTRO-HURT o/Krotoszyn
Krotoszyn, Rawicka 3
Krotoszyn, Rawicka 3
Distance:
4 sztuki
63,66 zł/szt.
ELEKTRO-HURT o/Leszno
Leszno, Witolda 3
Leszno, Witolda 3
Distance:
1 sztuka
63,66 zł/szt.
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
Eaton Electric Sp. z o.o.
Galaktyczna 30, 80-299 Gdańsk, Polska
mail: wsparcietech@eaton.com
www: eaton.com
|
| Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
| Updated: | 2025-06-11 11:42:20 |
| Files to download: | |
| External links: |
