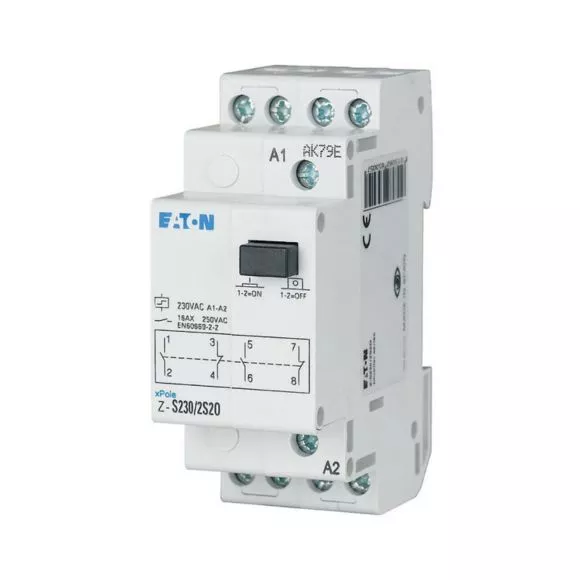

Z-S230/2S2O Przekaźnik impulsowy
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 265305 |
| GTIN(EAN) | 4015082653057 |
| Price unit | piece |
| Catalog price | 706,64 zł (574,50 zł + 23% VAT) |
| Sale price | from 176,33 zł / szt. (143,36 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stromstoßschalter, Steuerspannung 230 V 50 Hz, Funktion: 2 S und 2 Ö, Bemessungsbetriebsstrom bei 250 V AC gemäß IEC/EN 60669-2-2: 16 A, Kappenmaß 45 mm, Montagebreite 2 SU (35 mm), Hutschienenmontage, Klemmenquerschnitt 0,5 bis 10 mm² eindrähtig und flexibel/0,5 bis 6 mm² flexibel mit Aderendhülse
Additional features:
| Information | Value |
|---|---|
| Net weight: | 263 g |
| Country of origin | Rumunia |
| ETIM class: | Latching relay |
| Function: | Mechanical switch |
| Mounting method: | DIN rail |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 60 mm |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 2 |
| Number of contacts as change-over contact: | 0 |
| Type of control voltage 1: | AC |
| Type of control voltage 2: | AC |
| Rated switch current: | 16 A |
| Voltage type (supply voltage): | AC |
| Max. incandescent lamp load: | 1 980 W |
| Max. load fluorescent lamp: | 1 020 VA |
| Max. load fluorescent lamp (Duo circuit): | 1 820 VA |
| Max. load fluorescent lamp (parallel compensated): | 1 105 VA |
| Max. switching current (cos phi = 0.6): | 24 A |
| Suitable for manual operation: | yes |
