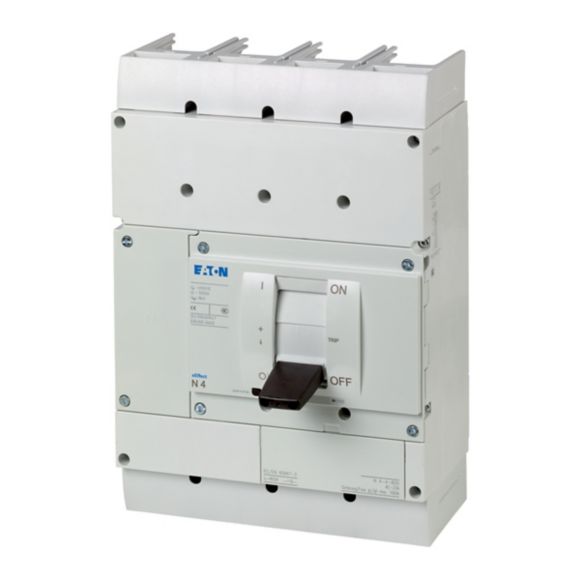

N4-4-1600 Rozłącznik mocy 4-bieg. 1600A BG4
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 266032 |
GTIN(EAN) | 4015082660321 |
Price unit | piece |
Catalog price | 39 801,96 zł (32 359,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłączniki N.. -..mają cechy odłączników do uziemionych sieci IT. Akcesoria takie jak np. zestawu połączeniowe, zaciski i uchwyty obrotowe sprzęgła drzwi pozwalają na indywidualny montaż w różnych systemach rozdzielaczy. Łączniki pomocnicze, wyzwalacze napięcia i napędy zdalne umożliwiają sygnalizowanie i automatyzację. Wskazówki: cechy wyłączników głównych w tym wymuszenie zgodnie z normą IEC/EN 60204 i VDE 0113. Cechy odłączania zgodnie z normą IEC/EN 60947-3 i VDE 0660. Zabezpieczenie przed dotknięciem zgodnie z VDE 0160 część 100.
Additional features:
Information | Value |
---|---|
Net weight: | 22 kg |
ETIM class: | Switch disconnector (low voltage) |
Version as main switch: | yes |
Version as maintenance-/service switch: | yes |
Version as safety switch: | no |
Version as emergency stop installation: | yes |
Version as reversing switch: | no |
Number of switches: | 1 |
Max. rated operation voltage Ue AC: | 690 V |
Rated operating voltage: | 690 - 690 V |
Rated permanent current at AC-23, 400 V: | 0 A |
Rated permanent current at AC-21, 400 V: | 0 A |
Rated operation power at AC-3, 400 V: | 0 kW |
Rated short-time withstand current lcw: | 25 kA |
Rated operation power at AC-23, 400 V: | 800 kW |
Switching power at 400 V: | 0 kW |
Conditioned rated short-circuit current Iq: | 0 kA |
Number of poles: | 4 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
Motor drive optional: | yes |
Motor drive integrated: | no |
Voltage release optional: | yes |
Device construction: | Built-in device fixed built-in technique |
Suitable for floor mounting: | yes |
Suitable for front mounting 4-hole: | no |
Suitable for front mounting centre: | no |
Suitable for distribution board installation: | yes |
Suitable for intermediate mounting: | yes |
Colour control element: | Black |
Type of control element: | Rocker lever |
Interlockable: | yes |
Type of electrical connection of main circuit: | Bolt connection |
Degree of protection (IP), front side: | IP20 |
Degree of protection (NEMA): | Other |
