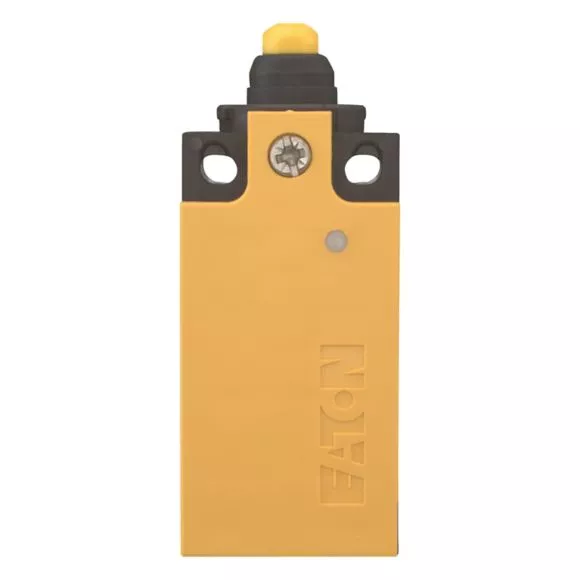

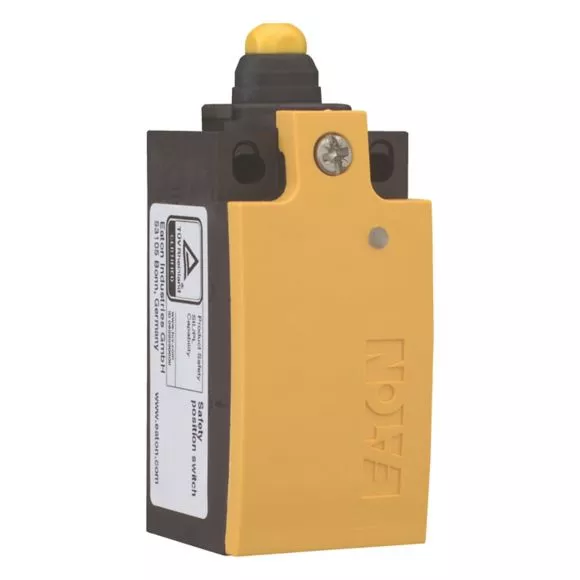

LSE-11 Łącznik krańcowy LS nastaw.elektroniczni
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 266121 |
| GTIN(EAN) | 4015082661212 |
| Price unit | piece |
| Catalog price | 583,02 zł (474,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Krańcowy łącznik bezpieczeństwa, Funkcja podstawowa: Łączniki krańcowe, Krańcowe łączniki bezpieczeństwa, Odniesienie grupy części LSE, Zacisk śrubowy: Łącznik krańcowy z elektronicznie regulowanym punktem przełączenia, Stopień ochrony: IP66, IP67, Charakterystyka: Moduł podstawowy, możliwość rozbudowy, Temperatura otoczenia: od -25 do +70°C, Opis: Optyczny wskaźnik stanu, porównywalna z funkcją wymuszonego otwarcia, Urządzenie przechodzi w tryb bezpieczeństwa przy wysokim poziomie zakłóceń., Można stosować w obwodach bezpieczeństwa, częściowa odporność na zwarcie, Ponowne uruchomienie po resecie, Indywidualne ustawienie punktu przełączenia, Zestyki Z = zwierne: 1 Z, Zestyki R = rozwierne: 1 R, Ue= 12 - 30 V DC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 48 g |
| Country of origin | Niemcy |
| ETIM class: | End switch |
| Width sensor: | 31 mm |
| Diameter sensor: | 0 mm |
| Height of sensor: | 61 mm |
| Length of sensor: | 33,5 mm |
| Rated operation current Ie at AC-15, 24 V: | 0 A |
| Rated operation current Ie at AC-15, 125 V: | 0 A |
| Rated operation current Ie at AC-15, 230 V: | 0 A |
| Rated operation current Ie at DC-13, 24 V: | 0,2 A |
| Rated operation current Ie at DC-13, 125 V: | 0 A |
| Rated operation current Ie at DC-13, 230 V: | 0 A |
| Switching function: | Slow-action switch |
| Output electronic: | yes |
| Number of safety auxiliary contacts: | 0 |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Plastic |
| Coating housing: | Other |
| Type of control element: | Plunger |
| Alignment of the control element: | Roller cam straight |
| Type of electric connection: | Cable entry metrical |
| With status indication: | yes |
| Suitable for safety functions: | yes |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP66/IP67 |
| Degree of protection (NEMA): | Other |
| Switching function latching: | no |
| Forced opening: | no |
