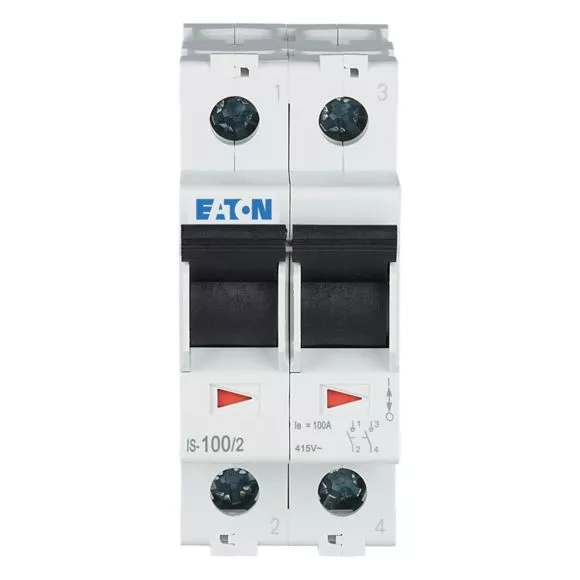

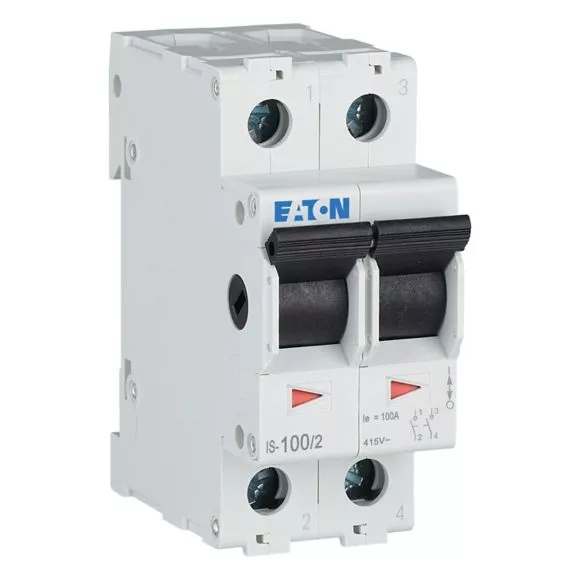

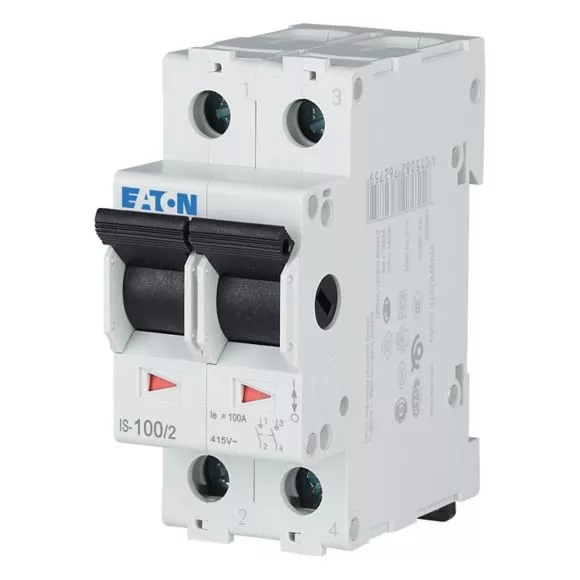

IS-100/2 Rozłącznik główny izolacyjny
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 276283 |
| GTIN(EAN) | 4015082762834 |
| Price unit | piece |
| Catalog price | 157,69 zł (128,20 zł + 23% VAT) |
| Sale price | from 46,74 zł / szt. (38,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Schalter mit Trennfunktion, Typ gemäß IEC/EN 60947-3, Kontakt mit hoher Verschleißfähigkeit, Sprungeinschaltung, Knebelgriff schwarz, Anschlussquerschnitt 50 mm², mit Xpole Schutzschaltgeräten bei Verwendung der Maulklemme in Kombination mit Standard Gabelverschienung
Additional features:
| Information | Value |
|---|---|
| Net weight: | 207 g |
| Country of origin | Rumunia |
| ETIM class: | Main switch for distribution board |
| Switching function: | Other |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Number of poles: | 2 |
| Rated current: | 100 A |
| Rated voltage: | 415 V |
| Min. rated voltage: | 240 V |
| Rated switching capacity: | 10 kA |
| Short-circuit breaking capacity (Icw): | 2 kA |
| Voltage type: | AC |
| With signal lamp: | no |
| Colour calotte: | Other |
| Lamp type: | Other |
| Lamp socket: | Other |
| Max. lamp power: | 0 W |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 69,5 mm |
| Degree of protection (IP): | IP40 |
| Imprint/indication: | Symbol "arrows" |
| Forced segregation according to DIN VDE 0113: | no |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
KABIS O/Wenecka Warszawa
Warszawa, Wenecka 10
Warszawa, Wenecka 10
Distance:
40 sztuk
46,74 zł/szt.
Buy online
Buy / order
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
Eaton Electric Sp. z o.o.
Galaktyczna 30, 80-299 Gdańsk, Polska
mail: wsparcietech@eaton.com
www: eaton.com
|
| Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
| Updated: | 2025-06-11 11:42:17 |
| Files to download: | |
| External links: |
