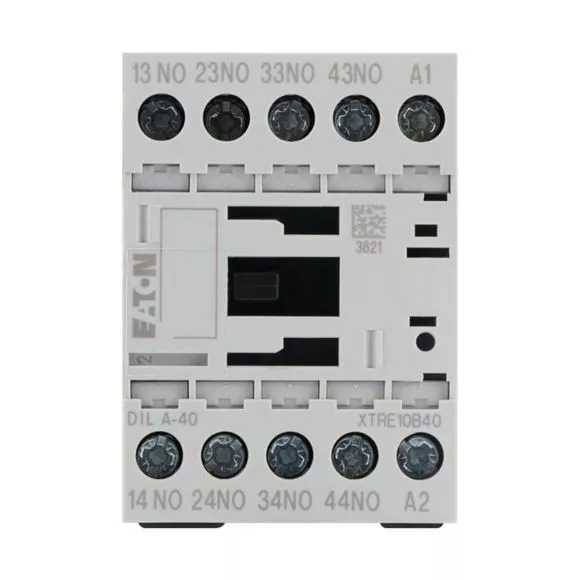

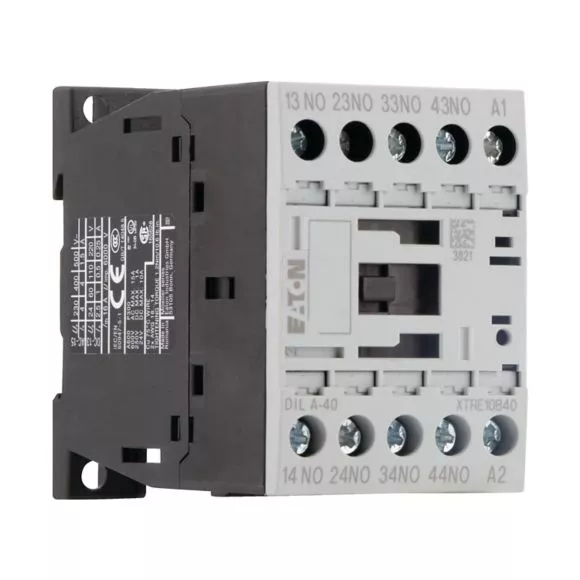

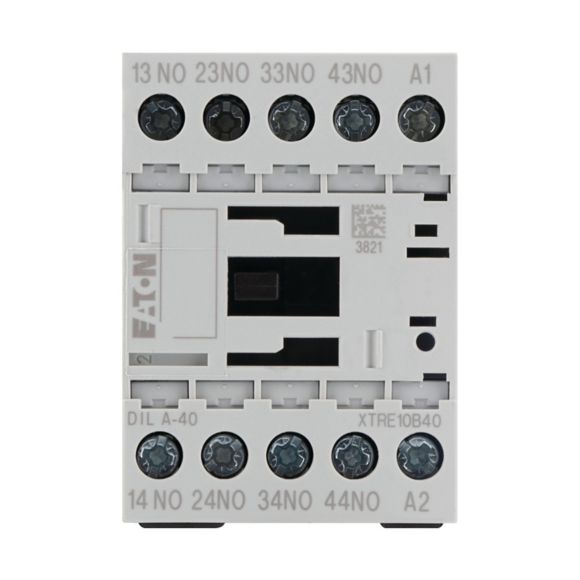

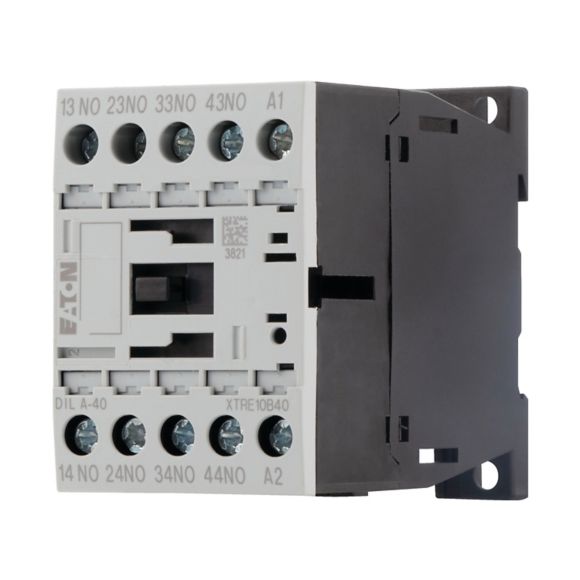

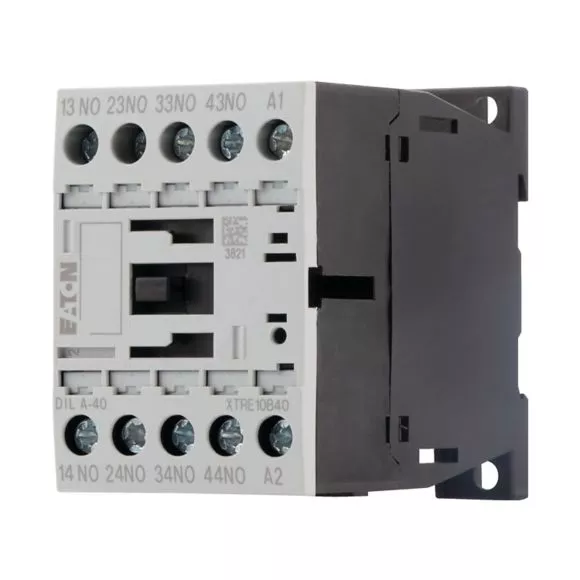

DILA-40(230V50HZ,240V60HZ) STYCZNIK POMOCNICZY 4Z 0R
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 276329 |
| GTIN(EAN) | 4015082763299 |
| Price unit | piece |
| Catalog price | 399,75 zł (325,00 zł + 23% VAT) |
| Sale price | from 80,28 zł / szt. (65,27 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Schakelaarrelais, Assortiment: DILA-relais, Toepassing: Schakelaarrelais, Beschrijving: Basisapparaten met dwangmatige bedieningscontacten, Aansluittechniek: Schroefaansluitingen, Nominale bedrijfsstroom AC-15 220 V 230 V 240 V: Ie= 4 A, 380 V 400 V 415 V: Ie= 4 A, Contacten N/O = normaal open: 4 N/O, Codenummer en versie van combinatie Specifiek nummer: 40E, Kan worden gecombineerd met hulpcontactmodule: DILA-XHI(V)…, Aanspreekspanning: 230 V 50 Hz, 240 V 60 Hz, Spanning AC/DC: AC-bediening, Beschermingsgraad: IP20, Instructies: Contactnummers volgens EN 50011, Spoelaansluitcoderingen volgens EN 50005, Normen: IEC/EN 60947, EN 60947-5-1
Additional features:
| Information | Value |
|---|---|
| Net weight: | 240 g |
| Country of origin | Niemcy |
| ETIM class: | Contactor relay |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie, 400 V: | 4 A |
| Connection type auxiliary circuit: | Screw connection |
| Mounting method: | DIN-rail/screw |
| Interface: | no |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 4 |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| With LED indication: | no |
| Suitable for manual operation: | no |
| Rated operation current: | 16 A |
| Operating voltage AC 50 Hz: | 17 - 500 V |
| Operating voltage AC 60 Hz: | 17 - 500 V |
| Operating voltage DC: | 24 - 220 V |
| Voltage type (operating voltage): | AC/DC |
| Rated switch current: | 16 A |
| Width: | 45 mm |
| Height: | 68 mm |
| Depth: | 75 mm |
