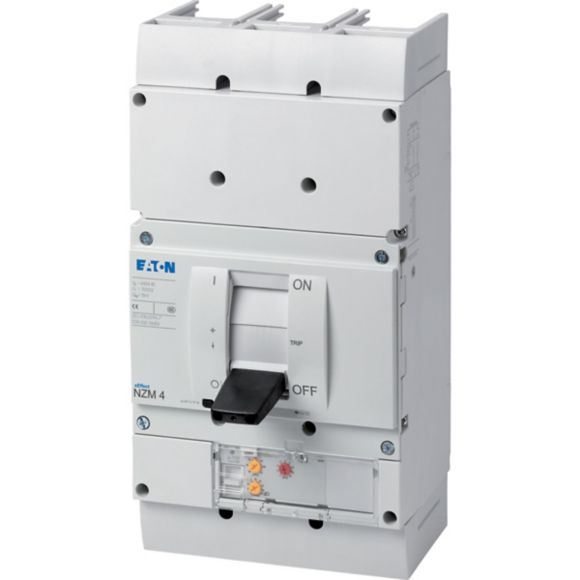

NZMH4-ME1400-S1 Wyłącznik mocy 3-bieg. 1400A 1000V
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 290385 |
| GTIN(EAN) | 4015082903855 |
| Price unit | piece |
| Catalog price | 72 330,92 zł (58 805,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
De vermogensschakelaars uit de serie NZM..-ME zijn met slechts vier compacte afmetingen geschikt voor alle toepassingsgevallen en zijn geschikt voor de IEC-markt. Modulaire functiegroepen maken montage altijd flexibel. Met elektronische ontgrendeling voor motorbeveiliging met fase-uitvalgevoeligheid. Opmerkingen: effectieve waardemeting en thermisch geheugen, instelbare traagheidsinstelling om stroompieken te overwinnen tr: 2-20 bij 6 x Ir ook oneindig (zonder overbelastingsvrijgave), NZM...S1-aansluitingstype: NZM...XKSA deksel vereist, NZM4...S1-klemtype: Geïsoleerde railaansluiting (NZM4-XKS schroefaansluiting)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 21 kg |
| Country of origin | Rumunia |
| ETIM class: | Motor protection circuit-breaker |
| Width: | 210 mm |
| Height: | 207 mm |
| Depth: | 401 mm |
| Rated operation power at AC-3, 400 V: | 800 kW |
| With integrated auxiliary switch: | no |
| Rated permanent current Iu: | 1 400 A |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated operating voltage: | 1 000 - 1 000 V |
| Overload release current setting: | 700 - 1 400 A |
| Degree of protection (IP): | IP20 |
| With thermal overload protection: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Switch off technique: | Electronic |
| Rated operation power at AC-3, 230 V: | 450 kW |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
| Adjustment range undelayed short-circuit release: | 1 400 - 19 600 A |
| Phase failure sensitive: | yes |
| Device construction: | Built-in device fixed built-in technique |
