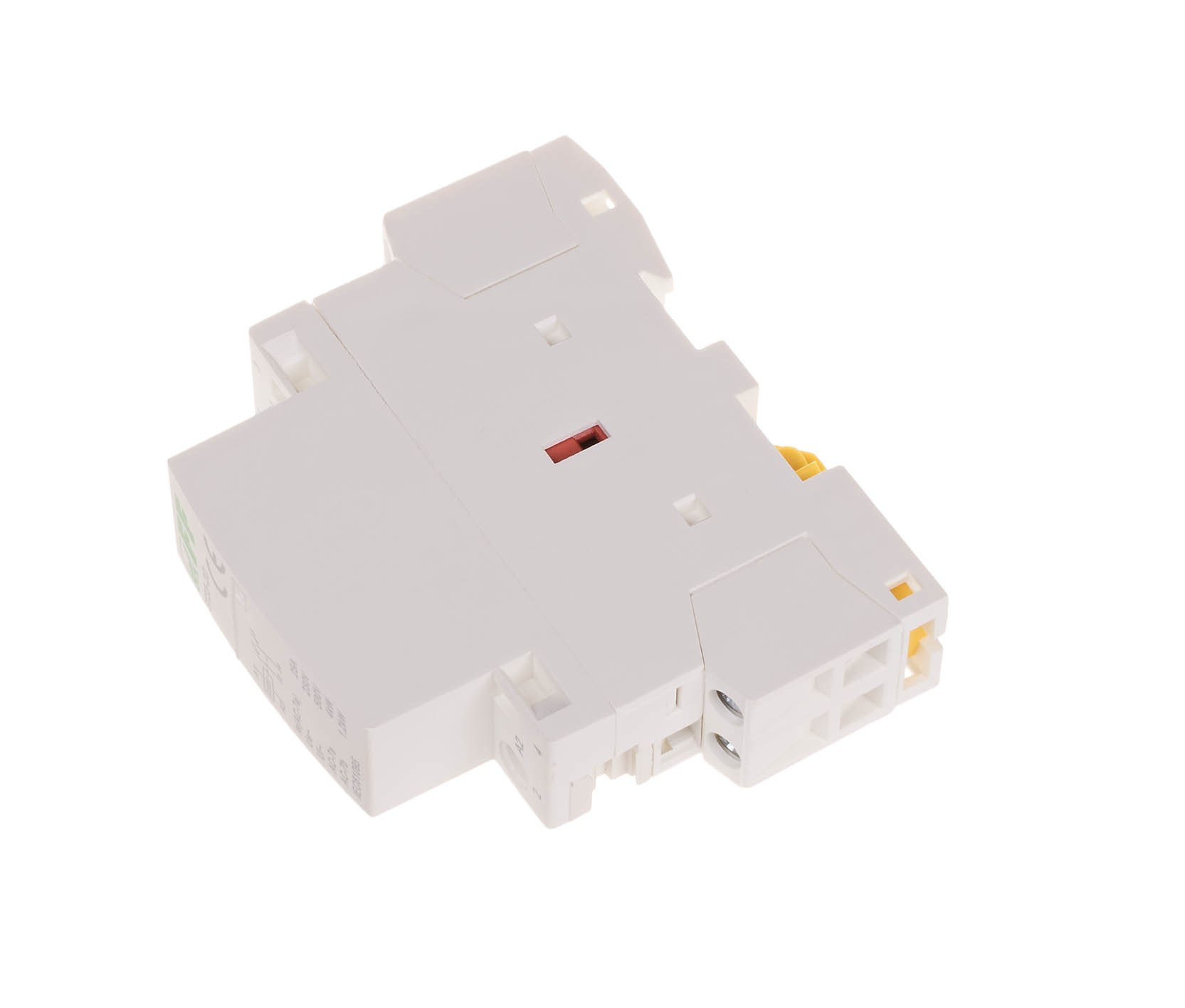

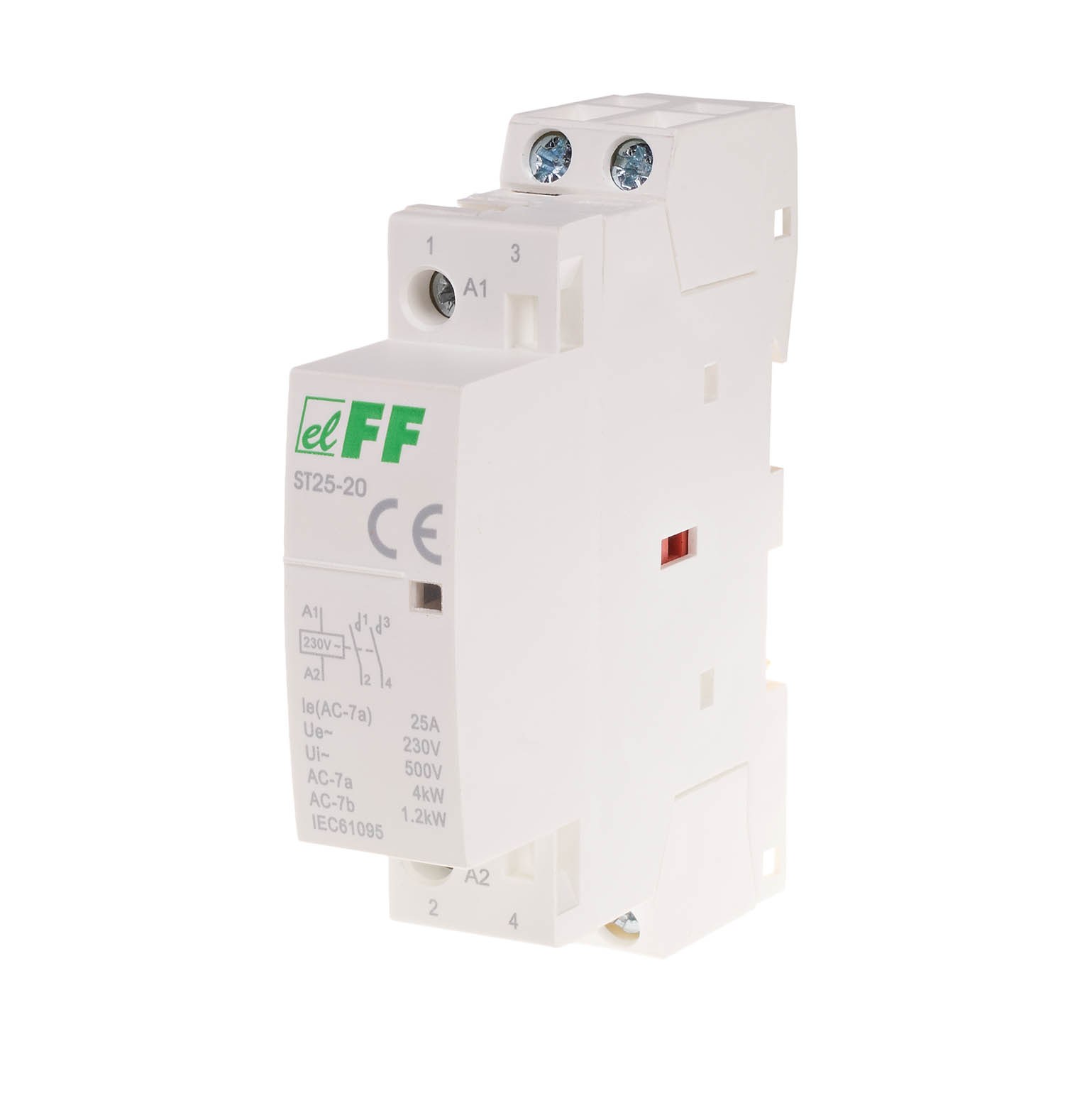

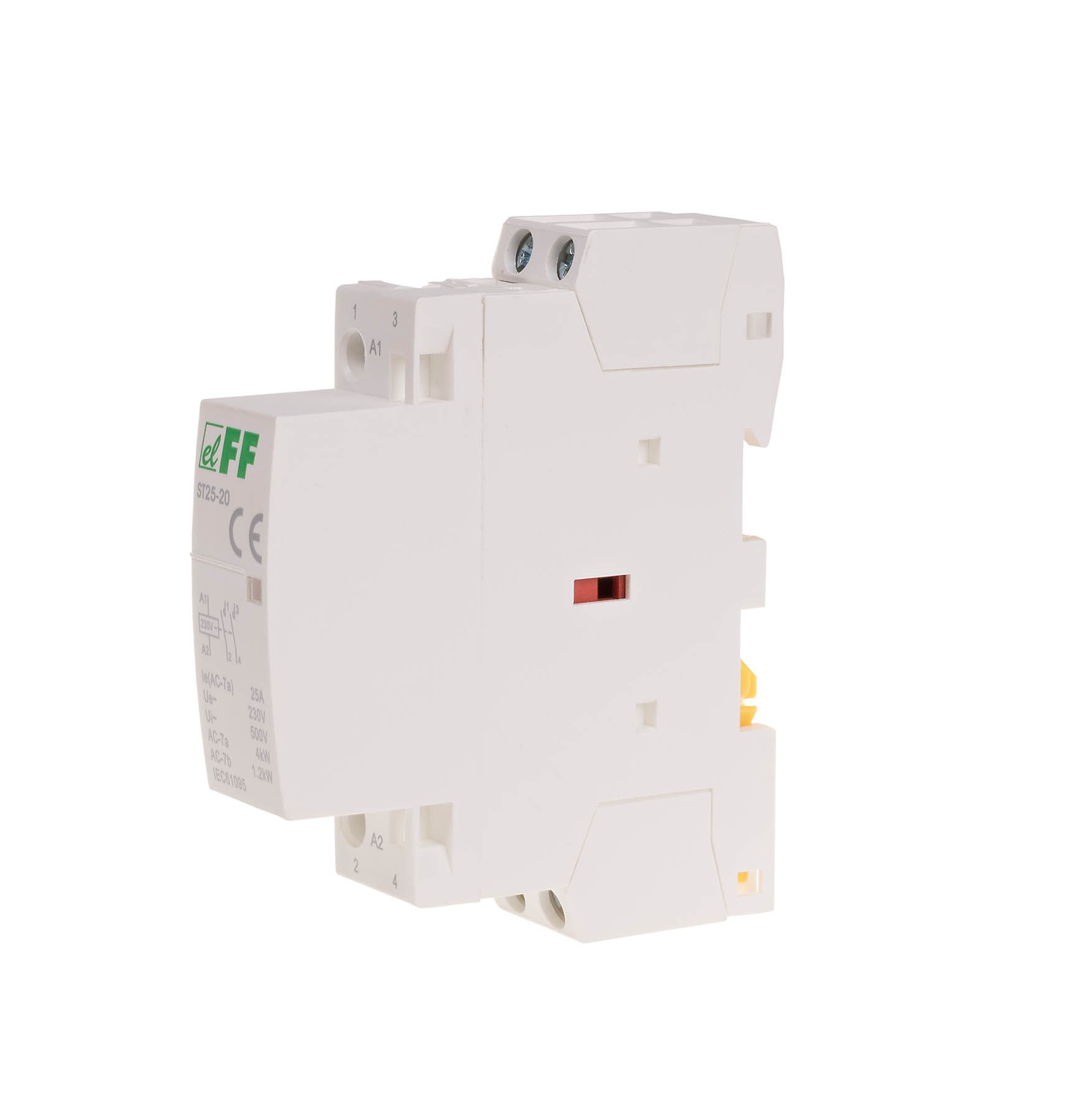

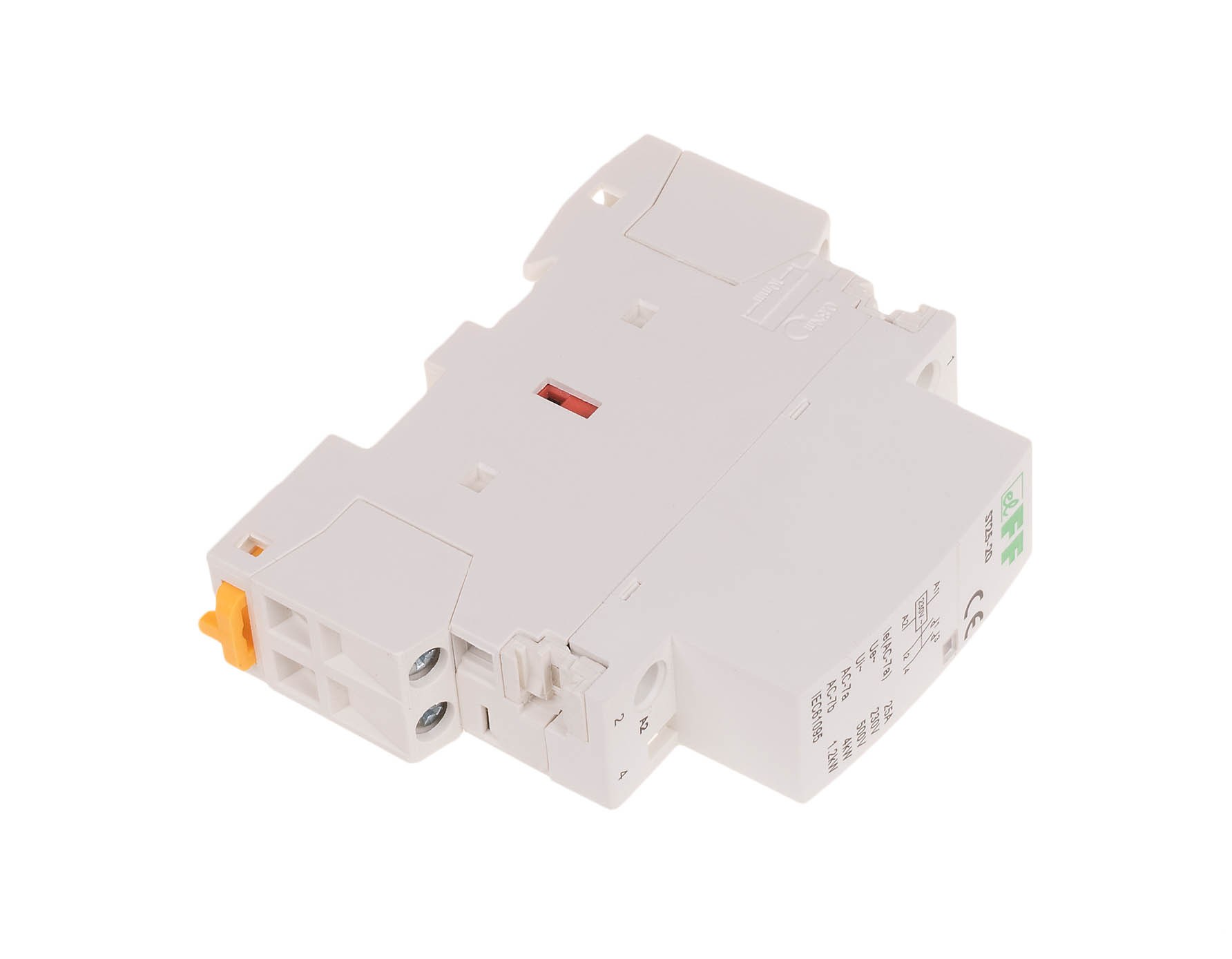

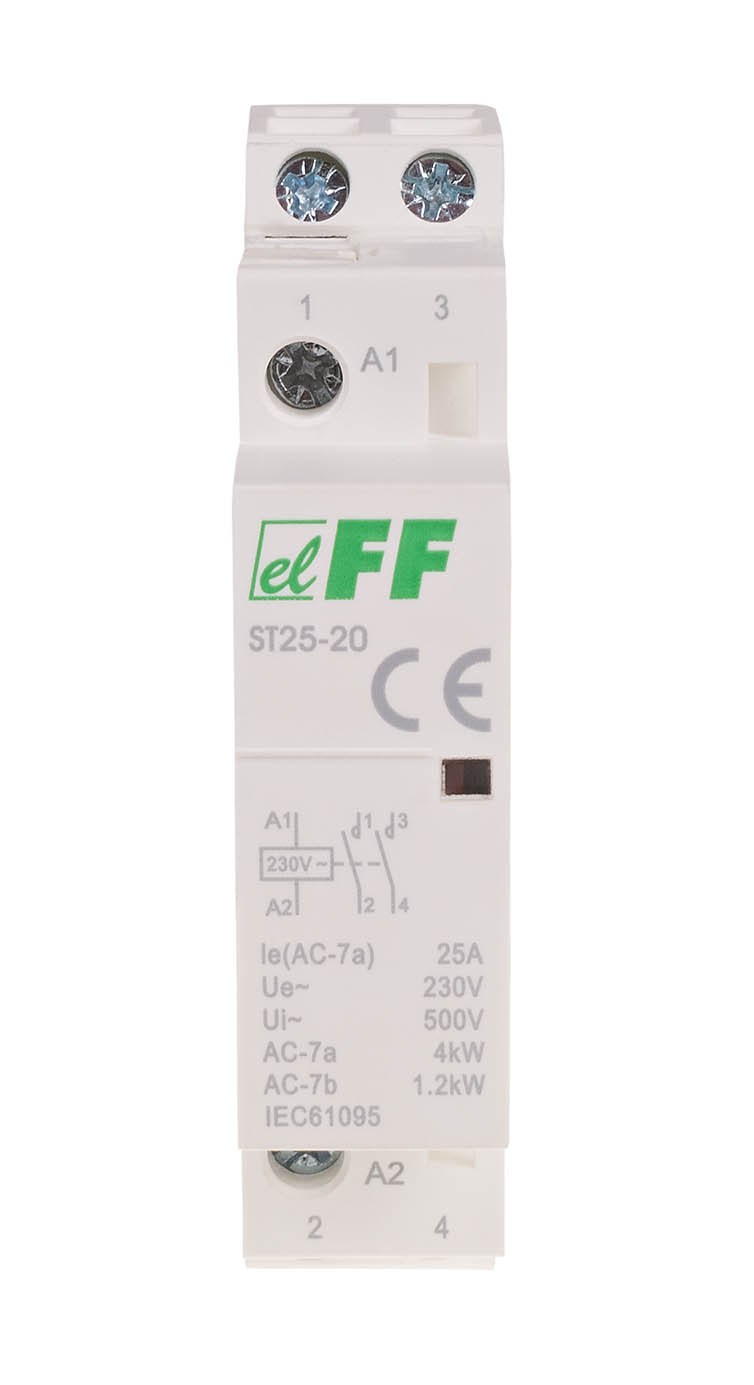

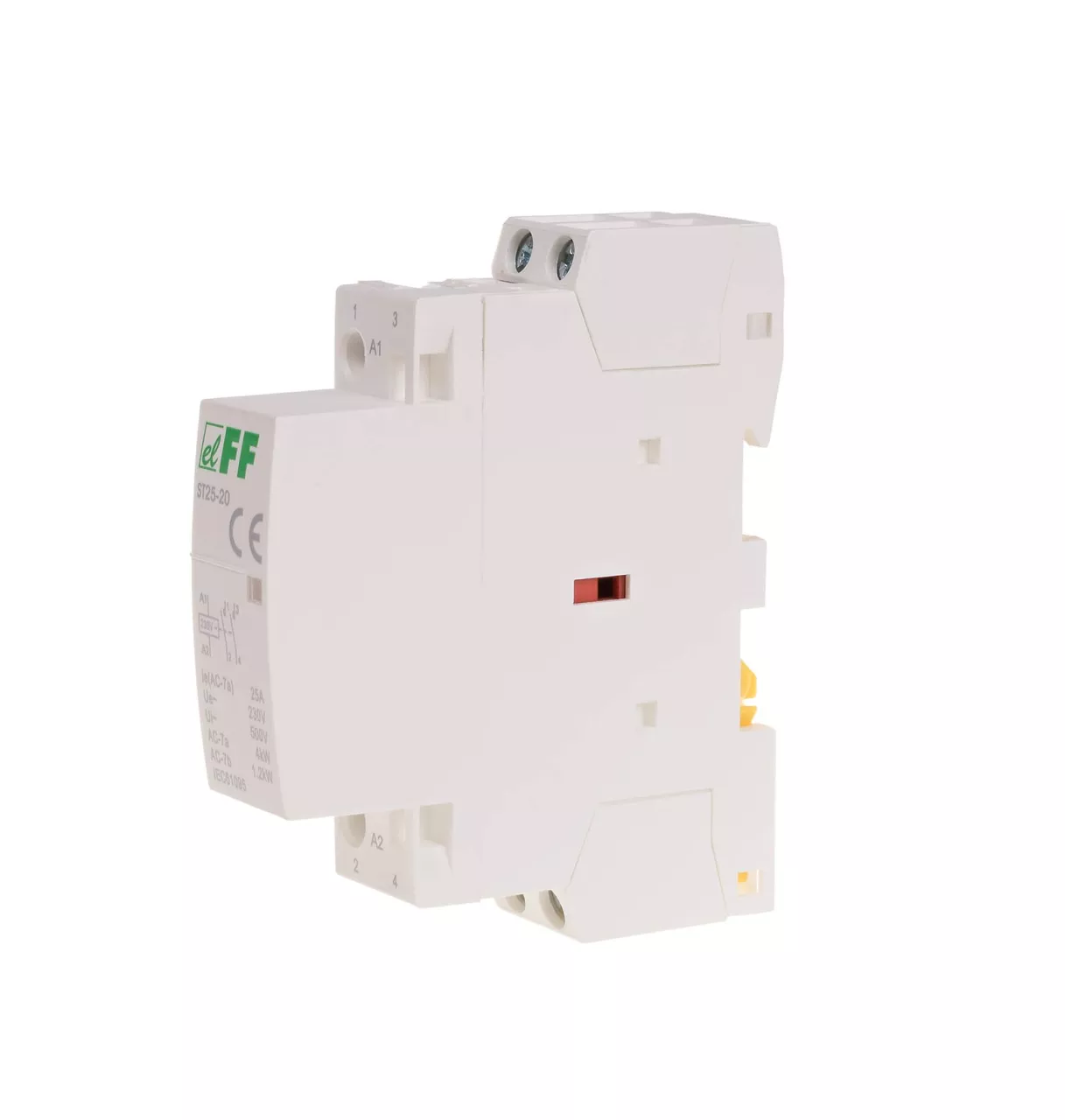

Stycznik modułowy, montaż na szynie, ST25-20
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Symbol | ST25-20 |
GTIN(EAN) | 5908312593997 |
Price unit | piece |
Catalog price | 83,64 zł (68,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Uchwyć Czas !
Dokonaj zakupu produktów marki F&F Filipowski na kwotę ponad 5000 tys. brutto, a w prezencie otrzymasz kamerę sportową marki GOTZE& JENSEN S Line !
-
Kupuj produkty F&F i zgarniaj nagrody na majówkę
Zrób jednorazowe zamówienia B2B na produkty marki F&F i odbierz koc piknikowy lub koc piknikowy
Description:
Napięcie zasilania cewki 230 V AC Konfiguracja styków 2 × NO Prąd torów głównych 25 A Moc łączeniowa kat. AC1 (230V) 4 kW Moc łączeniowa kat. AC3 (230V) 1,3 kW Nr normy IEC 61095 Trwałość łączeniowa elektryczna 1x10⁵ Trwałość łączeniowa mechaniczna 1x10⁶ Waga 106 g Zaciski śrubowe 4 mm² Napięcie izolacji 4 kV Pobór mocy 2,2 W Temperatura pracy -25 ÷ 50 °C Wymiary 1 moduł (18 mm) Montaż na szynie 35 mm Stopień ochrony IP20
Additional features:
Information | Value |
---|---|
Gross weight: | 128 g |
ETIM class: | Installation contactor for distribution board |
Rated operating voltage: | 230 - 230 V |
Rated operation current: | 25 A |
Rated excitation voltage: | 230 - 230 V |
Voltage type (operating voltage): | AC |
Voltage type (excitation voltage): | AC |
Number of contacts as normally open contact: | 2 |
Number of contacts as normally closed contact: | 0 |
Max. incandescent lamp load: | 4000 W |
Slider for hand switch: | no |
Width in number of modular spacings: | 2 |
Built-in depth: | 65 mm |
Additional equipment possible: | no |
Degree of protection (IP): | IP20 |
