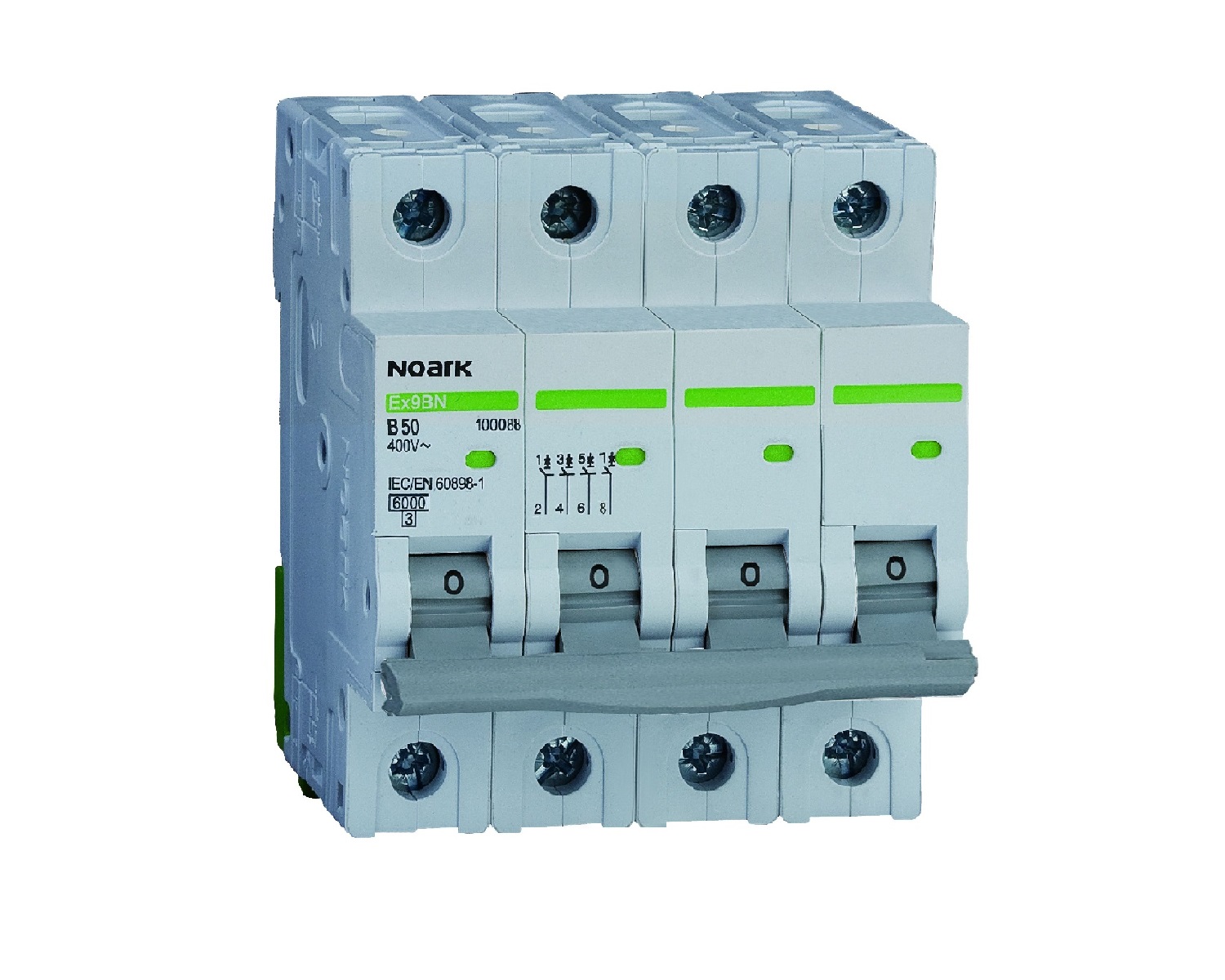

Ex9BN 4P C63 Wył. nadpr. 6 kA, ch-ka C, 63 A, 4-bieg.
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 100179 |
| GTIN(EAN) | 8592765001801 |
| Price unit | piece |
| Catalog price | 339,73 zł (276,20 zł + 23% VAT) |
| Sale price | from 113,76 zł / szt. (92,49 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 480 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Release characteristic: | C |
| Number of poles (total): | 4 |
| Number of protected poles: | 4 |
| Rated current: | 63 A |
| Rated voltage: | 400 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Voltage type: | AC |
| Current limiting class: | 3 |
| Frequency: | 50 - 60 Hz |
| Concurrently switching neutral conductor: | no |
| Over voltage category: | 3 |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 4 |
| Built-in depth: | 74 mm |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP20 |
| Rated insulation voltage Ui: | 690 V |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
| Power loss: | 24,8 W |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -30 - 70 °C |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Explosion-proof: | no |
