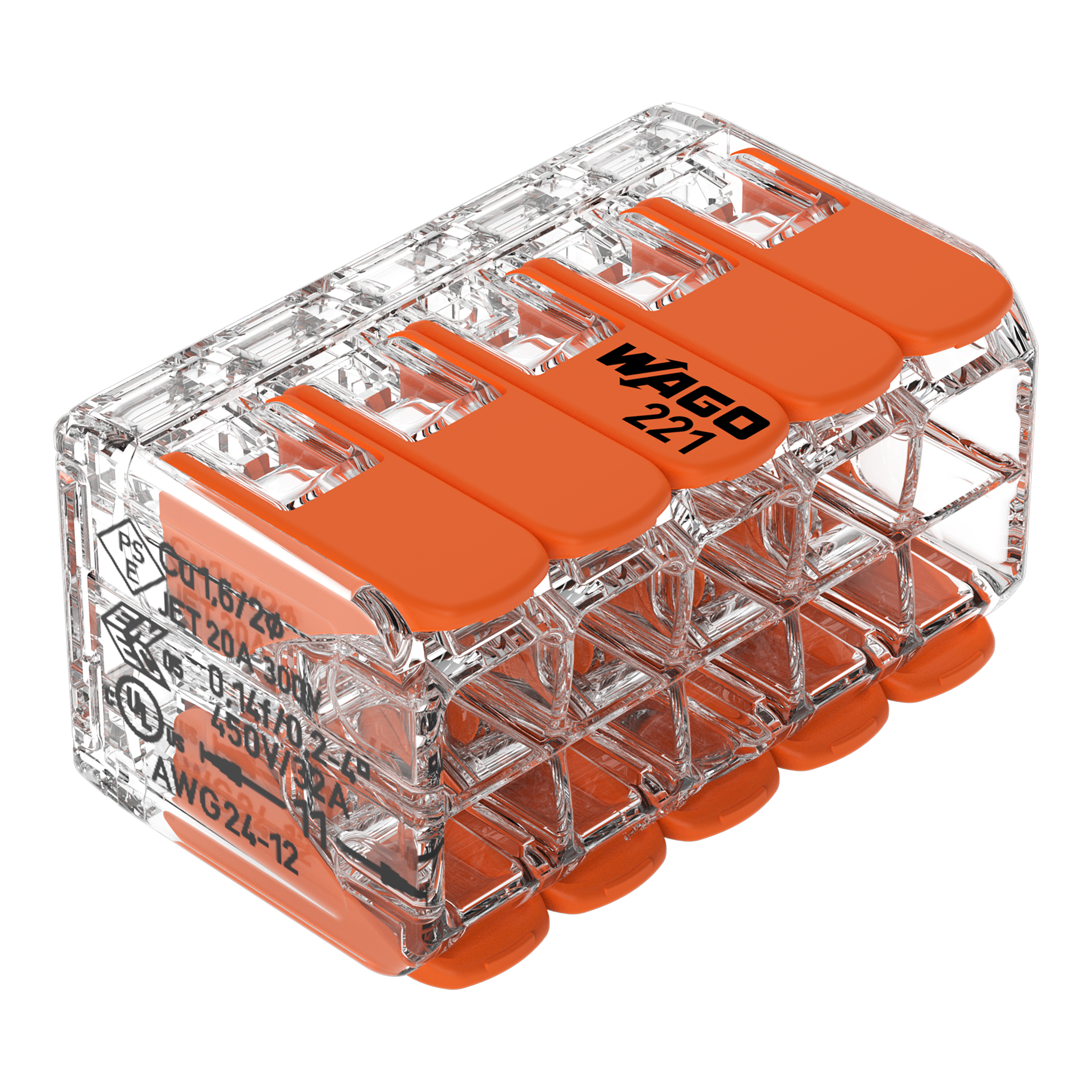

Złączka instalacyjna z dźwignią do wszystkich rodzajów przewodów, transparentny
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 221-420 |
| GTIN(EAN) | 4066966611663 |
| Price unit | piece |
| Catalog price | 9,96 zł (8,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
złączka instalacyjna z dźwignią; do wszystkich rodzajów przewodów; maks. 4 mm²; 10-przew.; kolor obudowy przezroczysty; temperatura otoczenia maks. 85°C (T85); 4,00 mm²; transparentny
Additional features:
| Information | Value |
|---|---|
| Net weight: | 7,01 g |
| Country of origin | Niemcy |
| ETIM class: | Push in terminal |
| With operation lever: | yes |
| Transparent: | yes |
| Suitable for solid conductors: | yes |
| AWG-range: | 12 - 24 |
| Suitable for flexible conductors: | yes |
| Suitable for multi-wire conductors: | yes |
| Number of clamp positions: | 10 |
| Colour: | Colourless |
| Conductor cross section flexible (fine-strand) with cable end sleeve: | 0,14 - 4 mm² |
| Conductor cross section solid (solid, stranded): | 0,2 - 4 mm² |
| Nominal cross section: | 0,2 - 4 mm² |
| Nominal voltage: | 450 V |
| Nominal current: | 32 A |
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
WAGO GmbH & Co. KG
Hansastraße 27, 32423 Minden, Niemcy
mail: wago.elwag@wago.com
www: wago.com
|
| Bezpieczeństwo towaru | Dostawca zapewnia o bezpieczeństwie oferowanego produktu |
| Updated: | 2025-02-20 14:57:13 |
| Files to download: | |
| External links: |
