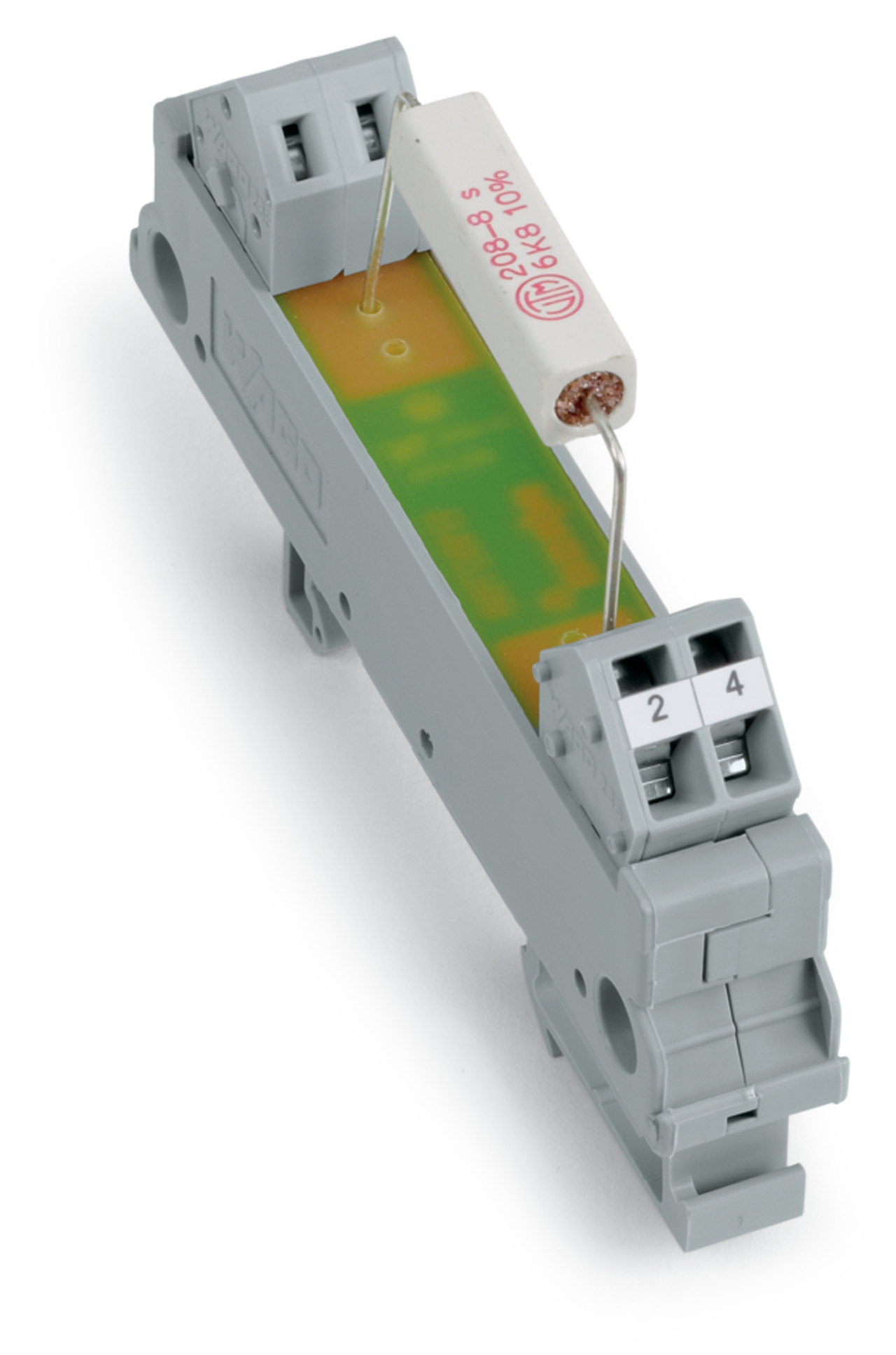

Moduł z opornikiem CM-R 1x 9K1
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 289-128 |
GTIN(EAN) | 4044918147620 |
Price unit | piece |
Catalog price | 143,91 zł (117,00 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 19,12 g |
ETIM class: | Component terminal block |
Material insulation body: | Thermoplastic |
Height: | 85 mm |
Operating temperature: | -20 - 50 °C |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of component: | Resistor |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Number of levels: | 0 |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Explosion-tested version 'Ex e': | no |
Number of clamp positions per level: | 0 |
Internally connected stages: | no |
Colour: | Grey |
Width: | 13 mm |
Depth: | 34 mm |
