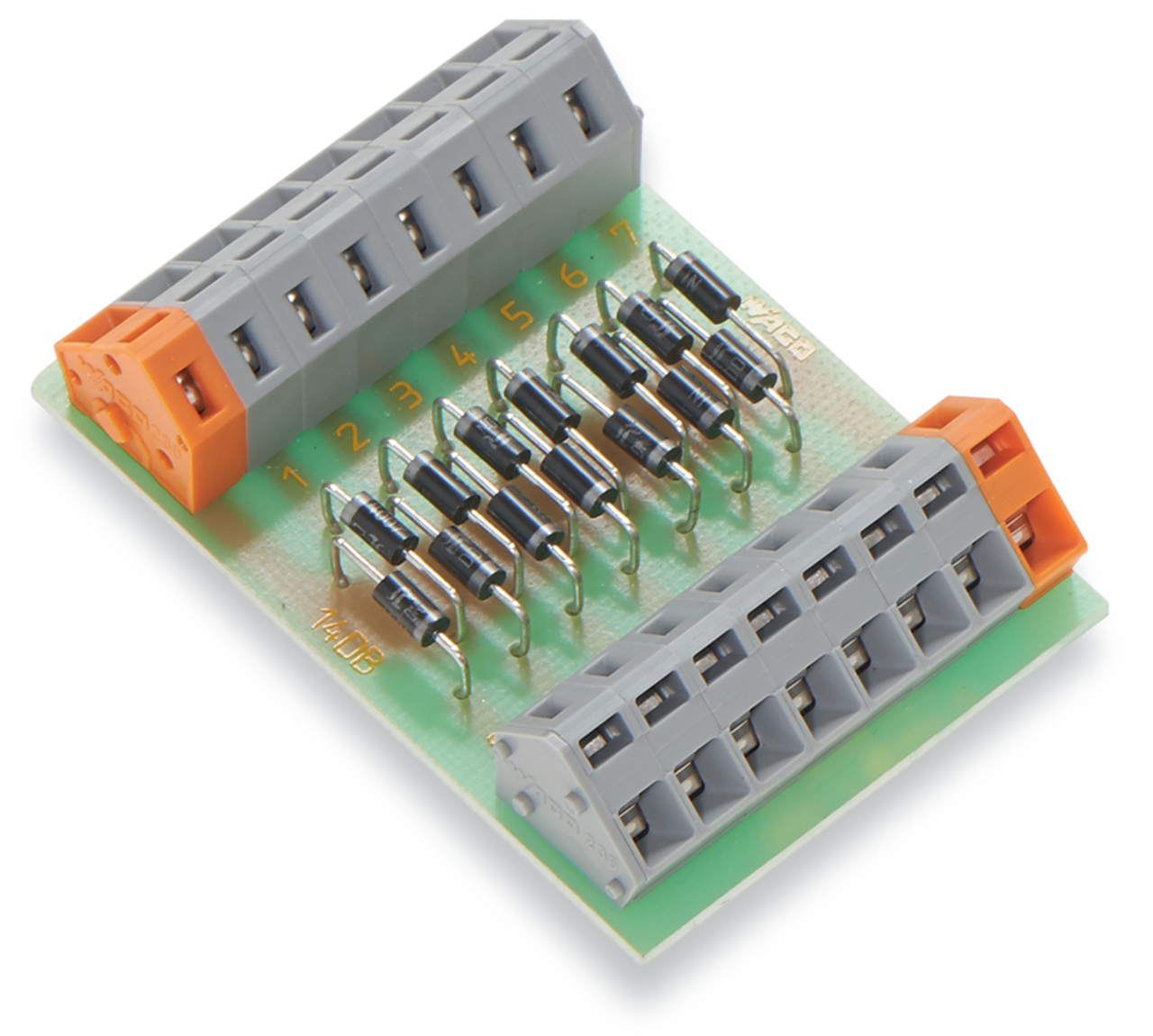

CM-D Moduł z diodą 14x 1N4007 289-121
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 289-121 |
GTIN(EAN) | 4045454193027 |
Price unit | piece |
Catalog price | 193,23 zł (157,10 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 25,3 g |
ETIM class: | Component terminal block |
Operating temperature: | -25 - 40 °C |
Explosion-tested version 'Ex e': | no |
Rated current In: | 1 A |
Height: | 65.5 mm |
Number of levels: | 1 |
Closing plate required: | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 7 |
Internally connected stages: | no |
Colour: | Other |
Width: | 45.5 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 250 V |
Depth: | 32 mm |
Type of component: | Diode |
Buy online
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 17:42:28 |
Files to download: | |
External links: |
