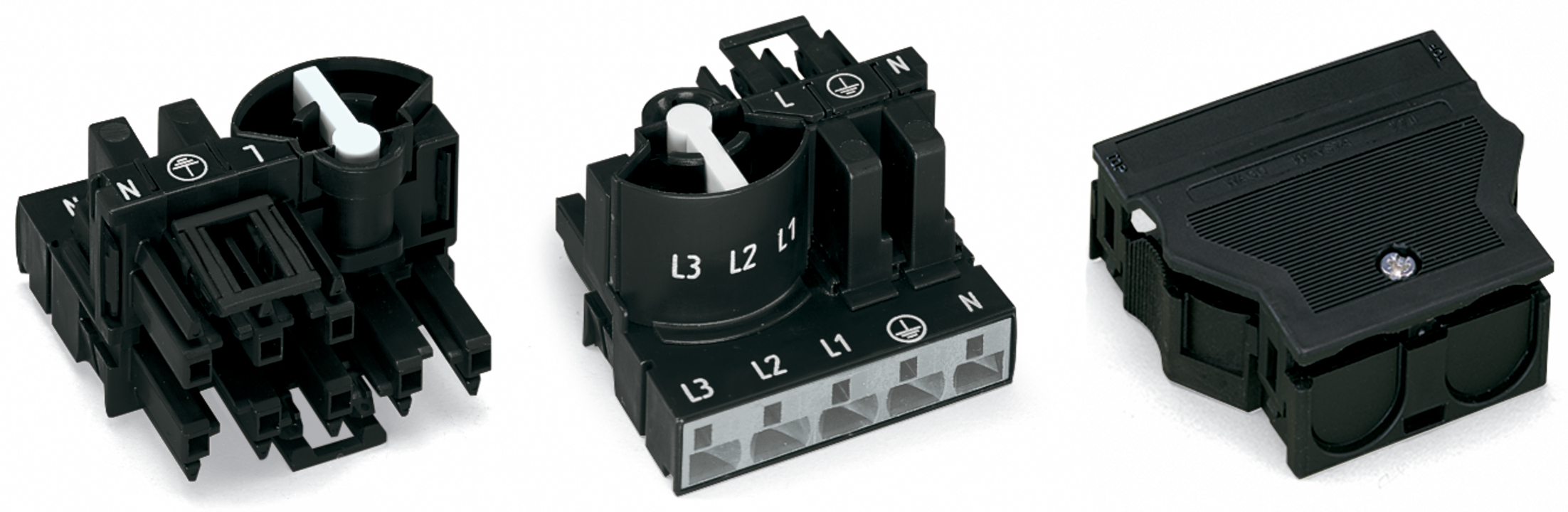

Rozdział energii trójfazowy na jednofazo z możliwością wyboru fazy 5-bieg./3-bieg., czarny 770-611
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 770-611 |
GTIN(EAN) | 4045454558406 |
Price unit | piece |
Catalog price | 97,19 zł (79,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
rozgałęźnik trójfazowy na jednofazowy; z możliwością wyboru fazy; 5-bieg./3-bieg.; kodowanie A; 1 wejście; 2 wyjścia; z podłączeniem przewodu na wejściu; czarny
Additional features:
Information | Value |
---|---|
Net weight: | 47,26 g |
ETIM class: | Compact distributor for plug-in building installation |
Fire load: | 0.27833 kWh |
Halogen free: | yes |
Rated surge voltage: | 6 kV |
Number of poles: | 5 |
Type of integrated switching: | None |
Type of locking: | Integrated in plug-in connector |
Phase pickup: | Selectable |
Rated current: | 25 A |
Rated voltage: | 400 V |

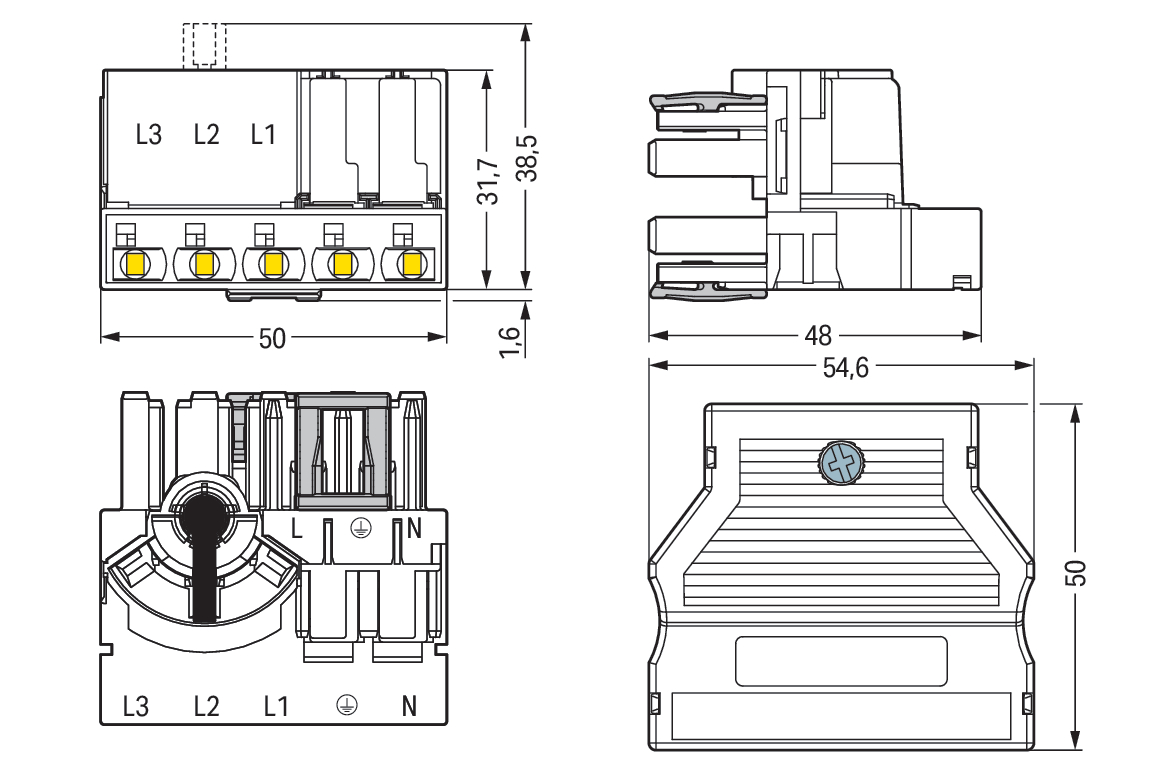

Width: | 54.6 mm |
Length: | 48 mm |
Type of distributor: | Power current -/alternating current distributor |
Mounting possibility: | No |
Number of inputs: | 5 |
Height: | 31.7 mm |
Max. continuous temperature resistance strain relief: | 105 °C |
Contact material: | CuSn |
Rated current to luminaire: | 25 A |
Housing material: | Polyamide (PA) |
Mechanical coding: | yes |
Max. continuous temperature resistance contact part: | 85 °C |
Surface treatment contacts: | Tinned |
Continuity resistance: | 1 mΩ |
Number of outputs: | 8 |
Degree of protection (IP): | IP20 |
Colour coding/contact insert: | Black |
Pollution degree: | 3 |
Colour of the separate adapter piece: | Without adapter piece |
