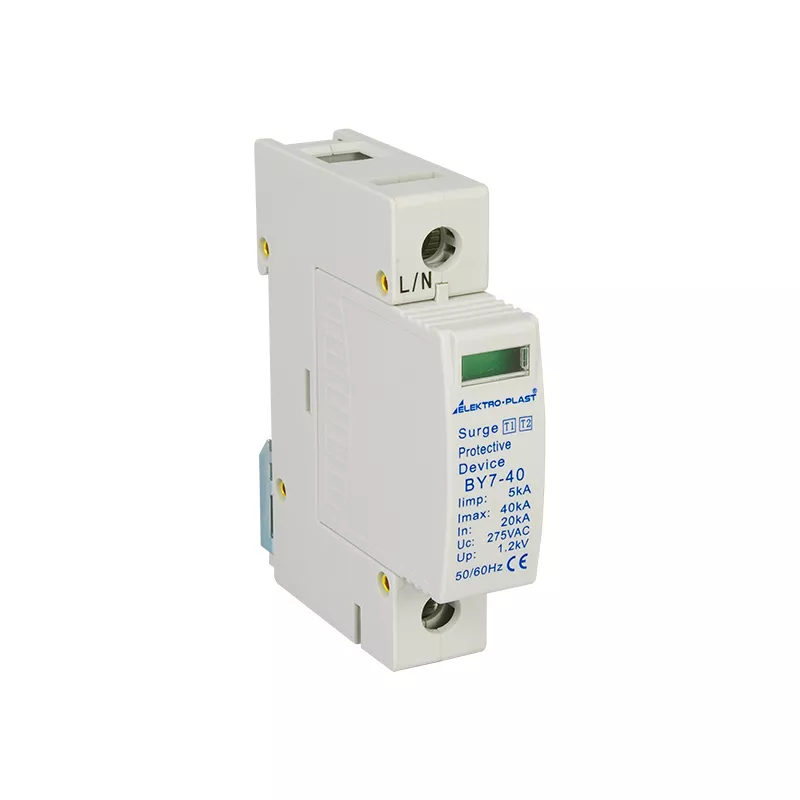

Ogranicznik przepięć B+C 1P (T1+T2 AC) BY7-40/1-275 biały
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 87.780 |
GTIN(EAN) | 5905548286983 |
Price unit | piece |
Catalog price | 45,87 zł (37,29 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 104 g |
Gross weight: | 116 g |
ETIM class: | Combined arrester for power supply systems |
System configuration TN: | yes |
Number of poles: | 1 |
Lightning impulse current (10/350 µs): | 5 kA |
Max. continuous voltage AC: | 275 V |
Nominal voltage AC: | 230 V |
Voltage protection level: | 1.2 kV |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 1 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
Signalling at the device: | Optical |
Test class: | Type 1 + 2 |
Degree of protection (IP): | IP20 |
