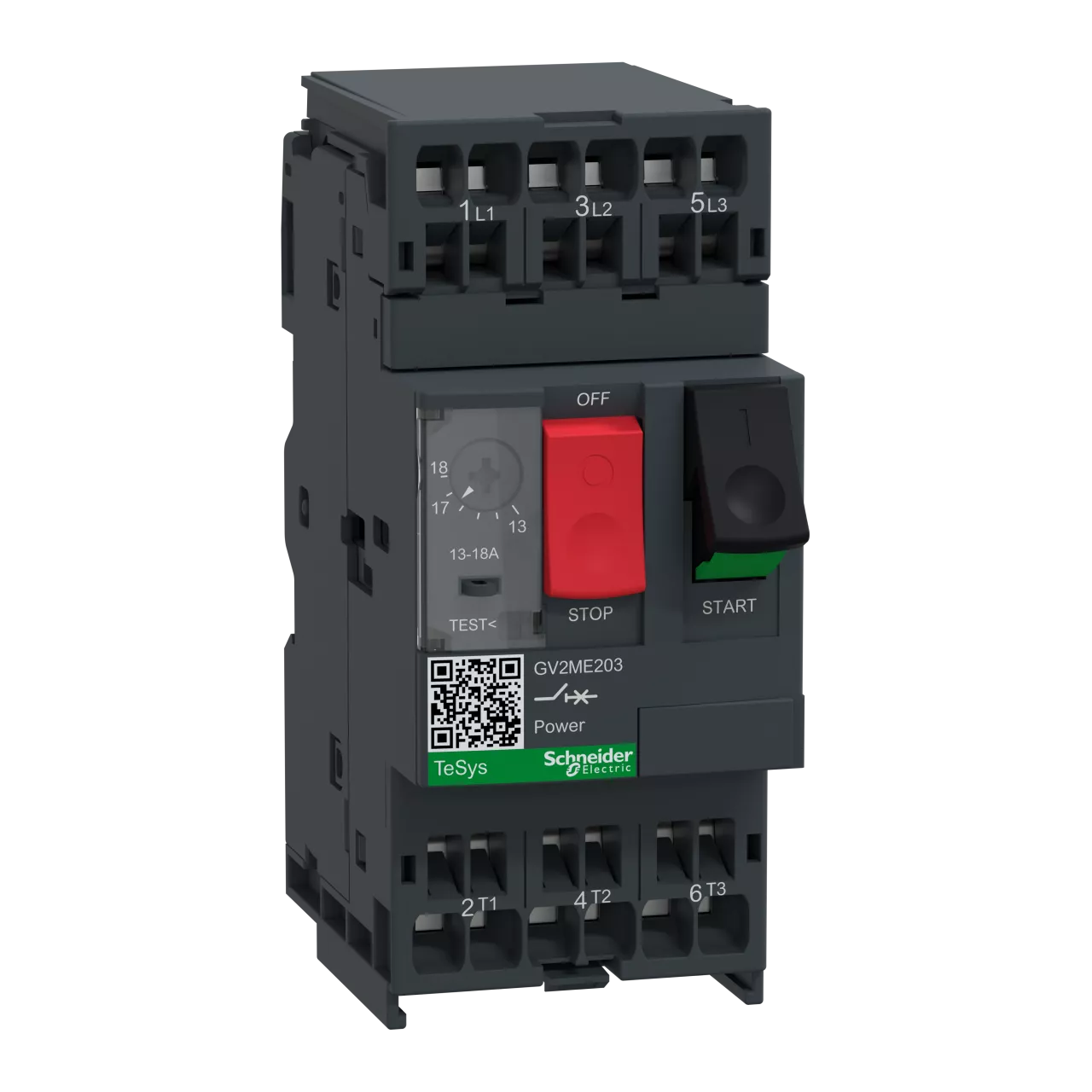

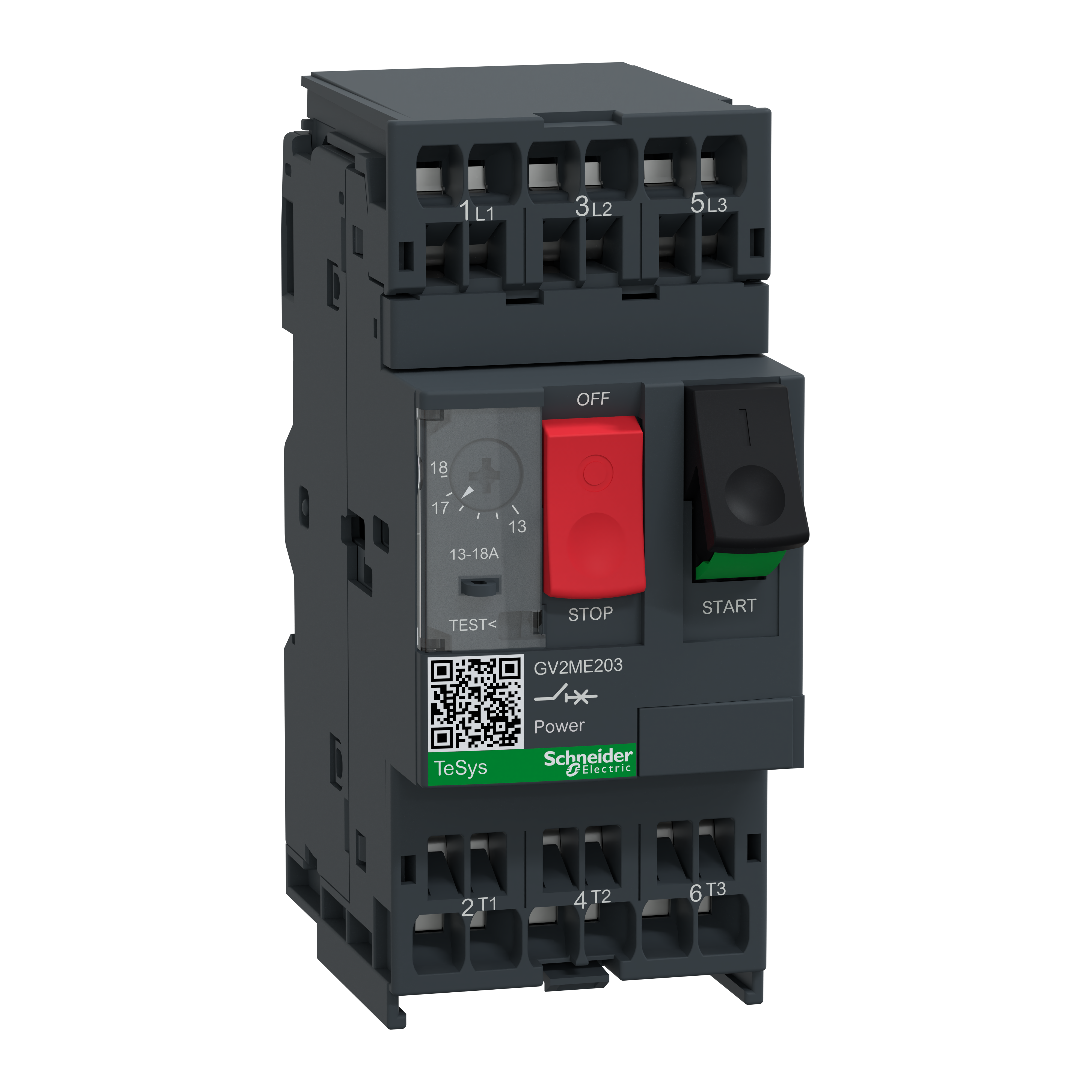

Wyłącznik silnikowy GV2ME napęd przyciskowy 13-18A zaciski sprężynowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GV2ME203 |
GTIN(EAN) | 3389110346473 |
Price unit | piece |
Catalog price | 859,40 zł (698,70 zł + 23% VAT) |
Promotions related to this product
-
Elektroklub - Nagrody dla każdego! od Schneider Electric
Nagrody dla każdego! Nawet 2x więcej punktów kupując Schneider Electric
Promotion active until 04/30/2024
-
Elektroklub - Start Promocji - Łowcy przygód 2024 – wiatr i woda – edycja wiosenna
Jesteś elektrykiem, lubisz aktywnie wypoczywać, poznawać nowych ludzi i ciekawe miejsca? To
mamy ogłoszenie specjalnie dla Ciebie.Promotion active until 04/30/2024
Additional features:
Information | Value |
---|---|
Gross weight: | 322 g |
ETIM class: | Motor protection circuit-breaker |
Type of electrical connection of main circuit: | Spring clamp connection |
Adjustment range undelayed short-circuit release: | 223 - 223 A |
Device construction: | Complete device in housing |
With integrated under voltage release: | no |
Number of poles: | 3 |
Degree of protection (IP): | IP20 |
Height: | 101 mm |
Rated operating voltage: | 690 - 690 V |
Depth: | 78.2 mm |
Width: | 44.5 mm |
Switch off technique: | Thermomagnetic |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 15 kA |
Rated operation power at AC-3, 400 V: | 7.5 kW |
Phase failure sensitive: | yes |
With integrated auxiliary switch: | no |
Type of control element: | Push button |
Rated permanent current Iu: | 18 A |
Overload release current setting: | 13 - 18 A |
With thermal overload protection: | yes |
Rated operation power at AC-3, 230 V: | 4 kW |
Buy online
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-02 15:11:13 |
