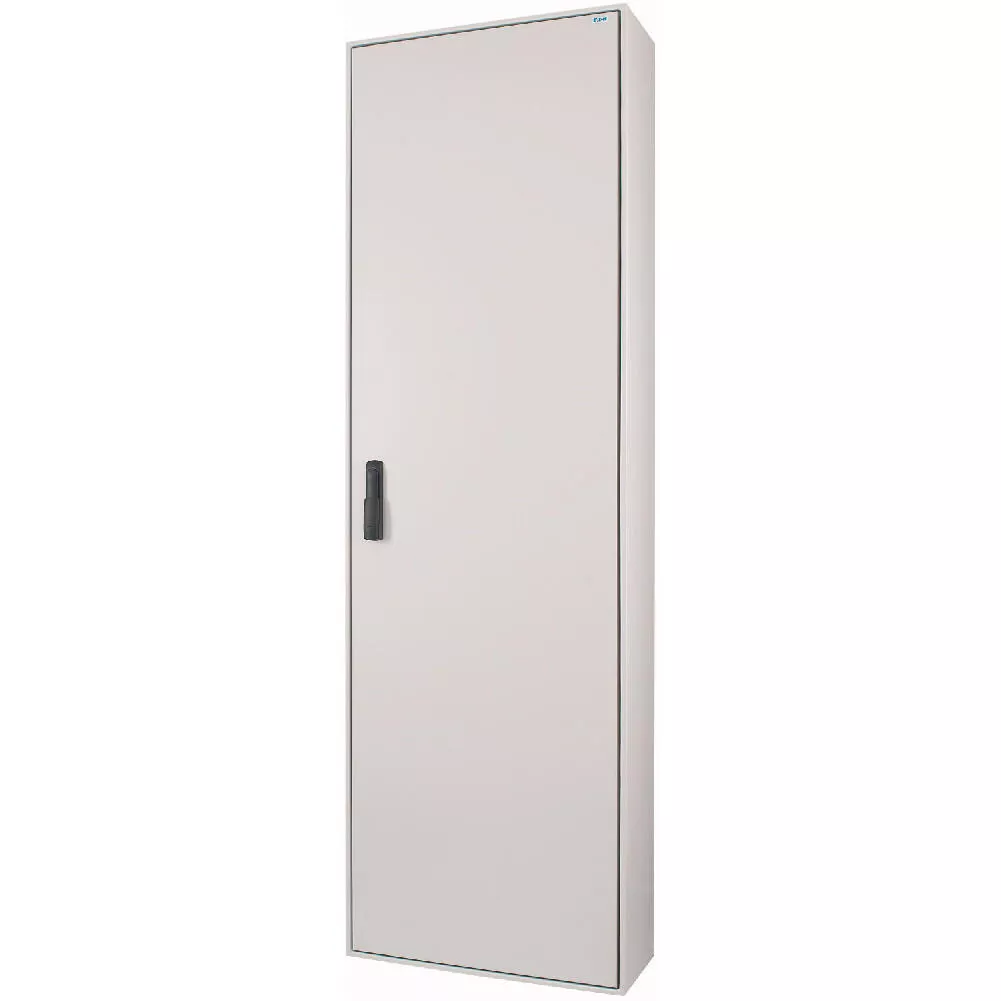

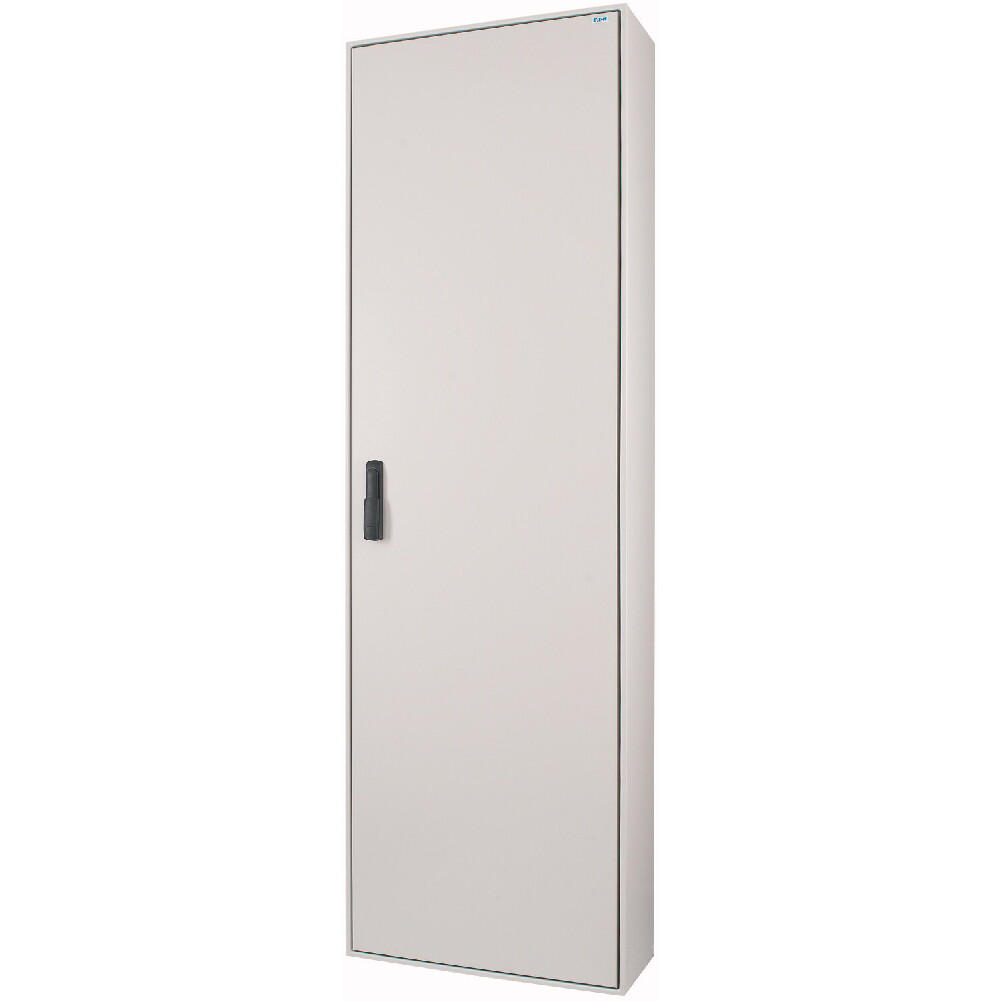

BPM-F-600/17-P Szafa stojąca IP 54, zamykane dźwignią,
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 111049 |
| GTIN(EAN) | 4015081106103 |
| Price unit | piece |
| Catalog price | 6 865,86 zł (5 582,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Standverteiler für Feuchträume mit Schwenkhebel, IP55, BPM-F-...-P, Breite 600 mm, Außenhöhe = 1760 mm, Frontplatte Höhe 1650 mm, Tiefe 320 mm, geschweißtes Gehäuse mit Tür und Schwenkhebelverschluss, geerdete Metallabdeckungen, ausgezeichnete Standfestigkeit durch die verschweißte Konstruktion, gut strukturierte, mehrschichtige Konstruktion für leicht zugängliche Installation: Grundrahmen - DIN-Schienen ... - Gehäuse, Tür mit Wechselanschlag, großzügiger Verdrahtungsraum, offene Kabeleinführungen oben und unten, vorbereitet für F3A-Flansch, variabler Innenausbau mit / ohne herausnehmbarem Montagerahmen
Additional features:
| Information | Value |
|---|---|
| Net weight: | 46,1 kg |
| Country of origin | Czechy |
| ETIM class: | Enclosure/cabinet (empty) |
| Width: | 630 mm |
| Height: | 1 790 mm |
| Depth: | 350 mm |
| Material: | Steel |
| Material quality: | Other |
| Surface finishing: | Powder coating |
| Colour: | Grey |
| RAL-number: | 7 035 |
| Freestanding: | yes |
| Floor standing wall model: | no |
| Suitable for wall mounting: | no |
| Corner model: | no |
| Intermediate mounting: | no |
| Couplable: | no |
| With mounting plate: | no |
| Mounting plate depth-adjustable: | no |
| Suitable for wall built-in: | no |
| Pole fastening: | no |
| Number of doors: | 1 |
| Number of locks: | 0 |
| Suitable for metrical mounting: | yes |
| Suitable for outdoor set-up: | no |
| Pitched roof: | no |
| EMC-version: | yes |
| With glazed door: | no |
| With ventilation door: | no |
| With rear door: | no |
| Impact strength: | IK10 |
| Degree of protection (IP): | IP55 |
| Degree of protection (NEMA): | Other |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890: | 0 W |
| Max. permissible load of the enclosure according to IEC 62208: | 0 N |
| Max. permissible load of the door(s) according to IEC 62208: | 0 N |
| Max. permissible load of the mounting plate according to IEC 62208: | 0 N |
| With door: | yes |
| With cover: | no |
| Transparent cover: | no |
| Number of connector holes: | 0 |
| Pre-stamping: | no |
