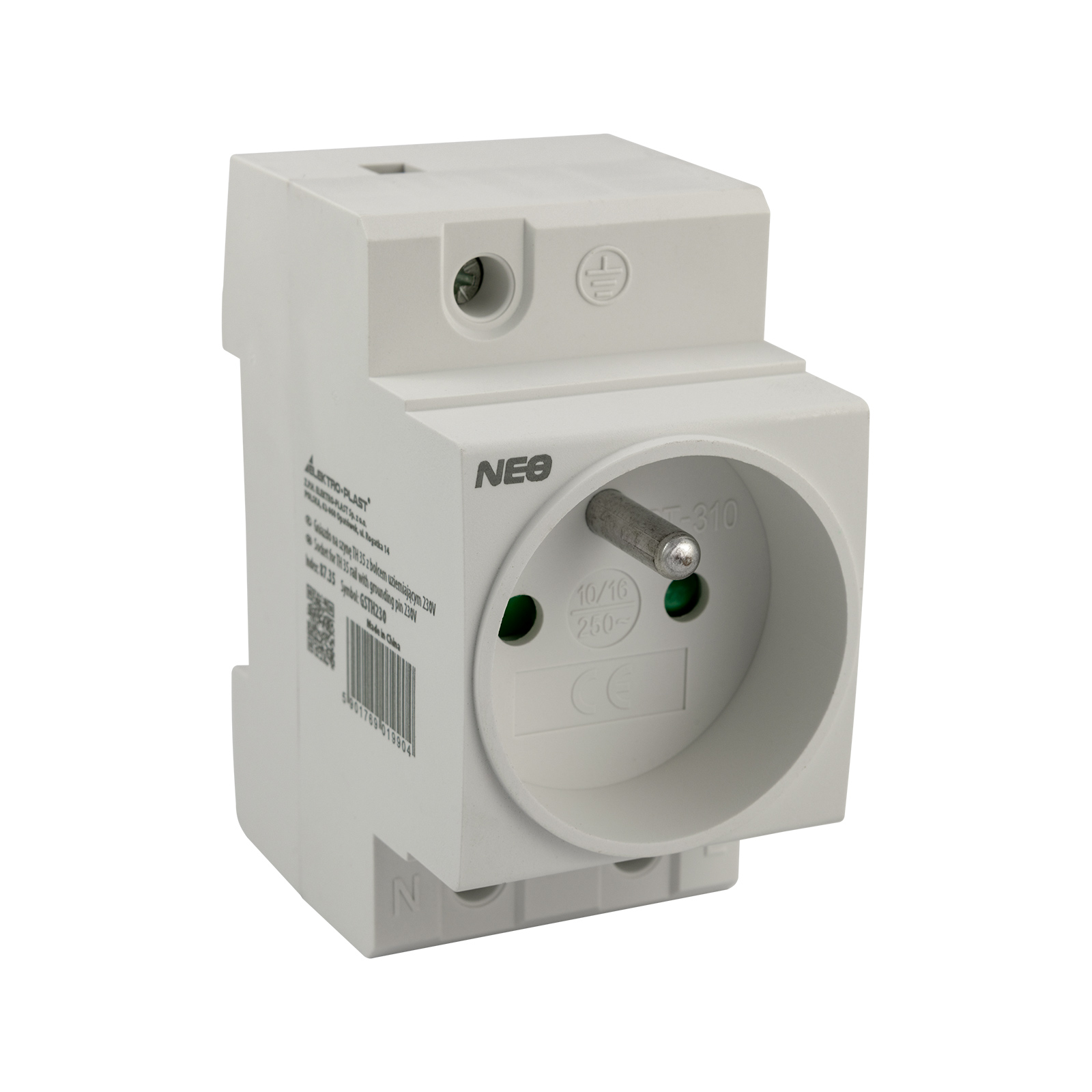

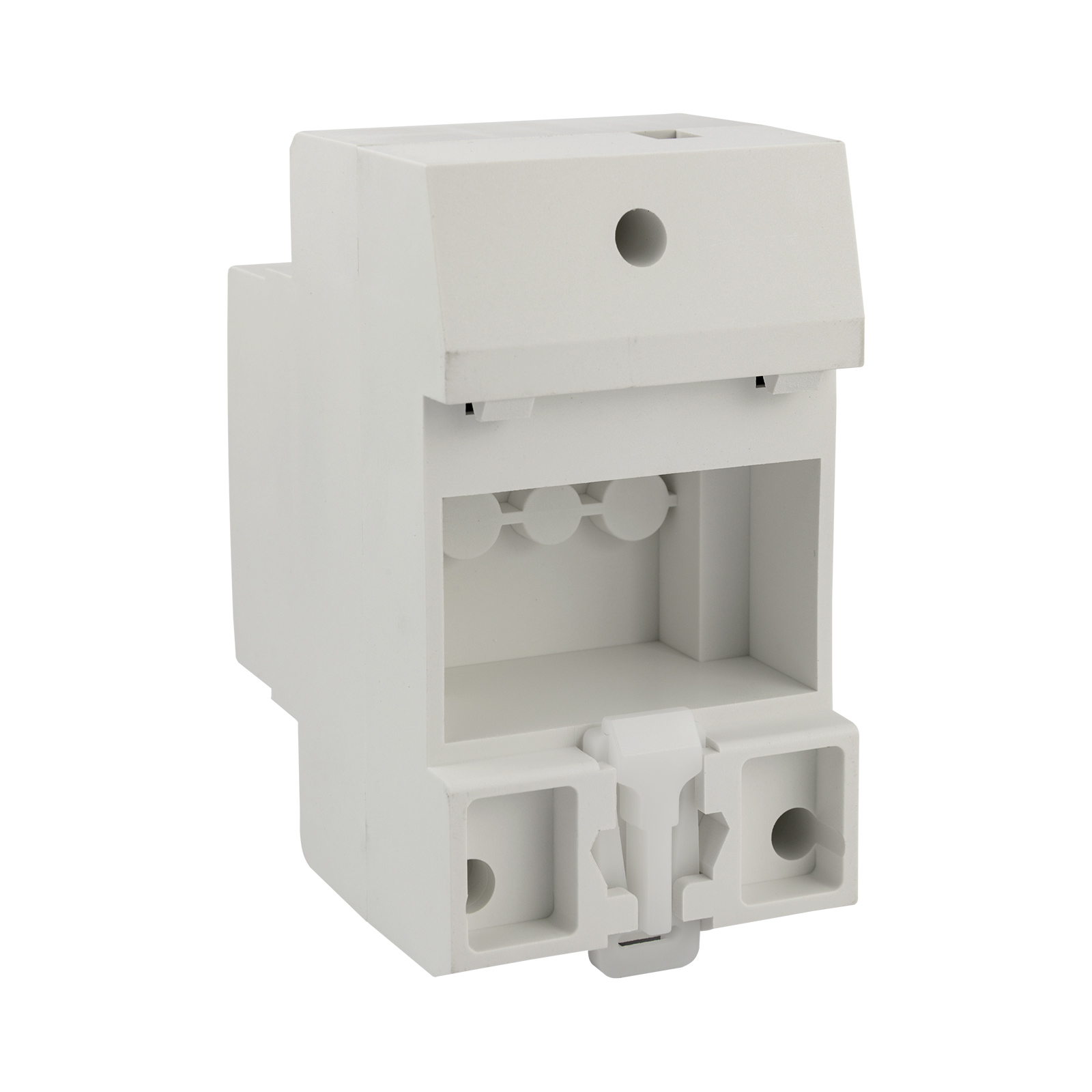

GSTH230 Gniazdo 230V na szynę TH z bolcem uziemiającym 2P+Z szare

The GSTH230 230V socket for TH rail with a 2P+Z grounding pin is a functional electrical device that allows for convenient connection of devices to the power supply in modular systems. Product characteristics: Intended use: For powering single-phase devices equipped with a plug, compliant with operating parameters. Mounting: On a TH35/DIN rail, in accordance with modular standards. Safety: Equipped with a grounding pin for increased safety. Technical Specifications: Catalog Model: GSTH230 Catalog Number: 87.35 Rated Current: 16 A Nominal Operating Voltage: 230 V Frequency: 50/60 Hz Rated Insulation Voltage (Ui): 500 V Module Width: 45 mm (approx. 2.5 modules) Connecting Cable Diameter: ≤6 mm² Protection Class: IP20 (protection against solid objects >12.5 mm, no protection against moisture). Operating Temperature: -5°C to +40°C Standard Mounting: 35 mm TH/DIN Rail Applications: The GSTH230 socket is suitable for use in modular distribution boards in residential, office, and industrial buildings. Power supply installations for service devices in distribution boards. Solutions requiring easy access to the socket in electrical installations. Notes: Environmental restrictions: This product is intended for use in enclosed, dry rooms with temperatures ranging from -5°C to +40°C. Safety of use: It is recommended to use it in accordance with the manufacturer’s instructions and regulations regarding shock protection.
