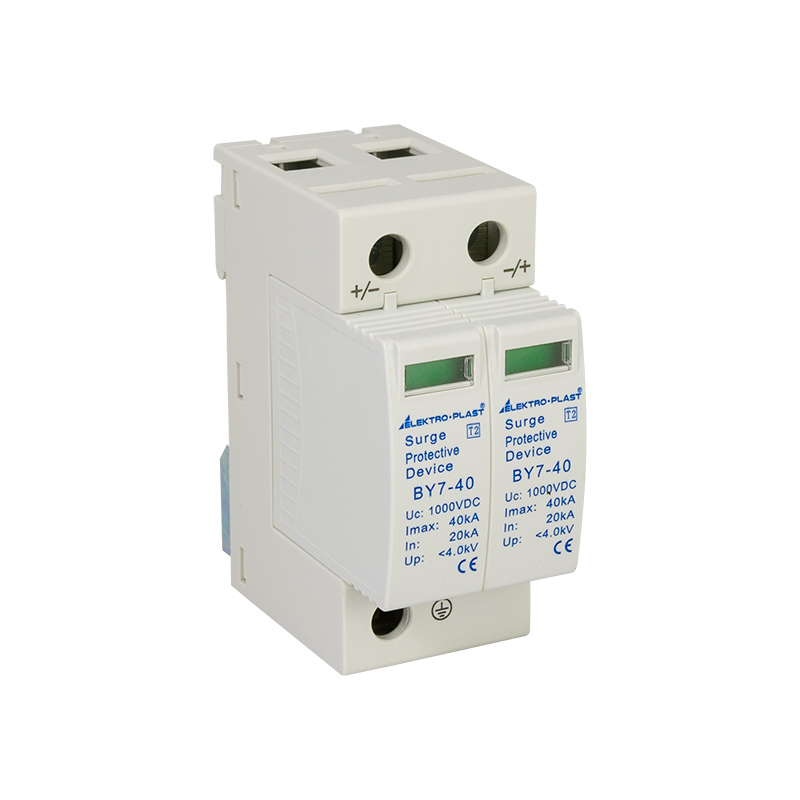

Ogranicznik przepięć PV 2P (T2 DC) 1000VDC BY7-40/2-1000 biały
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 87.745 |
GTIN(EAN) | 5905548287997 |
Price unit | piece |
Catalog price | 111,07 zł (90,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 226 g |
Gross weight: | 242 g |
ETIM class: | Surge protection device for power supply systems |
System configuration DC: | yes |
Number of conductors (without earthing): | 2 |
Nominal voltage DC: | 1000 V |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 2 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
With remote signalling contact: | no |
Signalling at the device: | Optical |
Category type 2: | yes |
Degree of protection (IP): | IP20 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-03-25 00:03:10 |
Files to download: |
