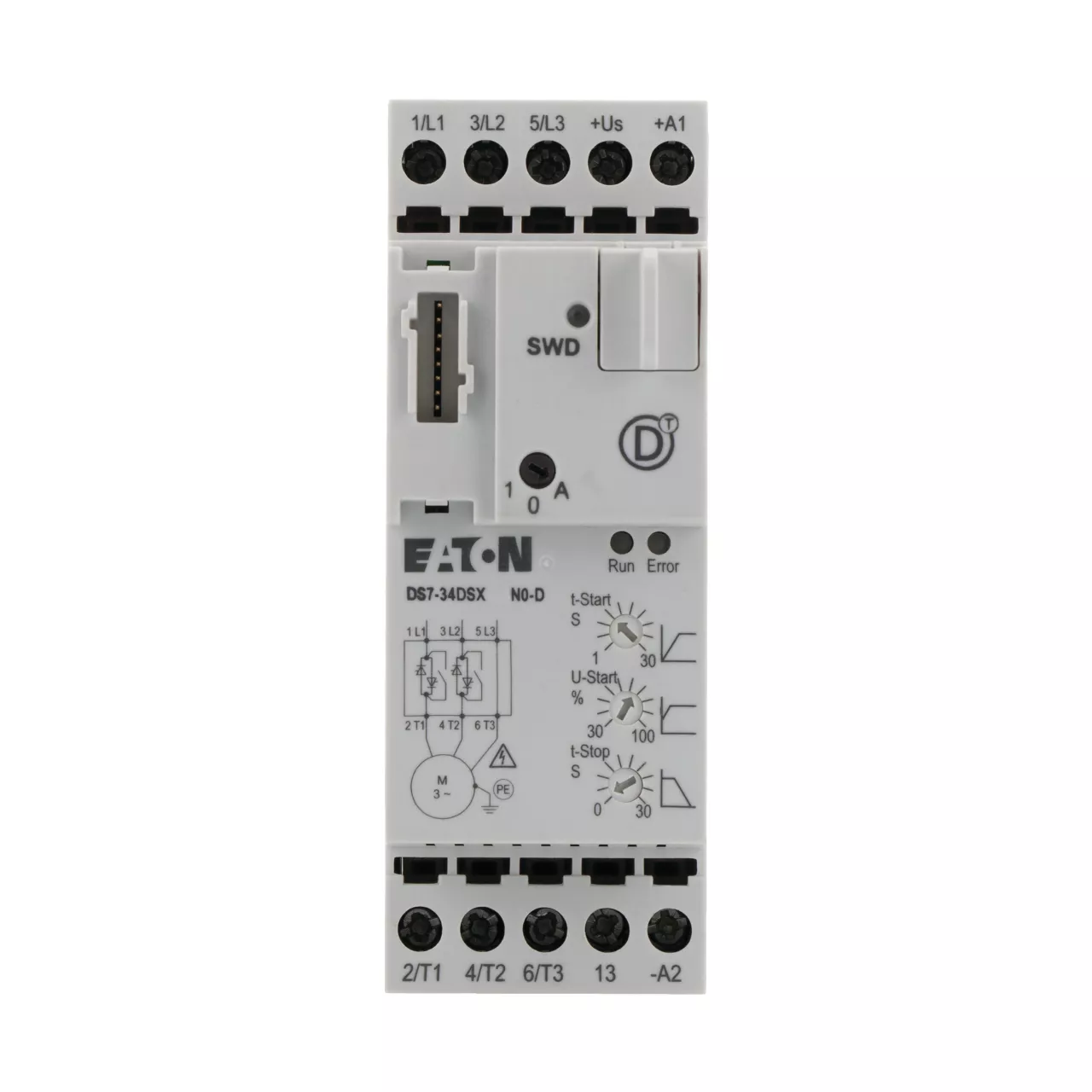

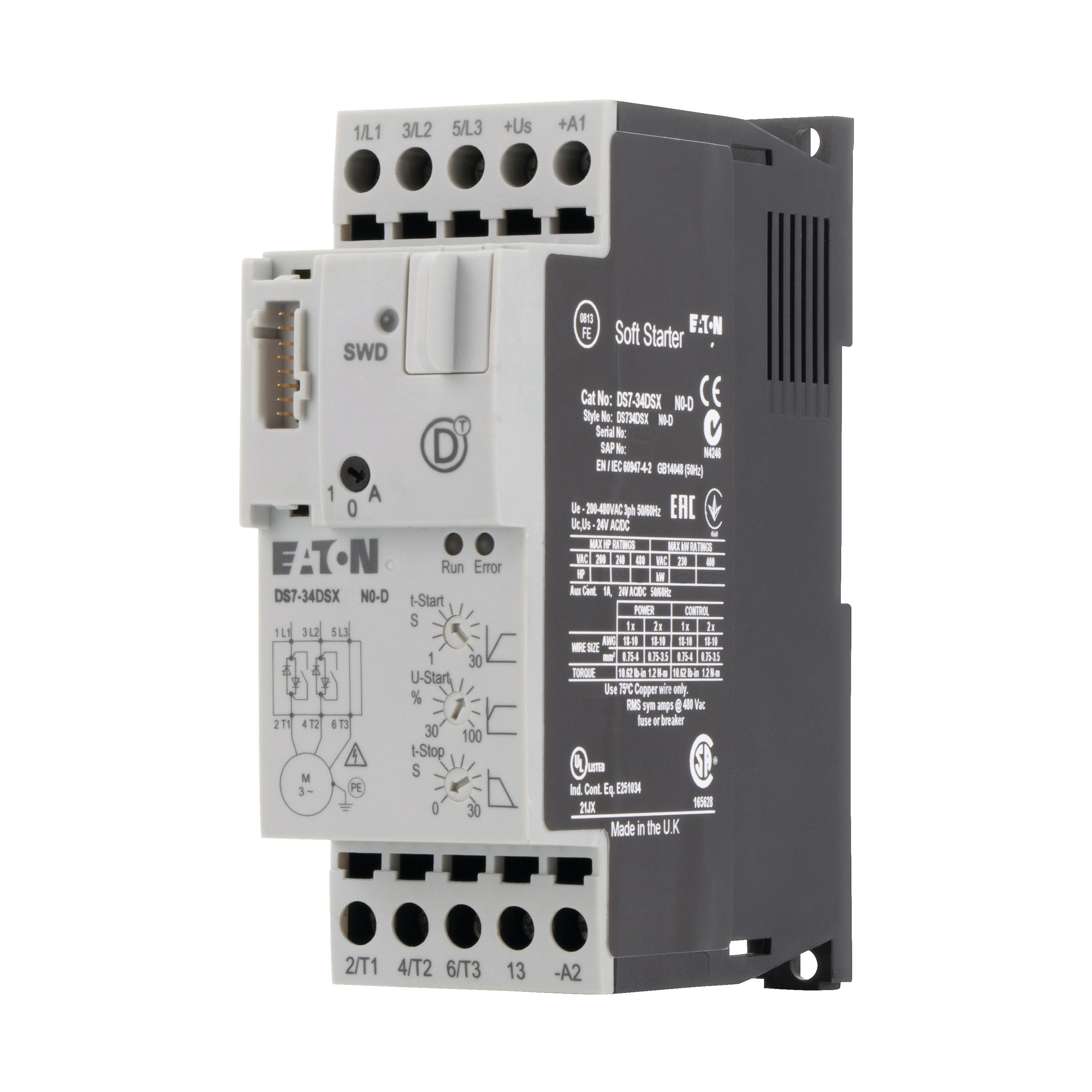

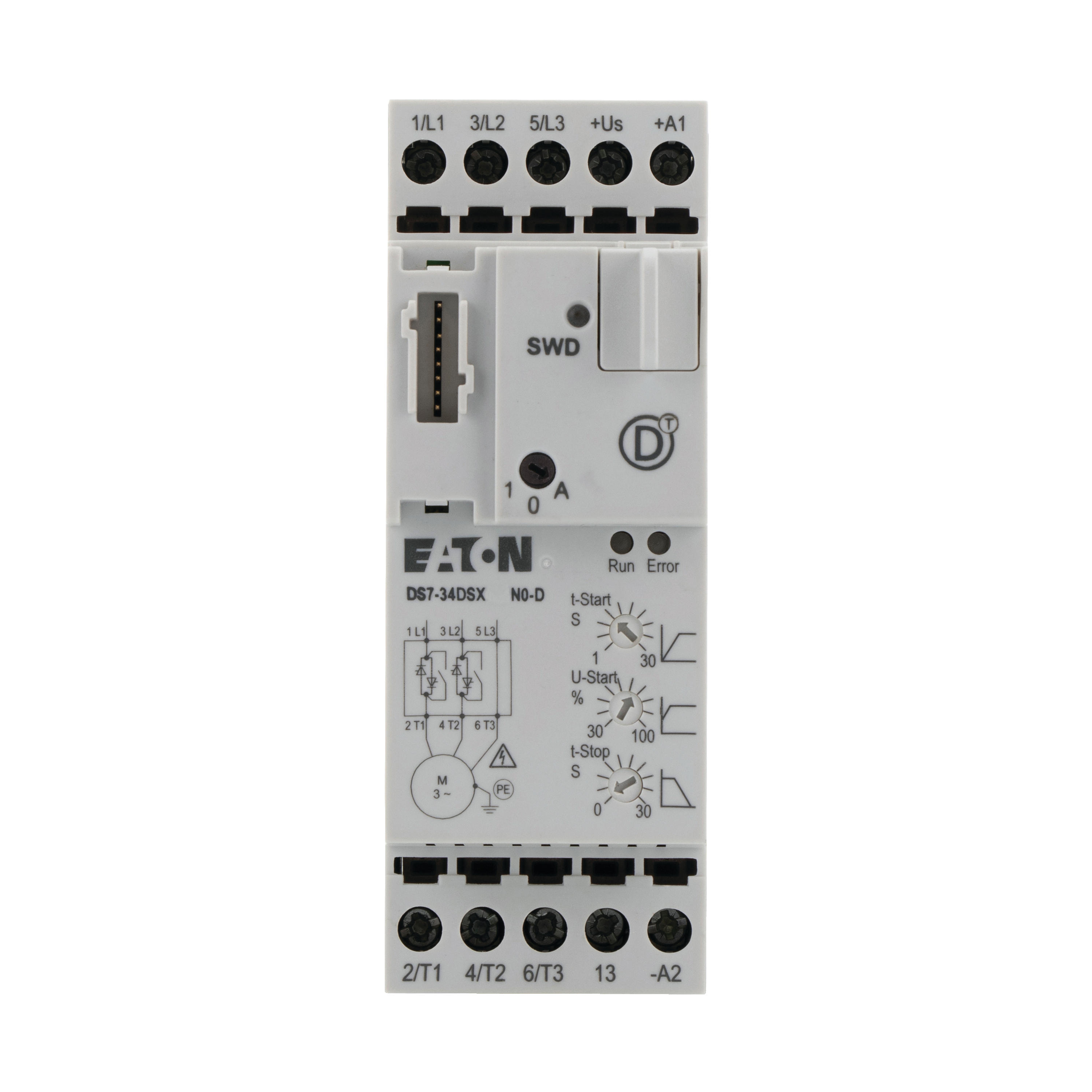

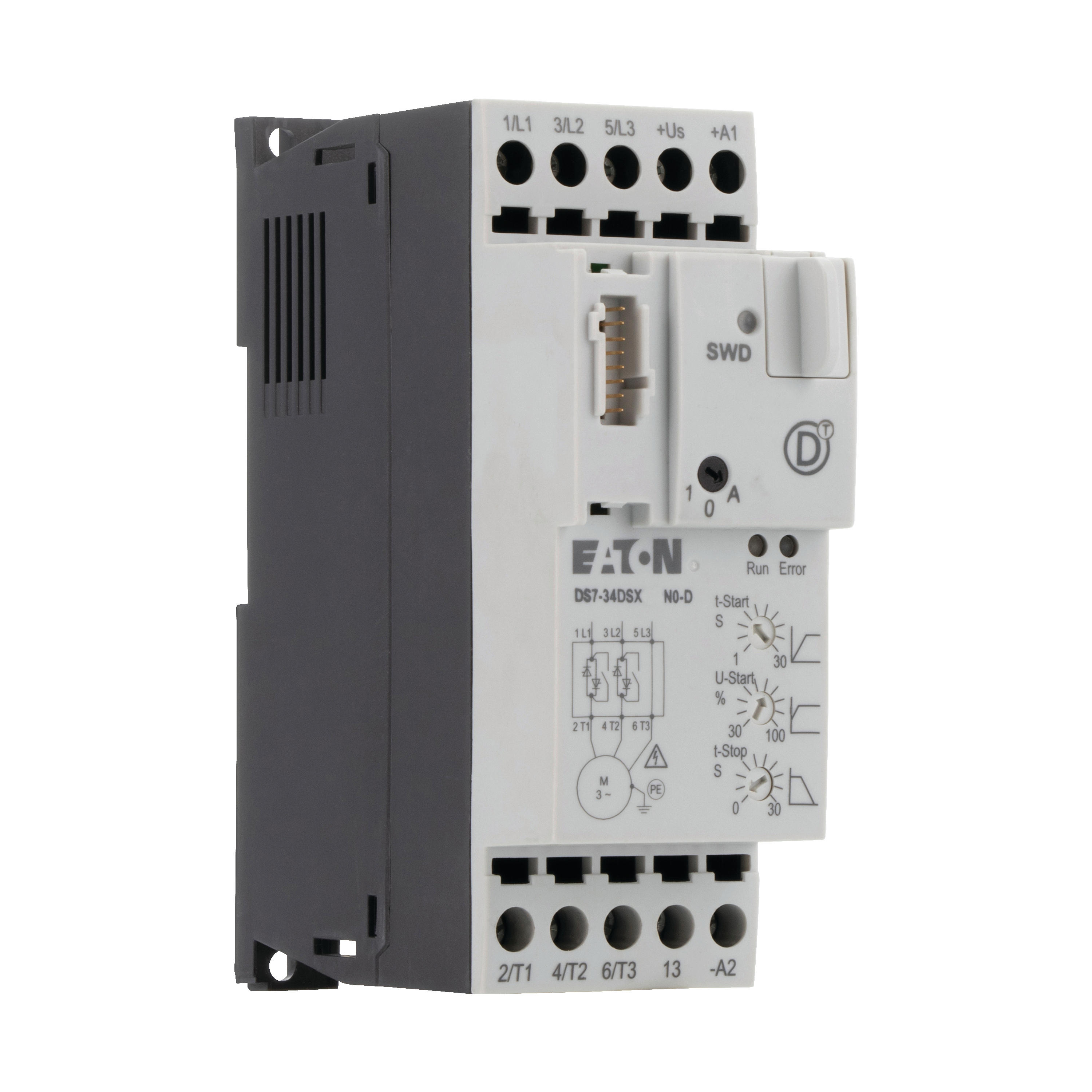

DS7-34DSX012N0-D Softstartery DS7 z SWDT, 12A (5,5kW/400V)
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 134947 |
| GTIN(EAN) | 4015081317622 |
| Price unit | piece |
| Catalog price | 1 708,47 zł (1 389,00 zł + 23% VAT) |
| Sale price | from 582,53 zł / szt. (473,60 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Softstarter, Zacisk śrubowy: Urządzenie podrzędne SmartWire-DT, Opis: Ze stykami wewnętrznego obejścia, Funkcja: Softstartery do trójfazowych obciążeń, Napięcie sieciowe (50/60 Hz): ULN = 200 – 480 V AC, Napięcie zasilające: Us= 24 V DC, Napięcie sterowania: UC = 24 V DC, Przypisana moc znamionowa silnika (Standardowe połączenie, w linii) przy 400 V, 50 Hz: P = 5,5 kW, przy 460 V, 60 Hz: P = 10 KM, Znamionowy prąd roboczy AC-53: Ie = 12 A, Znamionowe napięcie robocze: Ue= 200 V, 230 V, 400 V, 480 V, Podłączanie do SmartWire-DT: tak, Wielkość: FS1, Normy: IEC/EN 60947-4-2, UL 508, CSA22.2-14
Additional features:
| Information | Value |
|---|---|
| Net weight: | 350 g |
| Country of origin | Wielka Brytania |
| ETIM class: | Soft starter |
| Rated operation current Ie at 40 °C Tu: | 12 A |
| Rated power three-phase motor, inline, at 230 V: | 3 kW |
| Rated power three-phase motor, inline, at 400 V: | 5,5 kW |
| Rated power three-phase motor, inside delta, at 230 V: | 0 kW |
| Rated power three-phase motor, inside delta, at 400 V: | 0 kW |
| Function: | Single direction |
| Internal bypass: | yes |
| With display: | no |
| Torque control: | no |
| Rated surrounding temperature without derating: | 40 °C |
| Voltage type for actuating: | DC |
| Integrated motor overload protection: | no |
| Release class: | Other |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | 1 |
