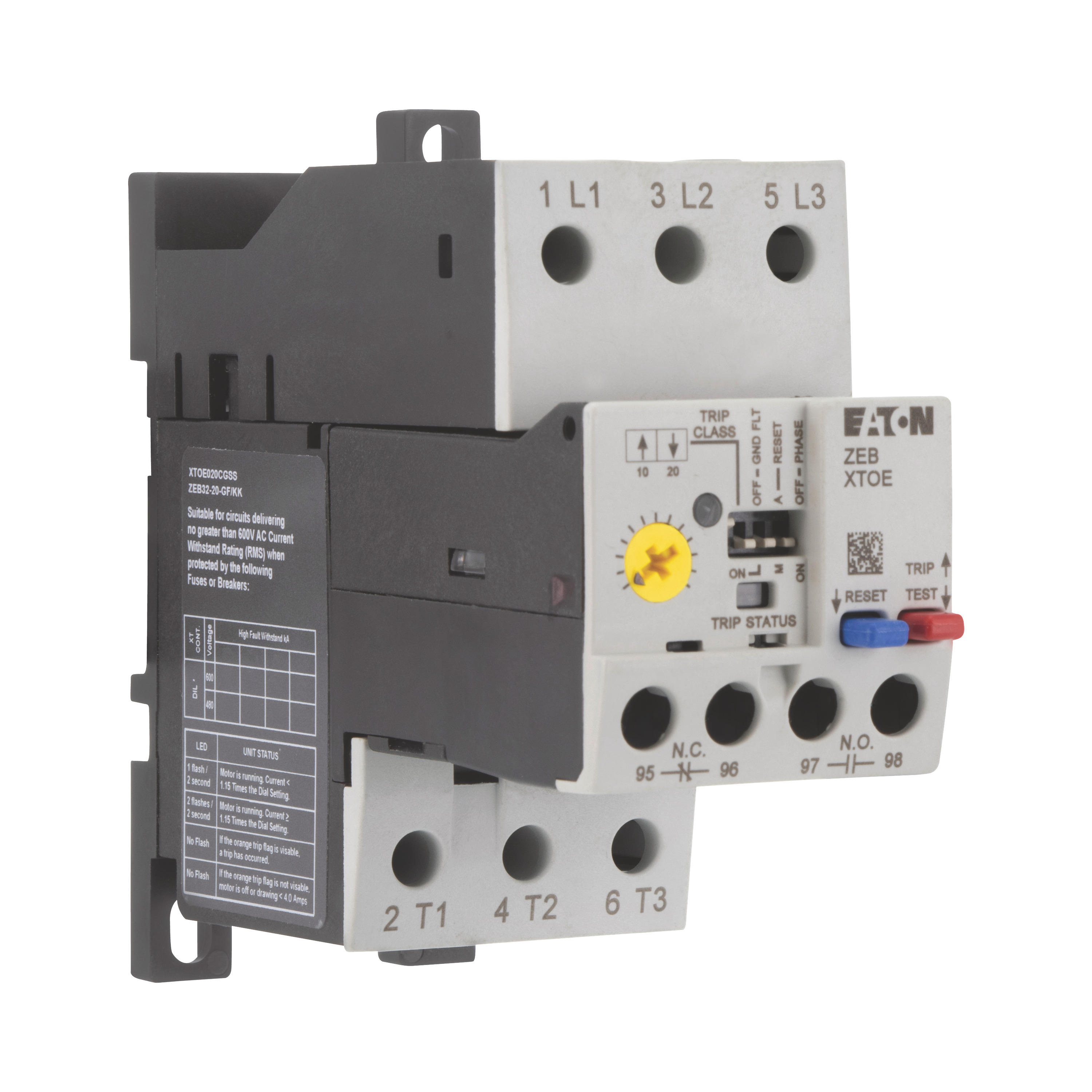

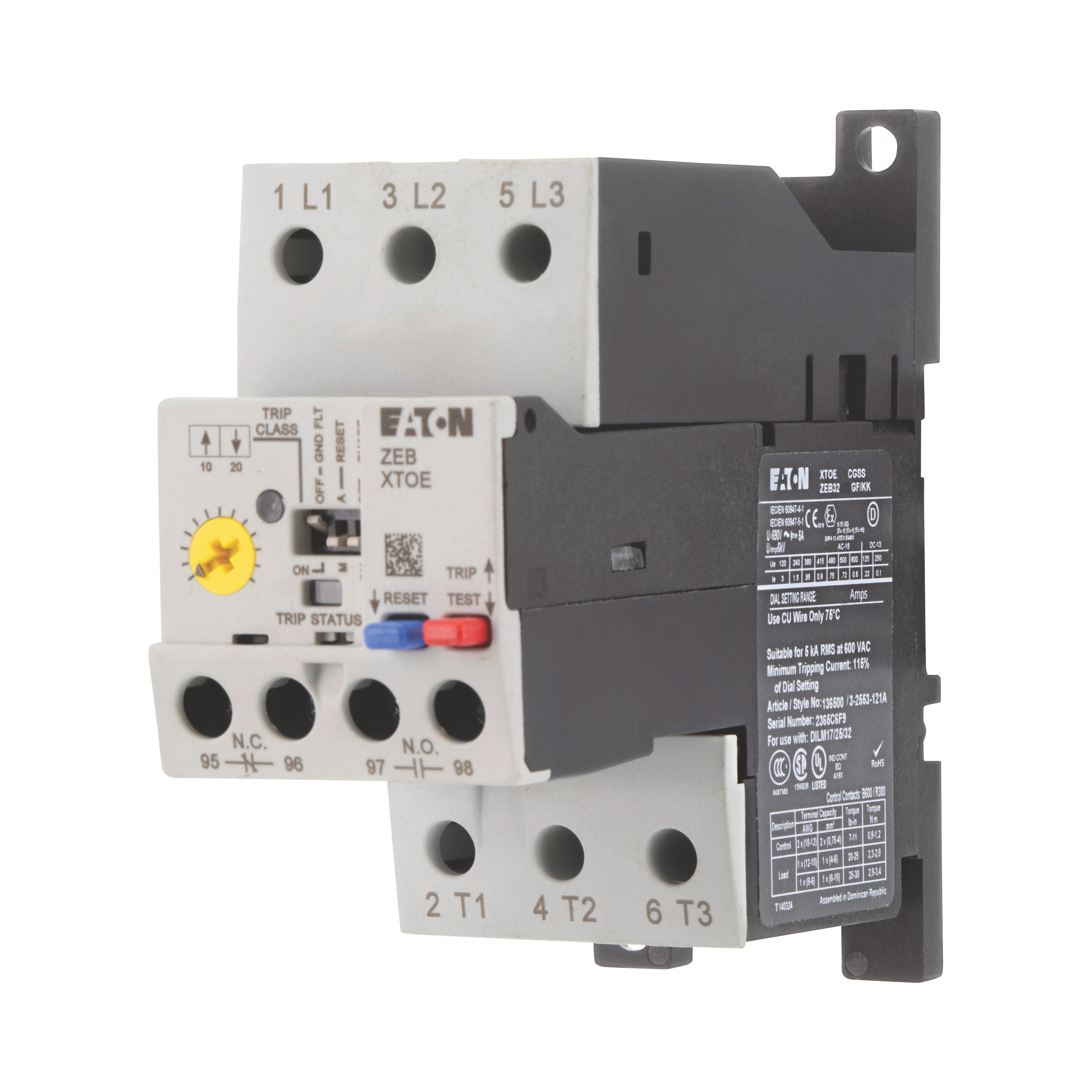

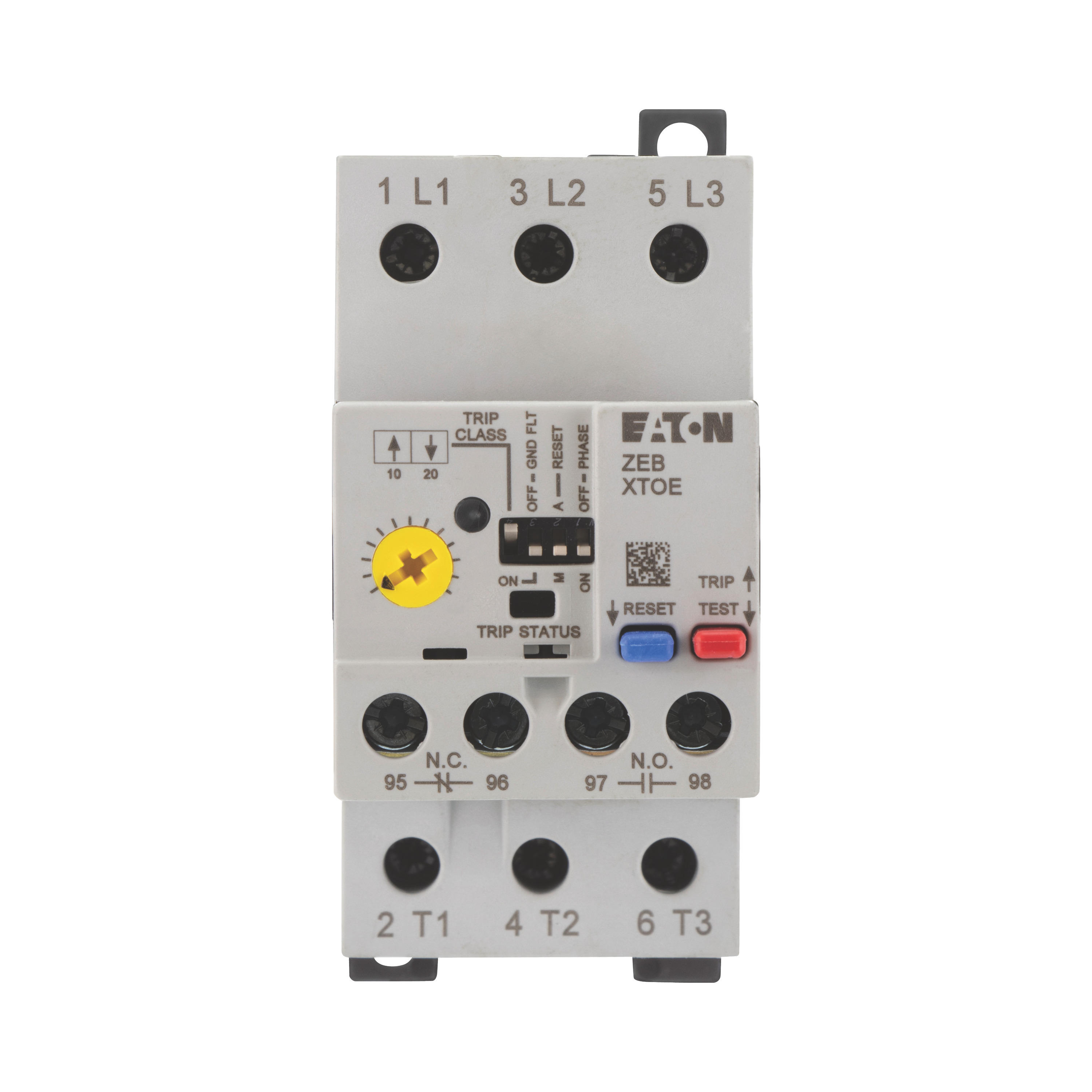

ZEB32-20-GF/KK Elektr. przekaźnik przeciąż. 4-20A mont. oddz./doziem.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 136500 |
| GTIN(EAN) | 4015081332809 |
| Price unit | piece |
| Catalog price | 2 116,83 zł (1 721,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik przeciążeniowy, Zacisk śrubowy: Elektroniczne przekaźniki przeciążeniowe ZEB, Czułość na zanik fazy: IEC/EN 60947, VDE 0660 część 102, Opis: Przycisk test/wył., Przycisk resetowania, Możliwość wyboru ręcznego/automatycznego resetu, Zabezpieczenie na wypadek uruchomienia pod obciążeniem (klasy od 10 do 20), Typ mocowania: Montaż osobny, Styki pomocnicze N/O (Z = Zwierne): 1 N/O (Z), Styki pomocnicze N/C (R = Rozwierne): 1 N/C (R), Do zastosowania z: DILM17, DILM25, DILM32, DILM38, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, SDAINLM55, Normy: IEC/EN 60947, VDE 0660, UL, CSA, Stopień ochrony: IP20
Additional features:
| Information | Value |
|---|---|
| Net weight: | 358 g |
| Country of origin | Dominikana |
| ETIM class: | Electronic overload relay |
| Adjustable current range: | 4 - 20 A |
| Mounting method: | Separate positioning |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Release class: | Adjustable |
| Reset function automatic: | yes |
| Reset function input: | no |
| Reset function push-button: | yes |
| External power supply required: | no |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 230 - 690 V |
| Operating voltage AC 60 Hz: | 230 - 690 V |
| Operating voltage DC: | 0 - 0 V |
| Width: | 45 mm |
| Height: | 110 mm |
| Depth: | 108 mm |
