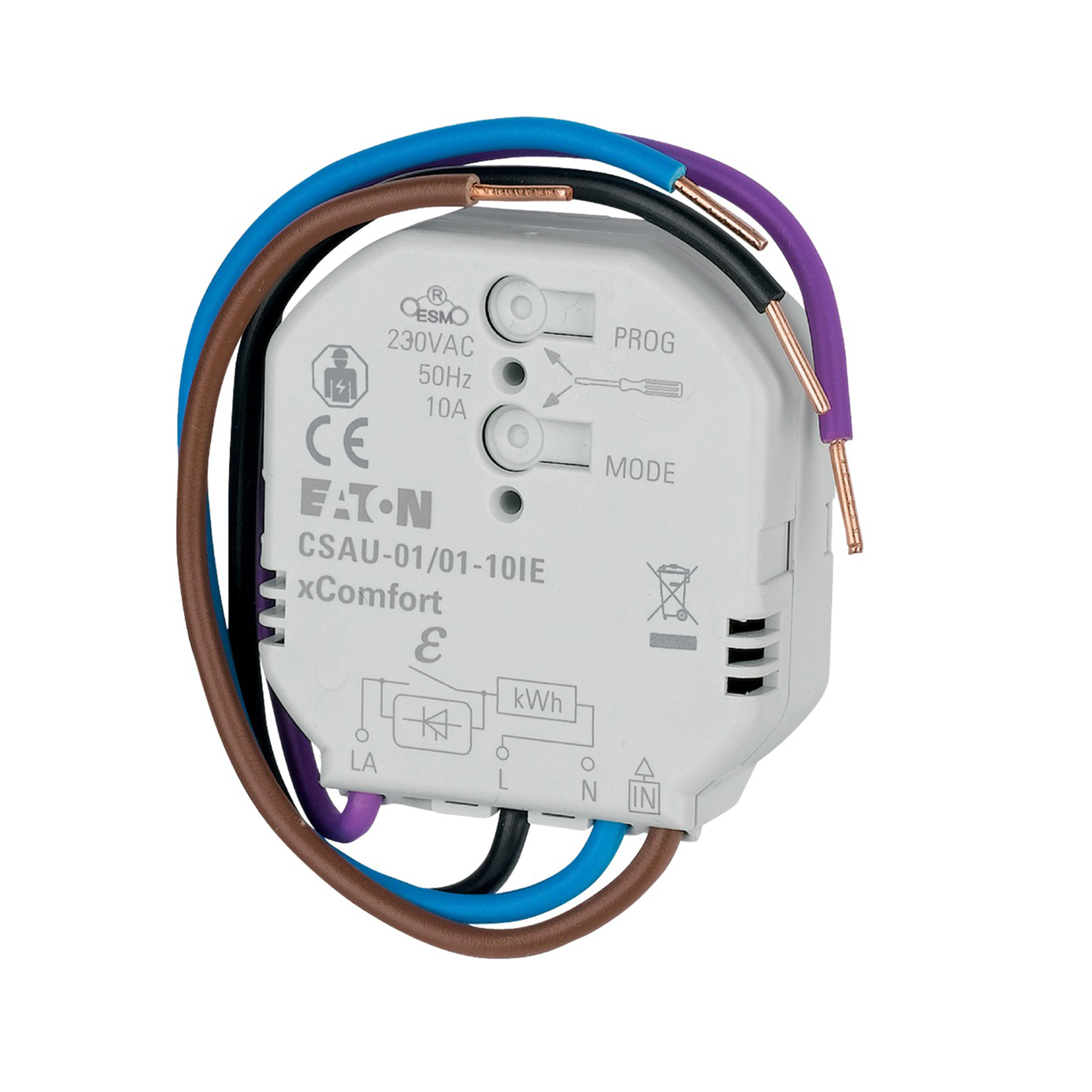

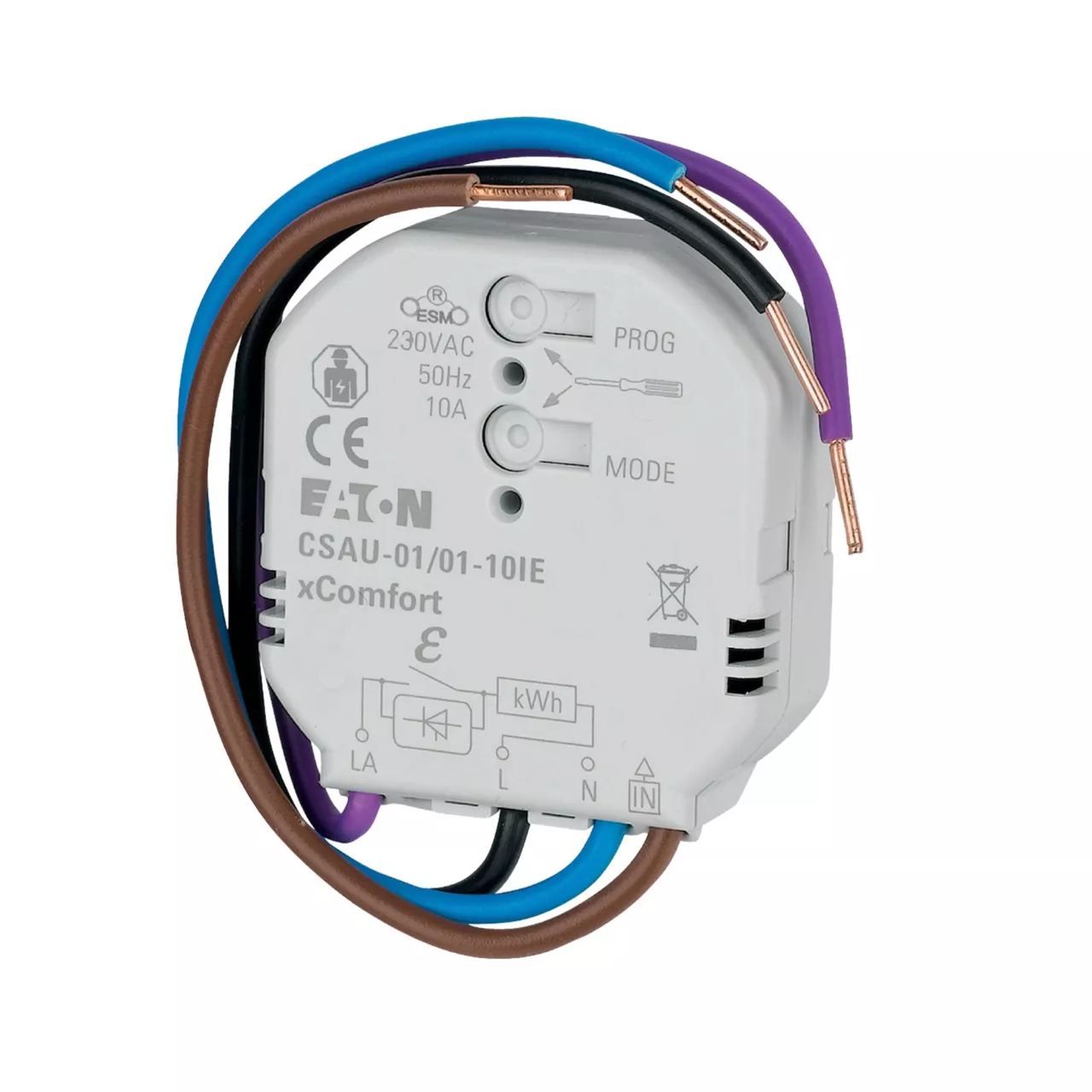

CSAU-01/01-10IE Odbiornik sterujący 10A z wej. bin. i pom. energii
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 172939 |
| GTIN(EAN) | 4015081695270 |
| Price unit | piece |
| Catalog price | 2 033,19 zł (1 653,00 zł + 23% VAT) |
| Sale price | from 494,44 zł / szt. (401,98 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Compacte schakelactor 230 VAC/10 A met lokale 230Vac-ingang en energiemeting. Eenvoudig te gebruiken met bestaande wandschakelaars, regelen van verlichting in trappenhuizen en gangen, schakelen van verlichting met bewegingssensoren en schemerschakelaars. Compact ontwerp voor installatie achter conventionele wandschakelaars, bewegingssensoren, wandcontactdozen of in muurinbouwdozen. Geschikt voor hoge schakelprestaties voor het schakelen van diverse belastingen zoals verlichting, ventilatie, verwarming, enz.. Net zoals een standaard binaire ingang kan de lokale ingang ook worden toegekend aan andere apparaten om stuursignalen te verzenden.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 41 g |
| Country of origin | Czechy |
| ETIM class: | Switch actuator for bus system |
| Bus system KNX: | no |
| Bus system KNX-RF (Radio Frequent): | no |
| Bus system radio frequent: | yes |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | xComfort |
| Radio frequent bidirectional: | yes |
| Mounting method: | Flush-mounted |
| Width in number of modular spacings: | 3 |
| Local operation/hand operation: | yes |
| With LED indication: | yes |
| Number of digital inputs: | 1 |
| Max. switching power: | 2 300 W |
| Max. switching power LED: | 0 W |
| Output power: | 2 300 W |
| Suitable for C-load: | yes |
| Max. number of switching contacts: | 1 |
| Max. switching current: | 10 A |
| Rated current: | 10 A |
| Rated operating voltage: | 230 - 230 V |
| Different phases connectable: | no |
| With bus connection: | yes |
| Bus module detachable: | yes |
| Min. depth of built-in installation box: | 18 mm |
| Modular expandability: | no |
| Degree of protection (IP): | IP20 |
| Power consumption: | 0,25 W |
