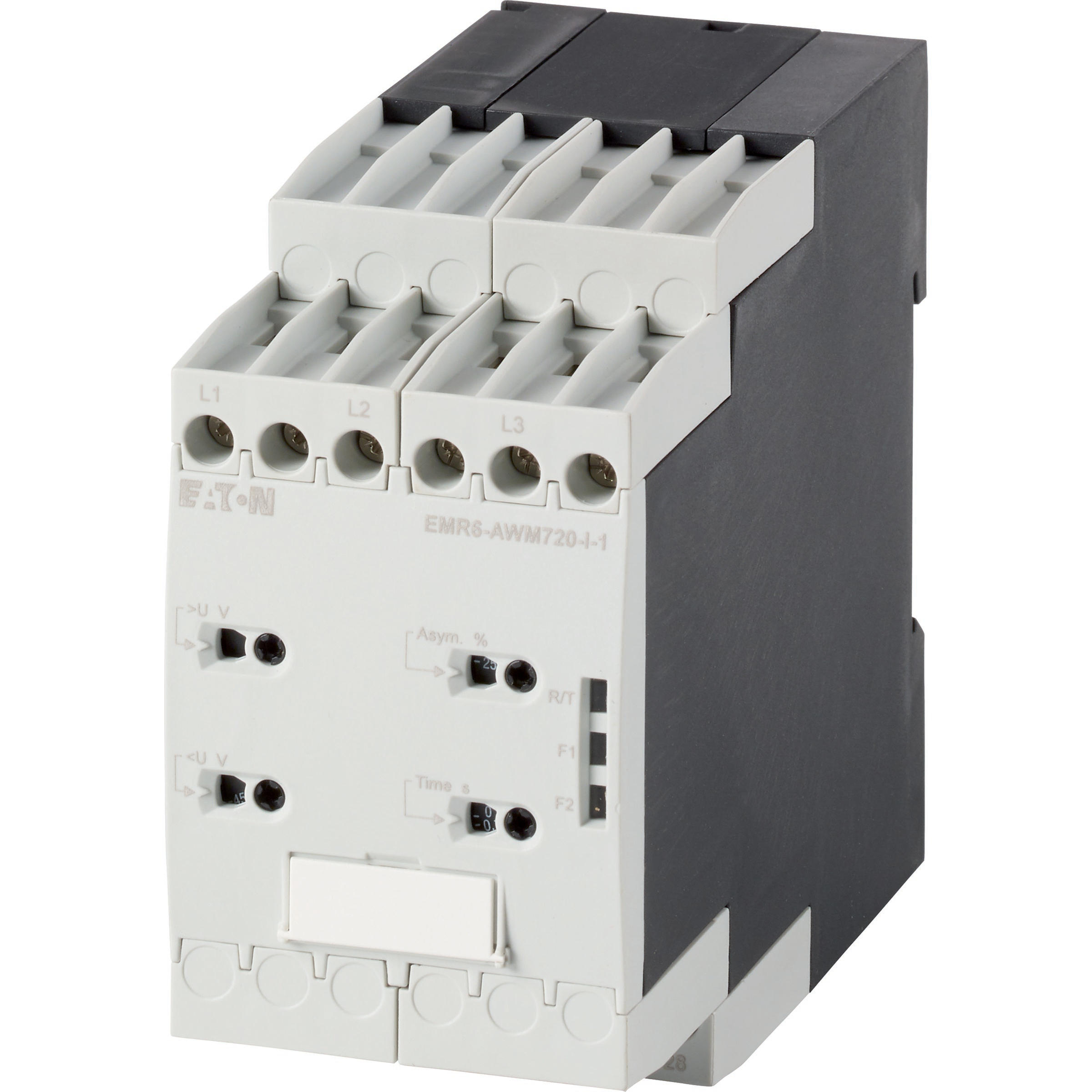

EMR6-AWM720-I-1 Przekaźnik monitorujący napięcie, wielofunkcyjny, 450 - 720 V AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184766 |
| GTIN(EAN) | 4015081788026 |
| Price unit | piece |
| Catalog price | 2 654,34 zł (2 158,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Fasebewakingsrelais, Productassortiment: EMR meet- en bewakingsrelais, Multifunctioneel, Voeding vanuit het meetcircuit, Aan-/uit-vertraging: geen = 0 of instelbaar tussen 0,1 - 30 s, Onbalansdrempelwaarden instelbaar 2 - 25 % van gemiddelde waarde van fasespanningen, Driefasige netwerken, Automatische fasevolgordecorrectie (kan worden uitgeschakeld), Monitoring voltage per fase: UN= 450 - 720 V AC, 50/60 Hz V AC, Bewaking van: fasevolgorde (kan uitgeschakeld worden), Fase-uitval, Overspanning, onderspanning, onbalans, Fasevolgorde, Voedingsspanning: 450 - 720 V AC, 50/60 Hz, Montagepositie: zoals vereist, Bevestiging: Klikbevestiging
Additional features:
| Information | Value |
|---|---|
| Net weight: | 160 g |
| Country of origin | Niemcy |
| ETIM class: | Phase monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Phase sequence monitoring: | yes |
| Phase failure detection: | yes |
| Function under voltage detection: | yes |
| Function over voltage detection: | yes |
| Phase imbalance monitoring: | yes |
| Min. adjustable delay-on energization time: | 0,1 s |
| Max. permitted delay-on energization time: | 30 s |
| Min. adjustable off-delay time: | 0,1 s |
| Max. permitted off-delay time: | 30 s |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Width: | 45 mm |
| Height: | 85,6 mm |
| Depth: | 107 mm |
| External power supply required: | no |
| Voltage type (supply voltage): | AC |
| Voltage type (operating voltage): | AC |
| Rated switch current: | 4 A |
