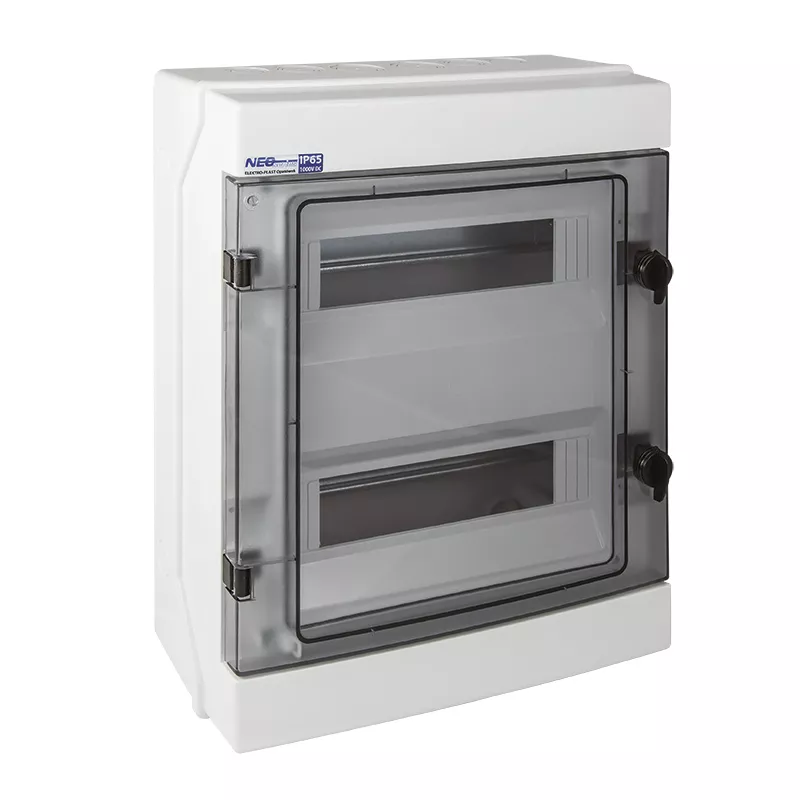

Rozdzielnica hermet. RH-24 (500V AC,1000V DC) biała

The RH "NEO" series hermetic switchboards, with a wide IP65 protection rating, are suitable for industrial and commercial applications. The channels are standardly mounted on a TH35 rail, and the terminal blocks are N and PE. The RH "NEO" switchboard is equipped with two protective devices, located in the enclosures and cover housings, as well as the external sealing of the cover and screens. The front of the switchboard has a door, either transparent or in the same color as the enclosure. The doors can be opened to the left or right by turning the hinges to the appropriate side, and can be locked using a metal lock with a key. The basic RH "NEO" series products are available in the following versions: RH-4, RH-6, RH-12, RH-18 – single-row, RH-24, RH-36 – double-row, RH-36, RH-54 – three-row, and RH-72 – four-row. The basic switchboards can be configured (combined) according to the customer’s needs; a special connector ensures aesthetics and airtightness of the connection.Markings: Switchboard versions with a metal key lock are marked with the letter – Z. White doors for the basic version of the housing (white) are marked with the letter – B. Gray versions are marked with the letter – S. Technical characteristics: - made of ABS material resistant to high temperatures up to 960°C (hot wire test - applies to the terminal strip) - operational stability from -25°C to +60°C - impact resistance (IK07 grade) - possibility of sealing the door.
