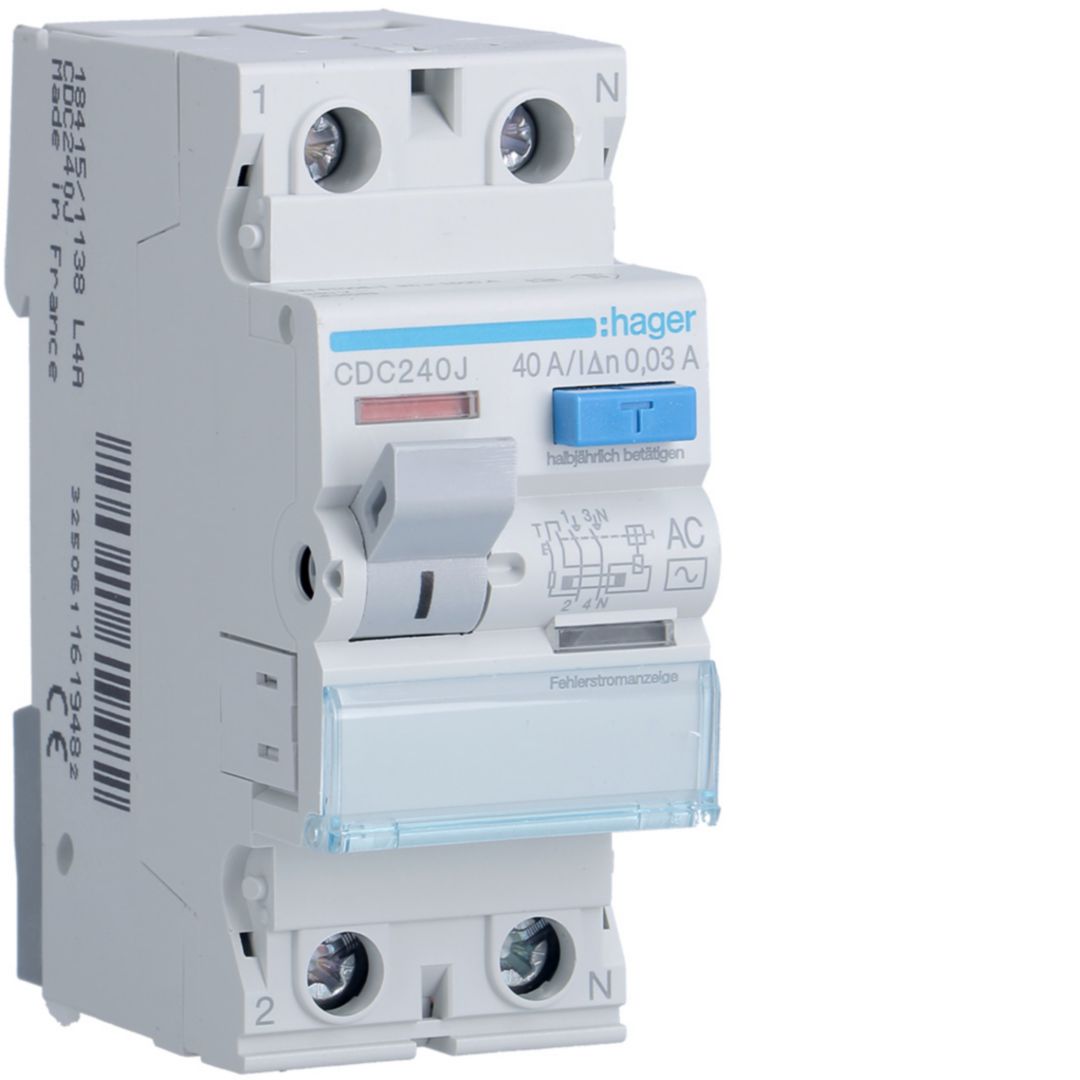

RCCB Wyłącznik różnicowoprądowy 1P+N 40A 30mA 6kA AC
| Information | Value |
|---|---|
| Supplier | HAGER POLO Sp. z o. o. (Berker) |
| Symbol | CDC240J |
| GTIN(EAN) | 3250611619482 |
| Price unit | piece |
| Catalog price | 306,27 zł (249,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Promocja Hager
Za zakup asortymentu firmy Hager odbierz jedną z nagród: organizer lub bluzę 4F.
-
Hager, Kontakt Simon, F&F - Razem na wiosnę - miksuj dowolnie
Kup produkty Hager, Kontakt Simon i F&F za kwotę 2000 zł netto i odbierz bezrękawnik
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 198 g |
| Country of origin | Francja |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Rated current: | 40 A |
| Selective protection: | no |
| Short-time delayed tripping: | no |
| With interlocking device: | yes |
| Short-circuit breaking capacity (Icw): | 6 kA |
| Connectable conductor cross section multi-wired: | 1 - 16 mm² |
| Number of poles: | 2 |
| Built-in depth: | 70 mm |
| Mounting method: | DIN rail |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
| Rated voltage: | 230 V |
| Surge current capacity: | 0,25 kA |
| Rated insulation voltage Ui: | 500 V |
| Frequency: | 50 Hz |
| Rated fault current: | 0,03 A |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Width in number of modular spacings: | 2 |
| Pollution degree: | 2 |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -25 - 40 °C |
| Leakage current type: | AC |
| Additional equipment possible: | yes |
| Explosion-proof: | no |
| Voltage type: | AC |
| RAL-number (similar): | 7 005 |
| Power loss: | 6,24 W |
